EMC VNX Series Hardware Information Guide

Eight- and sixteen-bus DAE cabling
EMC VNX8000 Hardware Information Guide 159
Slot 10 (sixteen-bus) configuration

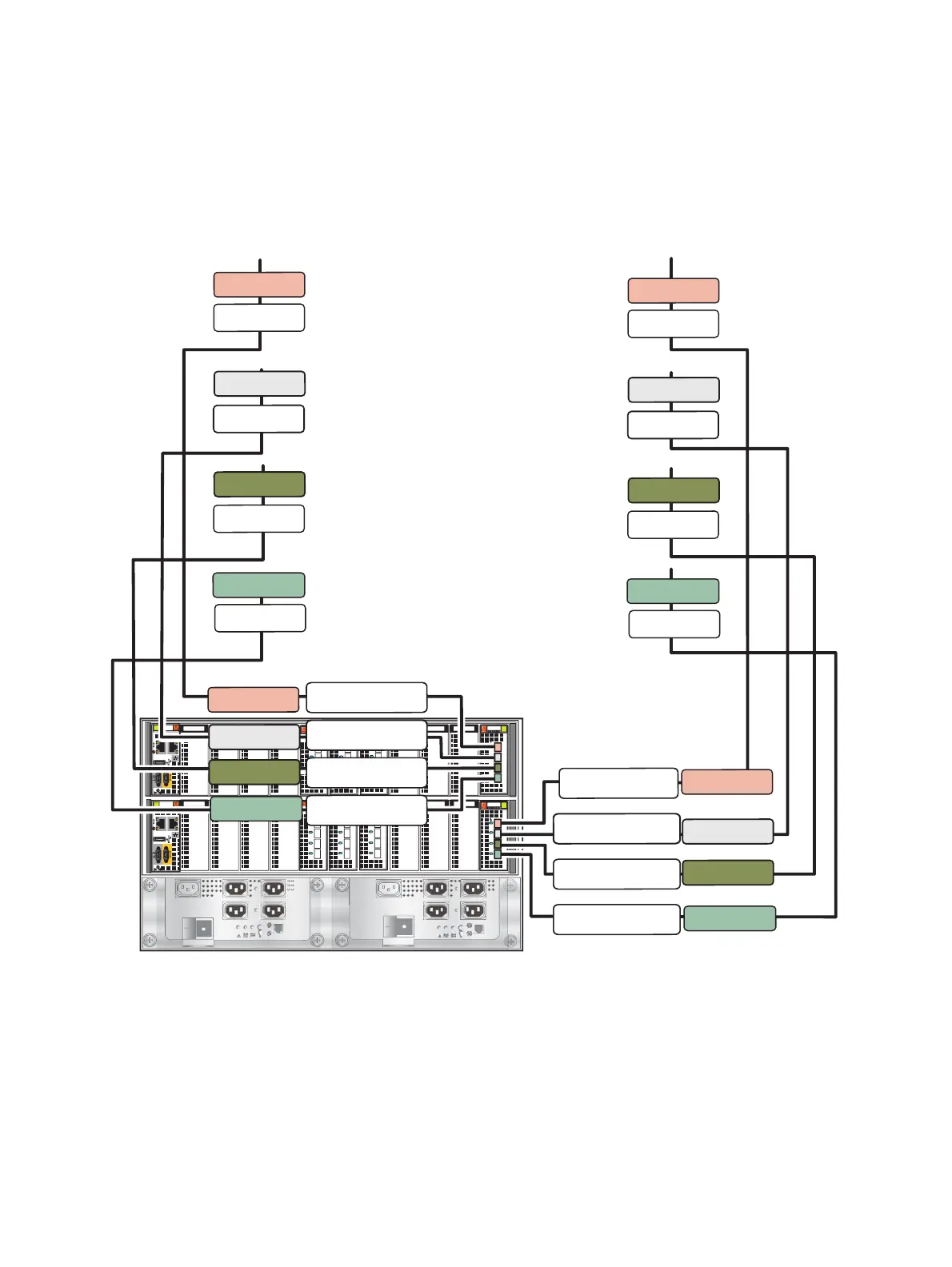

The following figure shows the location of the 6-Gb/s SAS I/O module slot (slot 10), the
I/O module port locations (0, 1, 2, and 3), and the cable labels for both the I/O module
side and the corresponding LCC side in the DAE it connects to (Figure 128). For more
information, refer to Table 56 on page 154.
Figure 128 Example continuation of a sixteen-bus factory version of a VNX8000 with the 6-Gb/s
SAS I/O module in slot 10
B
0123
A
0123
0123
0123
0123
0123
0123
0123
SP A SAS 10 Port 0
SP A SAS 10 Port 1
SP A SAS 10 Port 2
LCC A
A BE12
SP A SAS 10 Port 3
LCC A
A BE15
LCC A
A BE14
LCC A
A BE13
A BE12
A BE13
A BE14
A BE15
SP B SAS 10 Port 1
SP B SAS 10 Port 0
SP B SAS 10 Port 3
SP B SAS 10 Port 2
LCC B
B BE12
LCC B
A BE15
LCC B
B BE14
LCC B
B BE13
B BE12
B BE13
B BE14
B BE15
VNX-000830

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
