16 EMC VNX8000 Hardware Information Guide
System component description
Installing the SPS battery
To install the Li-ion SPS battery:
Attach an antistatic wrist strap to your wrist and connect its cord to a known ground.
1. If the SPS battery shipped separately (SPS enclosure wheel latch indicator red),
position the battery with the LED indicator on the right and slide it into the SPS
enclosure (see location 1 in Figure 5).
2. “Park” the battery by lifting the wheel latch up on the SPS enclosure and pushing the
battery completely into the SPS enclosure slot (see location 2 in Figure 5).
The SPS battery will click into place and the wheel latch indicator will be yellow.
3. “Engage” the SPS battery by pressing the wheel latch while pushing the SPS battery
further into the SPS enclosure slot (see location 2 in Figure 5)
The SPS battery will click into the final position and the wheel latch indicator will be
green (see location 3 in Figure 5).

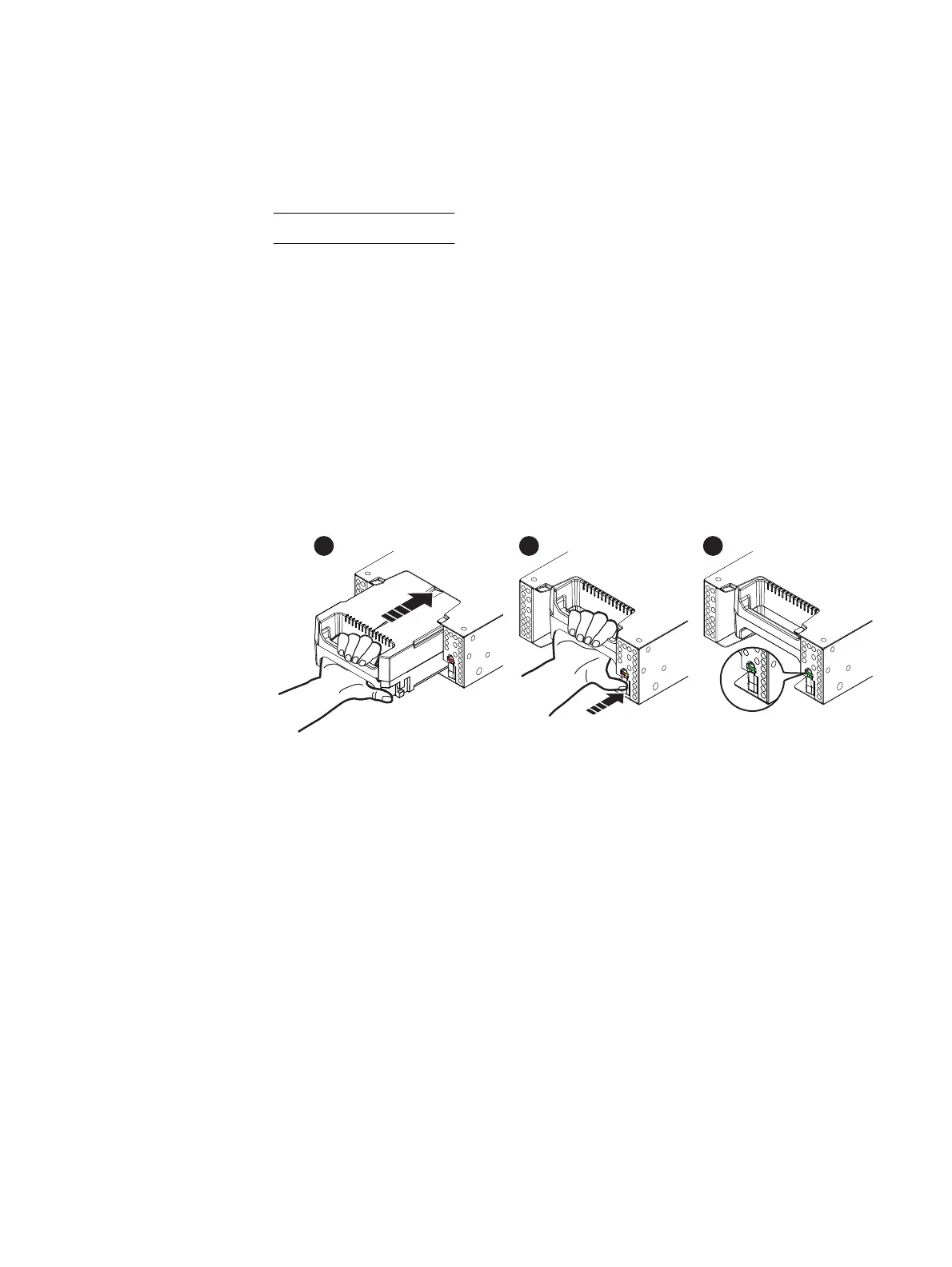

Figure 5 Example of installing the SPS Li-ion battery
SYM-002699
321
