EMC VNX Series Hardware Information Guide

Eight- and sixteen-bus DAE cabling
EMC VNX8000 Hardware Information Guide 163
Slot 5 (eight-bus) configuration

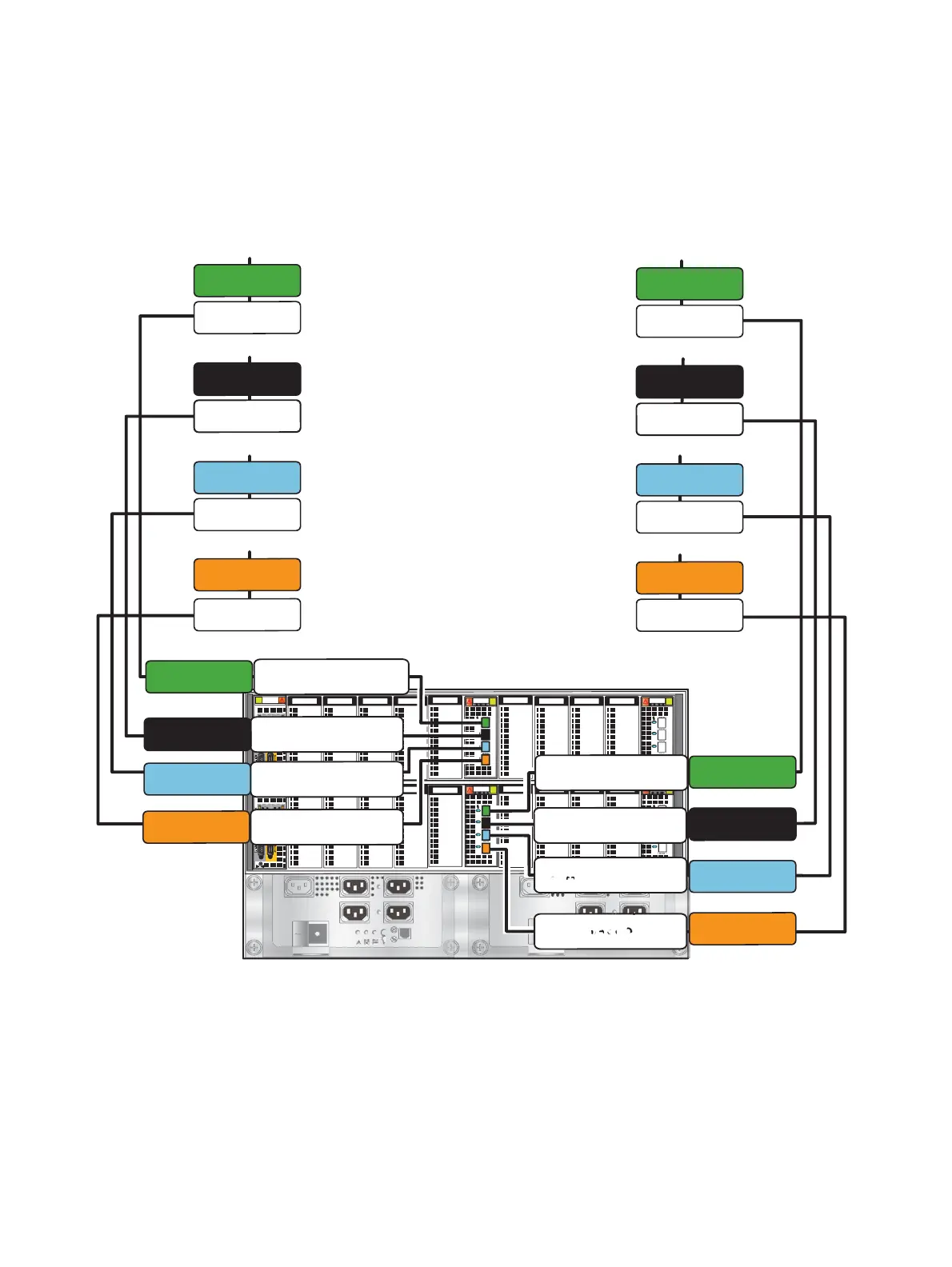

The following figure shows the location of the 6-Gb/s SAS I/O module slot (slot 5), the I/O
module port location (0, 1, 2, and 3), and the cable labels for both the I/O module side
and the corresponding LCC side in the DAE it connects to (Figure 131). For more
information, refer to Table 57 on page 162.
Figure 131 Example of an eight-bus configuration of a VNX8000 with the 6-Gb/s SAS I/O module in
slot 5
B
0123
0123
0123 0123
A
SP B SAS 5 Port 0
SP B SAS 5 Port 3
B BE3
LCC B
B BE2
LCC B
B BE1
LCC B
B BE0
LCC B
B BE3
SP B SAS 5 Port 2
B BE2
SP B SAS 5 Port 1
B BE1
B BE0
SP A SAS 5 Port 3
SP A SAS 5 Port 1
SP A SAS 5 Port 0
LCC A
A BE1
LCC A
A BE3
LCC A
A BE0
A BE0
A BE1
A BE3
SP A SAS 5 Port 2
A BE2
LCC A
A BE2
VNX-000825

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
