EMC VNX Series Hardware Information Guide

Eight- and sixteen-bus DAE cabling
EMC VNX8000 Hardware Information Guide 167
Slot 6 (sixteen-bus) upgraded configuration
The following figure shows the location of the 6-Gb/s SAS I/O module slot (slot 6), the I/O
module port location (0, 1, 2, and 3), and the cable labels for both the I/O module side
and the corresponding LCC side in the DAE it connects to (Figure 134). For more
information, refer to Table 57 on page 162.

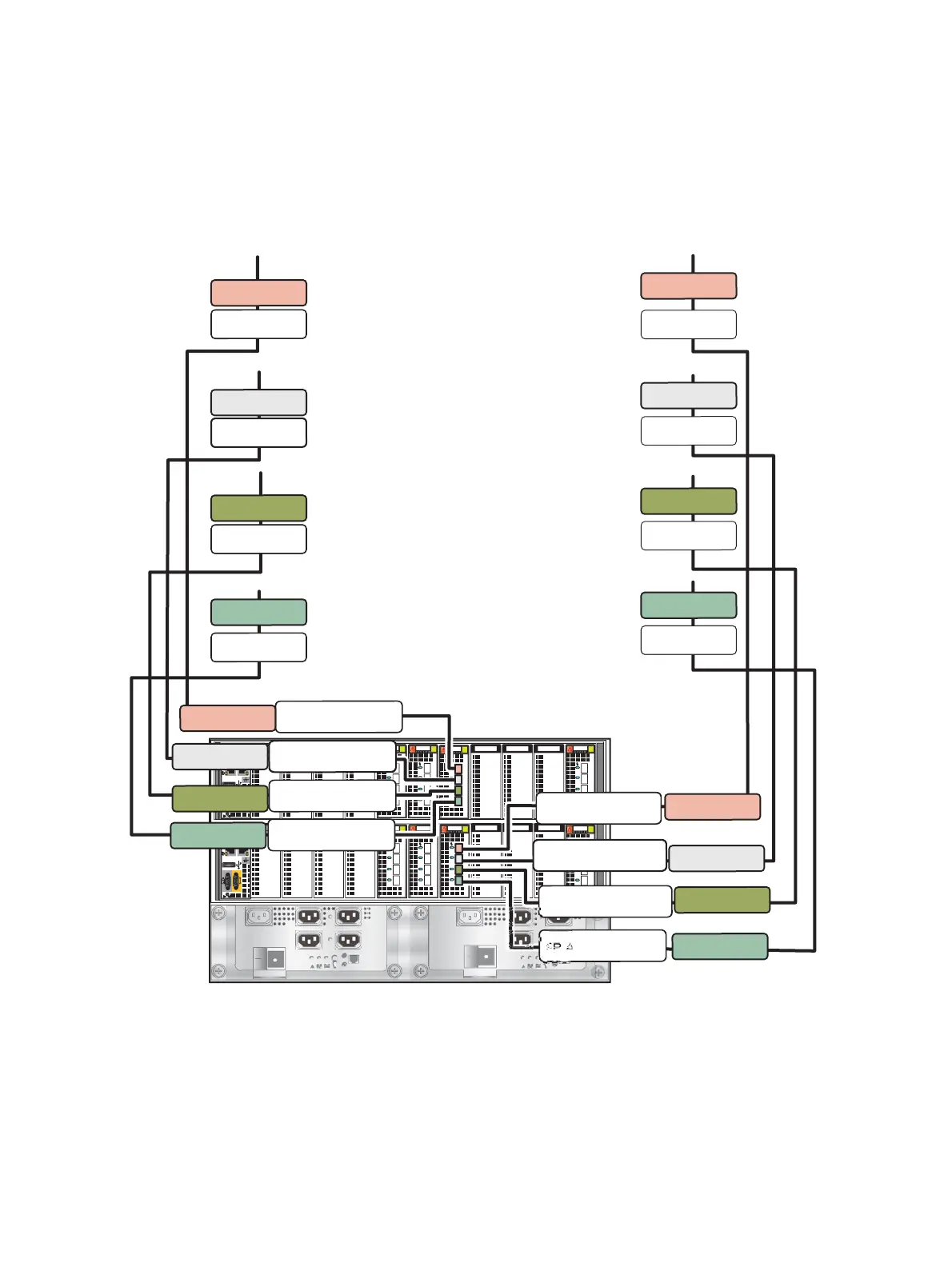

Figure 134 Example continuation of a sixteen-bus upgrade configuration of a VNX8000 with the
6-Gb/s SAS I/O module in slot 6
0123
0123
0123
0123
0123
B
0123
A
0123
0123
SP A SAS 6 Port 1
SP A SAS 6 Port 2
LCC A
SP A SAS 6 Port 3
LCC A
LCC A
LCC A
A BE13
A BE14
A BE15
LCC B
LCC B
SP B SAS 6 Port 0
SP B SAS 6 Port 3
SP B SAS 6 Port 2
LCC B
A BE12
SP A SAS 6 Port 0
A BE13
A BE14
A BE15
A BE12
B BE14
B BE15
B BE12
B BE14
B BE15
B BE12
SP B SAS 6 Port 1
B BE13
LCC B
B BE13
VNX-000832
