EMC VNX Series Hardware Information Guide

24 EMC VNX8000 Hardware Information Guide
System component description
Data Mover enclosure front view
The front of the File/Unified VNX8000 platform 2U Data Mover enclosure (DME) contains
two enclosure status LEDs (power and fault), as shown in Figure 10.
Note: Figure 10 is a graphical representation of the File/Unified VNX8000 platform 2U
Data Mover enclosure with four power supply/cooling (fan) modules and two CPU
modules installed.

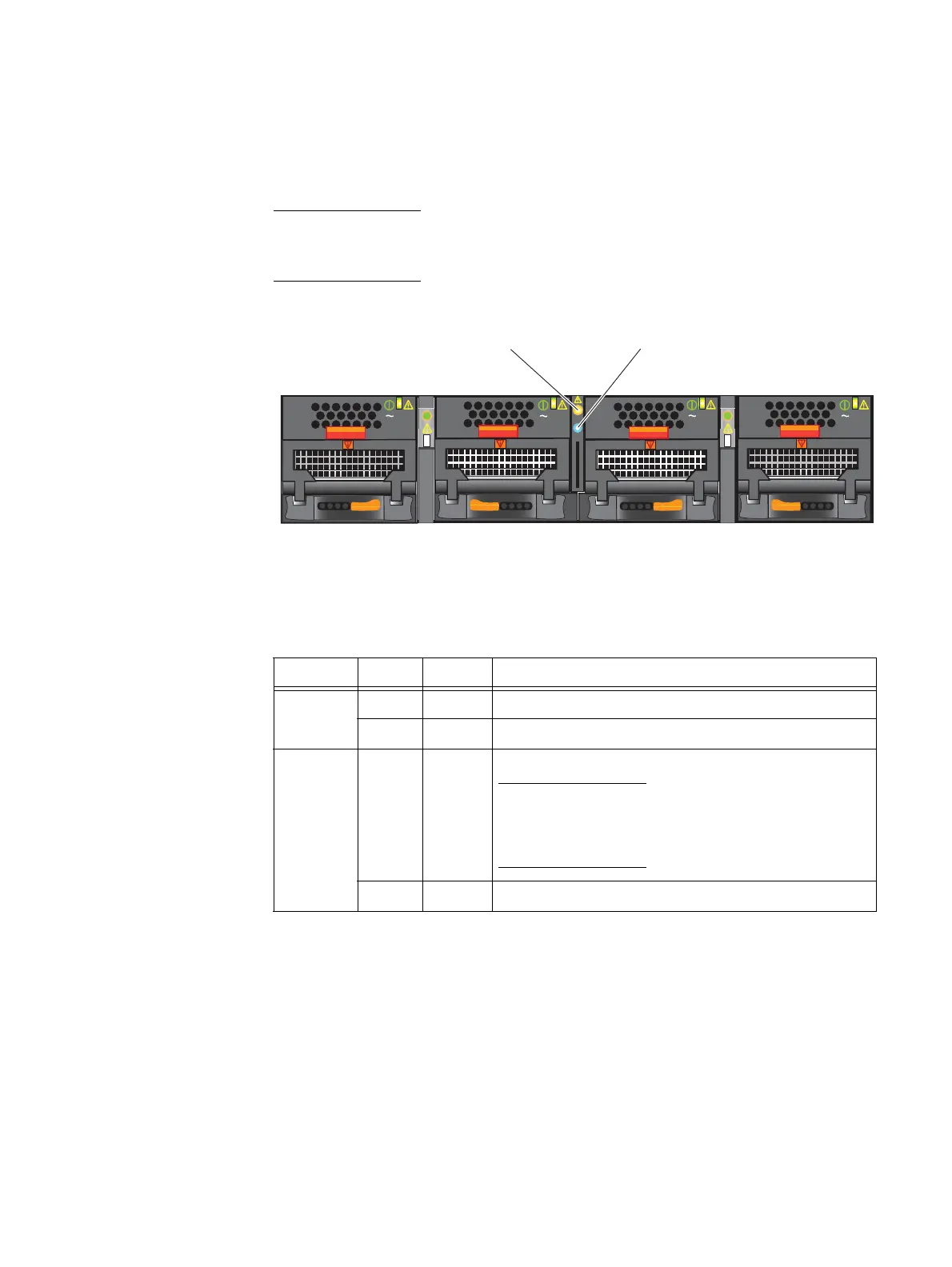

Figure 10 Data Mover enclosure status LEDs
Table 6 describes the 2U Data Mover enclosure status (power and fault) LEDs.
AC
AC
AC
AC
Data Mover enclosure
fault LED
Data Mover enclosure
power LED
CNS-001667
Table 6 DME status LEDs
LED Color State Description
Power Blue On Data Mover enclosure is powered up, operating normally
— Off Data Mover enclosure is powered down.
Fault Amber On A replaceable component failed within the enclosure.
Note: When the enclosure fault LED is amber, look for the
replaceable component within the enclosure that is causing
the fault. Refer to the other status LED definitions in this
section to determine which replaceable component failed.
— Off Data Mover enclosure operating normally.

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
