System component description
EMC VNX8000 Hardware Information Guide 29
SPS LEDs

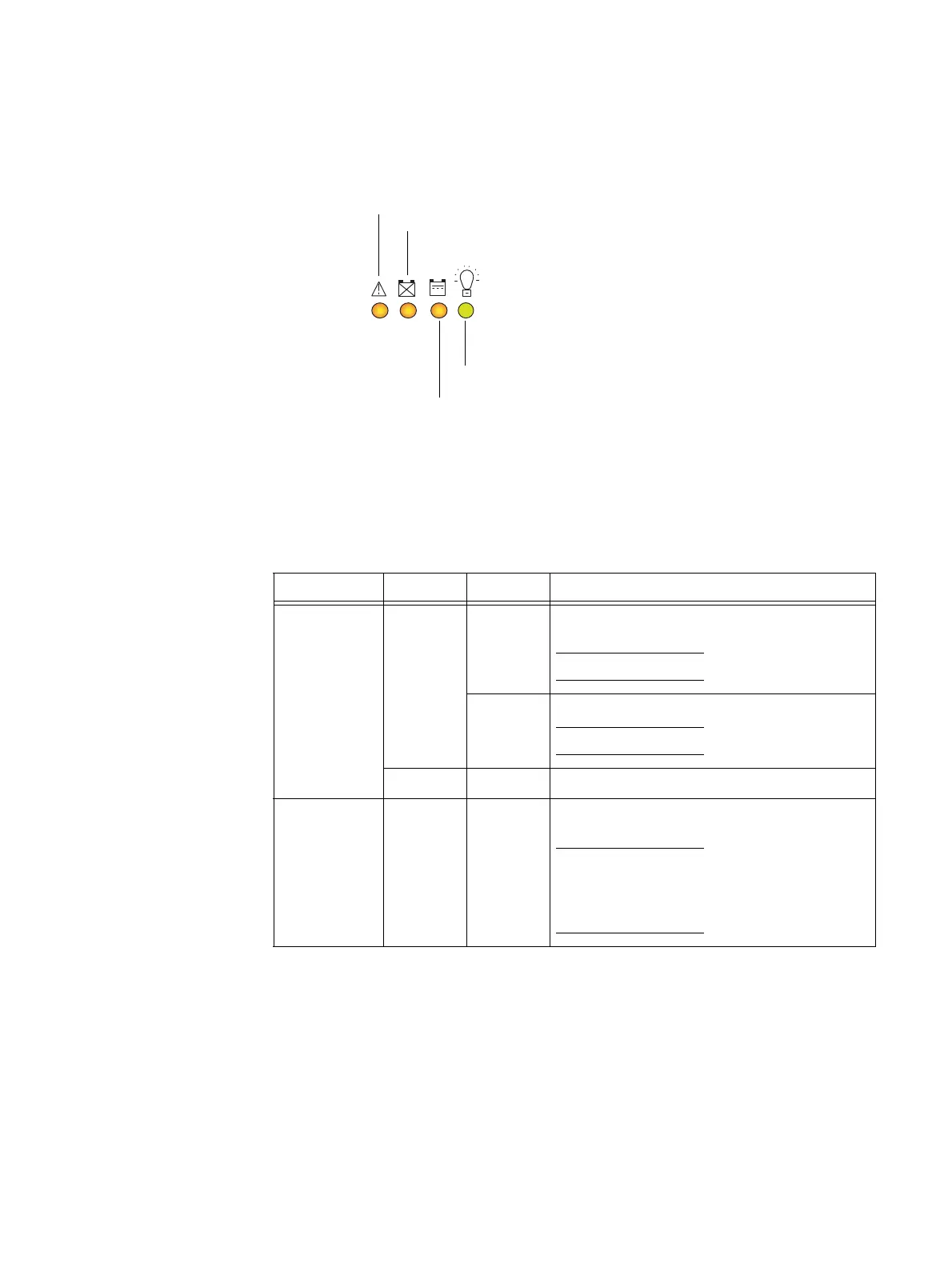

Figure 14 shows the LEDs located on each SPS (A and B)
Figure 14 SPS LEDs
Table 9 describes the rear panel SPS LEDs.
On-line power
On battery
No battery
SPS internal fault
VNX-000568
Table 9 SPS LEDs description
Led Color State Description
On-line power Green On SPS ready and operating normally; battery fully
charged
Note: Off when any amber LED is on.
Blinking On/battery charging
Note: Off when any amber LED is on.
Off Off/disconnected
On battery Amber On AC line power is no longer available and the SPS is
supplying DC output power from the battery.
Note: When battery power comes on, and no other
online SPS is connected to the SP, the system writes
all cached data to disk, and the event log records
the event.
