Storage processor management module LEDs

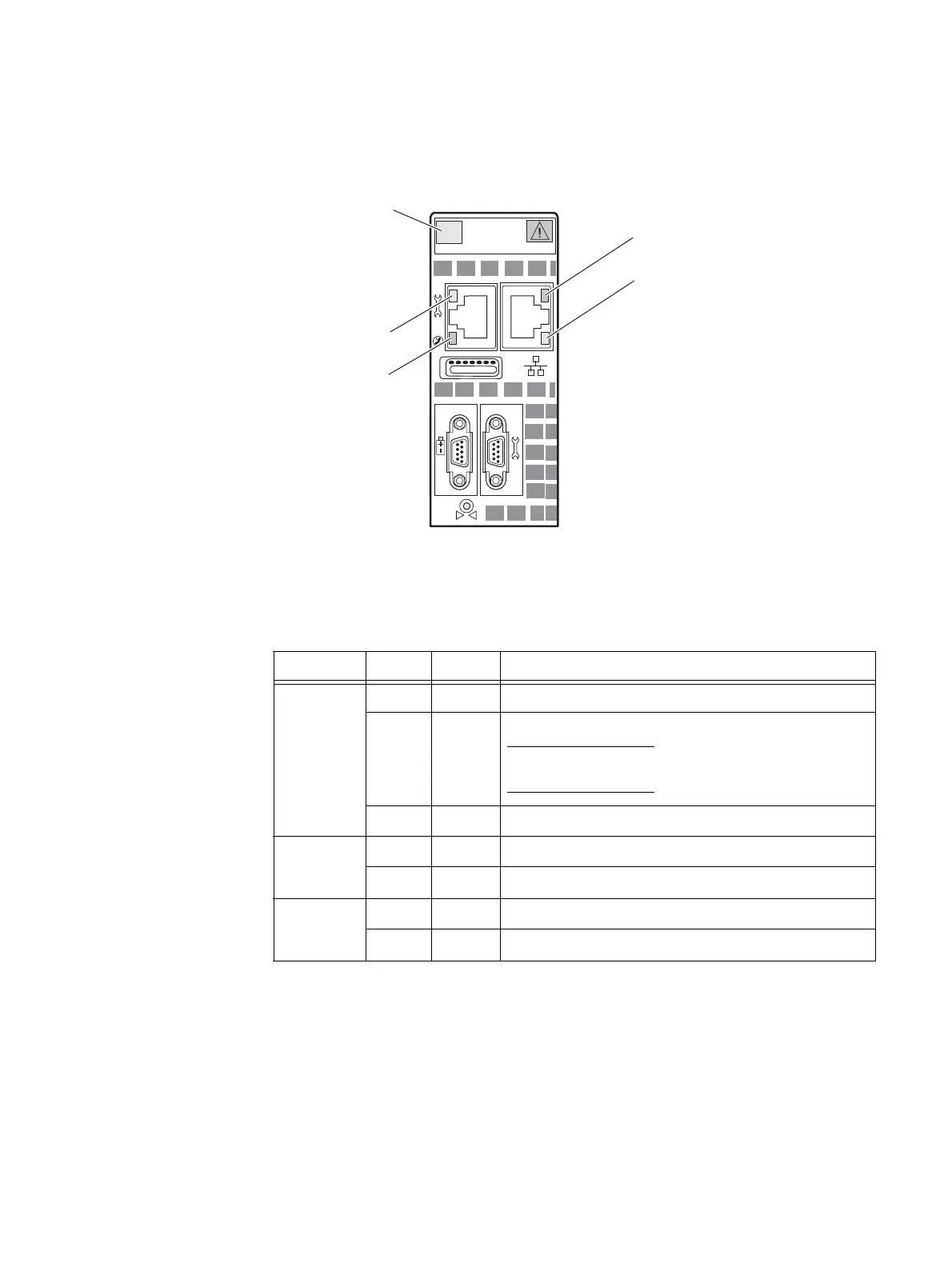

Figure 20 shows the LEDs and Table 11 describes them.
Figure 20 SP management module LEDs
SP management module serial console (DB-9) socket connector
The back of the VNX8000 platform SP management module includes two standard serial
console Electronics Industries Association (EIA) RS-232 interface (DB-9) socket
connectors (one labeled with a symbol depicting a wrench on the right and the other
depicting a battery on the left). Notice the orientation of the pins (Figure 21).
Service laptop port
(Link LED)
Power/Fault LED
Management por
t
(Activity LED)
Management por
t
(Link LED)
Service laptop port
(Activity LED)
VNX-000584
Table 11 SP management module LEDs
LED Color State Description
Power/Fault Green On SP management module is powered up.
Amber On SP management module has faulted.
Note: LED is always illuminated at powerup, until it is
initialized.
— Off SP management module is powered down.
Link (each
port has
one)
Green On Network connection
— Off No network connection
Activity
(each port
has one)
Amber Blinking Transmit/receive activity
— Off No network activity

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
