42 EMC VNX8000 Hardware Information Guide
System component description
Data Mover enclosure rear view
The rear of the File/Unified VNX8000 platform Data Mover enclosure (DME) does not
contain any LEDs (Figure 29). Only the Data Mover management module and the I/O
modules have LEDs.
Note: Figure 29 is a graphical representation of the rear view of a File/Unified VNX8000
platform with a DME having two Data Movers (each Data Mover shows one management
module, one four-port 8-Gb/s FC I/O module, and four filler panel modules).

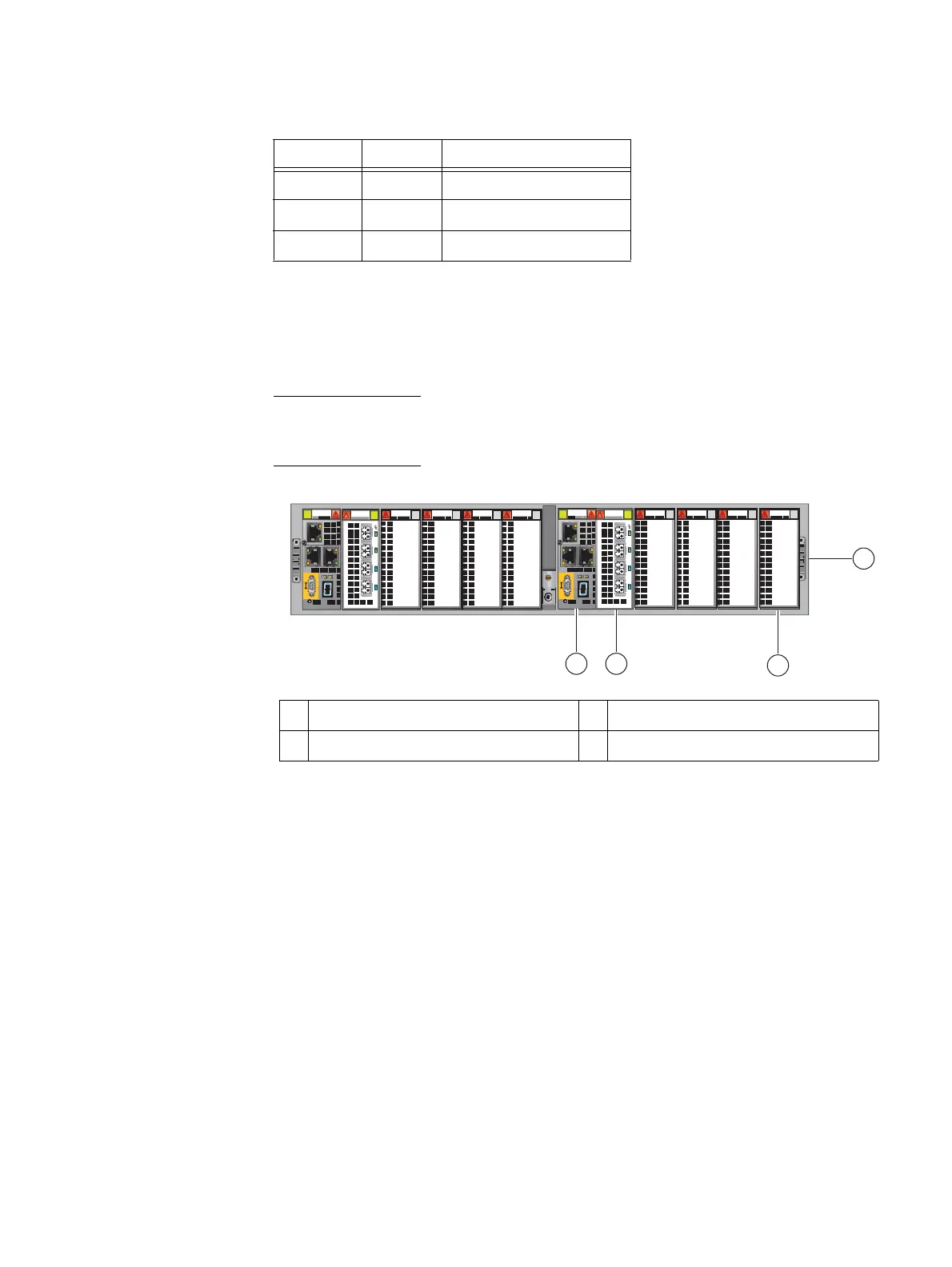

Figure 29 Example of a DME (rear view)
Data Mover management module
The Data Mover management module provides the management connections via three
10/100/1000 Ethernet (RJ-45) ports. The Data Mover management module also includes
one RS-232 (EIA) DB-9 serial socket connector for service laptop connection and several
LEDs (Figure 30 on page 43).
7 RTS Request to send
8 CTS Clear to send
9 RI Ring indicator (not used)
Table 17 Control Station modem (DB-9) plug connector pinout
DB-9 Pin Signal Description
1 Data Mover enclosure 3 Four-port 8-Gb/s FC I/O module
2 Filler panel module 4 Data Mover management module
