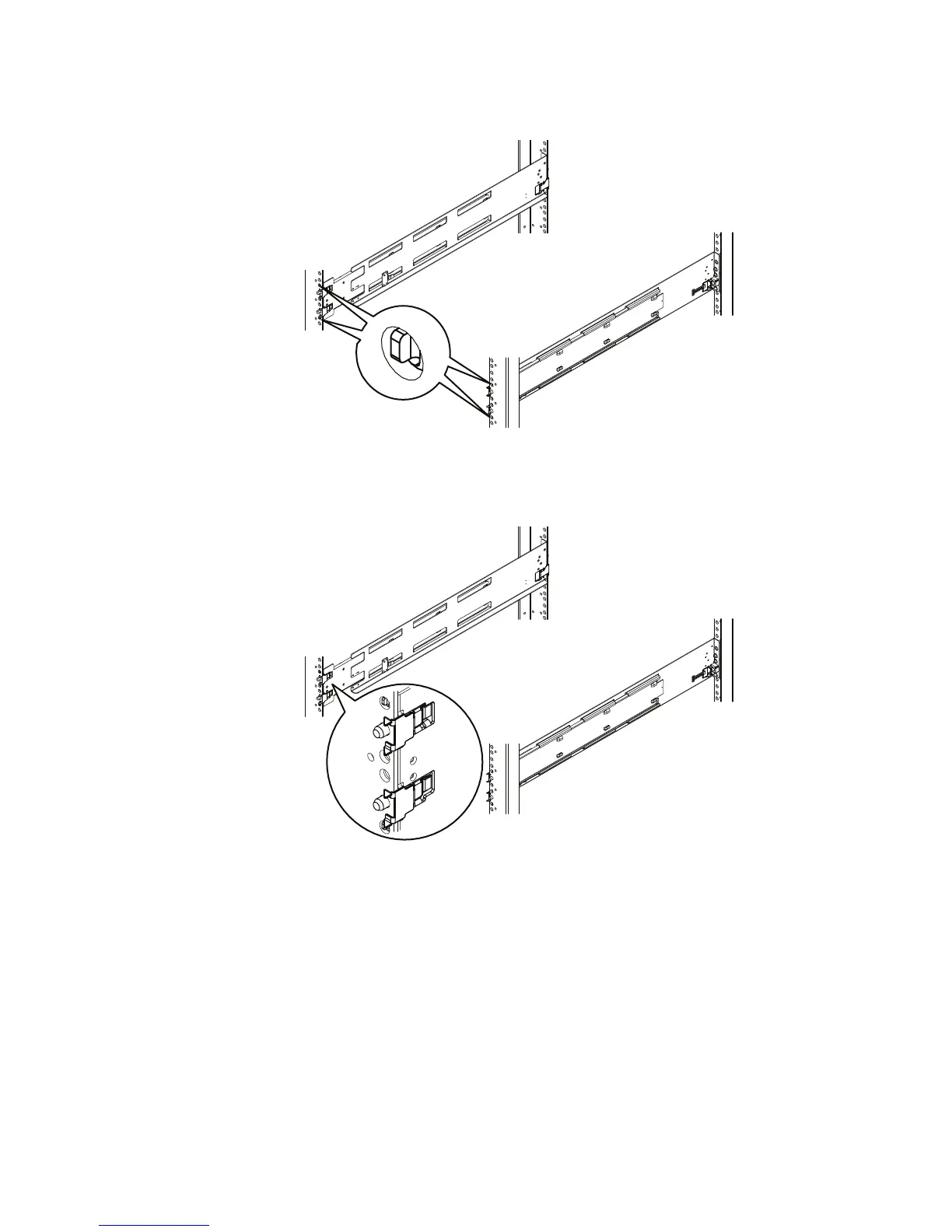

Figure 2 Aligning the Key Tabs
CL5578
2. Holding the rail extended, push the key tabs and the adaptors into the rear mounting
holes until the spring clips snap into place on the outside of the rear rack channel.
Figure 3 Aligning the Rear Adaptors
CL5579
3. Pull the rail forward and align the adaptor with the mounting hole on the front rack
channel. Make sure the rail is level.
