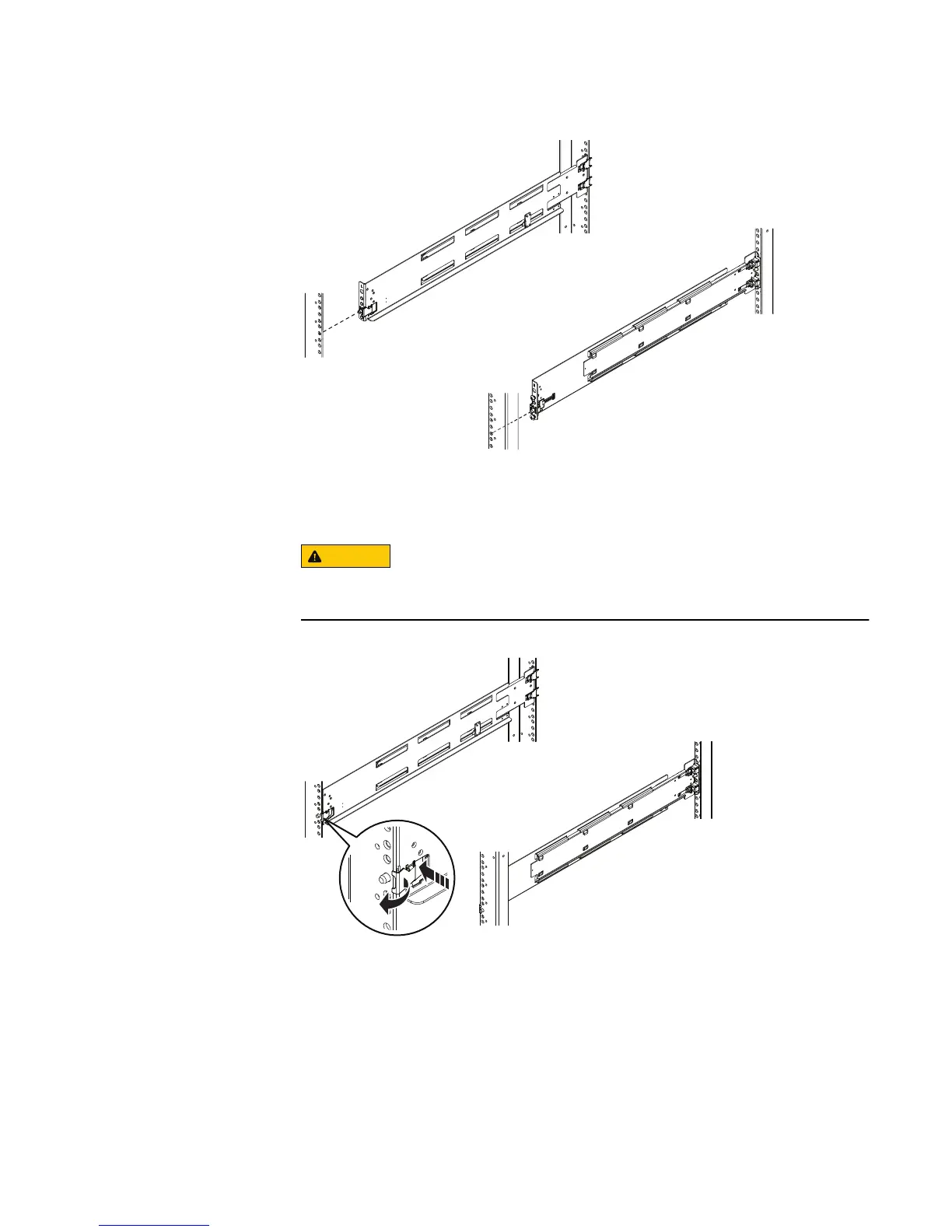

Figure 4 Aligning Front Adaptor
CL5581
4. Push in on the spring clip while pulling forward on the rail. When the spring clip is
forward of the front rack channel, and the adaptor is in the mounting holes, release
the spring clip so it holds the rail in place.
CAUTION
Make sure the spring clip is securely attached to the channel. It may be necessary to
push in on the clip to assist in snapping it into place.
Figure 5 Securing the Spring Clips
CL5582
5. From the rear of the rack, secure the rail in place using one M5 screw.
Rack and install
Installing Snap-in Rails 19
