Note: The first DAE connection comes from these 6-Gb/s mini-SAS HD ports. This
connection uses a 36-pin mini-SAS HD small form-factor 8644 (SFF-8644) specification
connector (plug) with a pull (release) tab on one end (see Figure 13 on page 29) to a
26-pin mini-SAS small form-factor 8088 (SFF-8088) specification connector (plug) with a
pull tab on the other end cable.
The following illustration shows an example of the 6-Gb/s mini-SAS HD connector (socket)
and pinout.

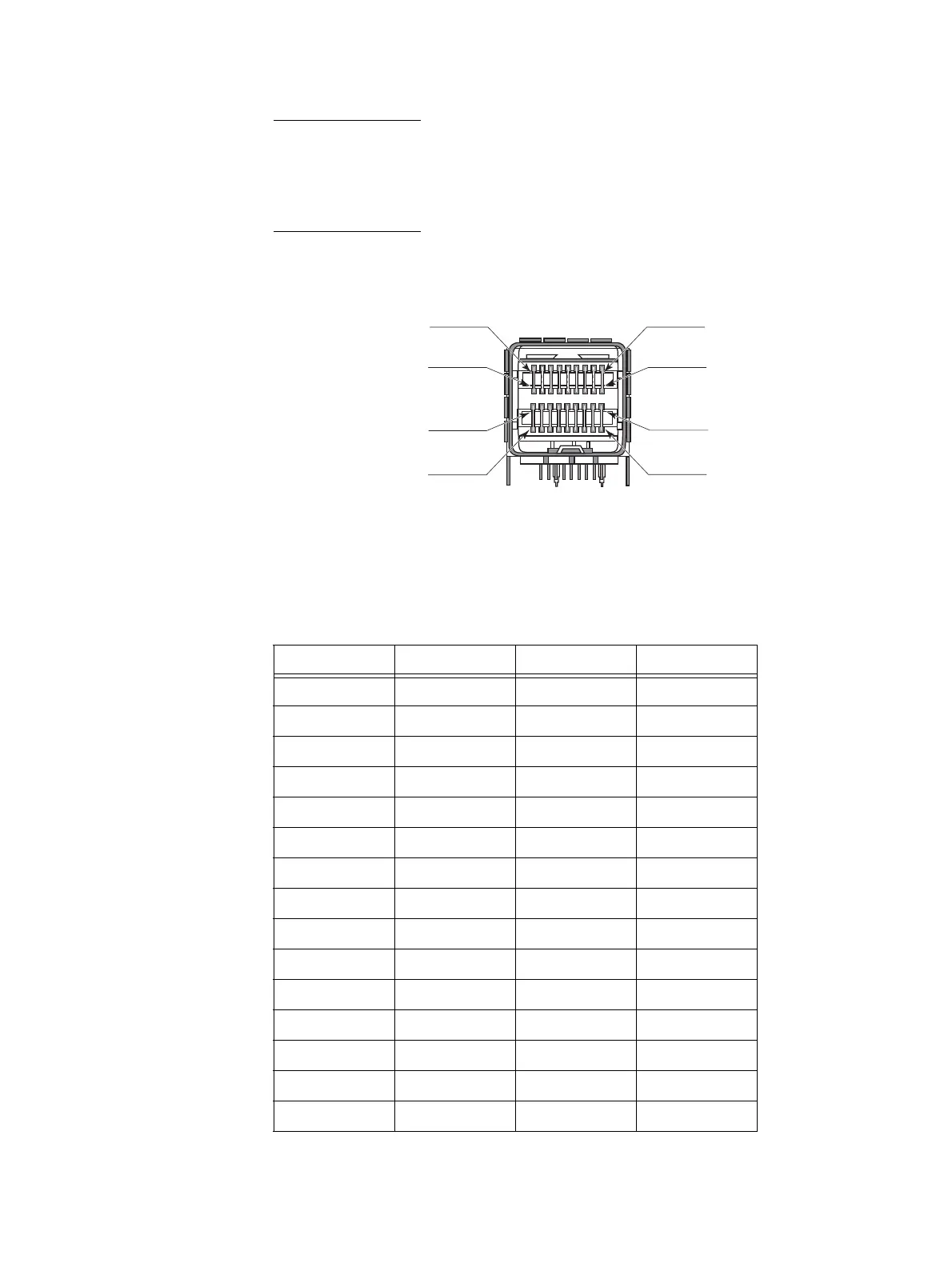

Figure 12 6-Gb/s mini-SAS HD port connector (socket) and pinout
The following tables list the 6-Gb/s mini-SAS HD port pin signals used on the connector
and define the connection requirements of the signal.
D9
C9
B9
A9
D1
C1
B1
A
1
VNXe-000510
Table 9 6-Gb/s mini-SAS HD port connector pinout
Pin Signal Pin Signal
A1 Reserved C1 SCL
1
A2 Intl
1
C2 SDA
1
A3 Signal GND C3 Signal GND
A4 Rx 1- C4 Tx 1+
A5 Rx 1+ C5 Tx 1-
A6 Signal GND C6 Signal GND
A7 Rx 3+ C7 Tx 3+
A8 Rx 3- C8 Tx 3-
A9 Signal GND C9 Signal GND
B1 Vact
1
D1 Vact
1
B2 ModPrsL
1
D2 Vman
1
B3 Signal GND D3 Signal GND
B4 Rx 0+ D4 Tx 0+
B5 RX 0- D5 Tx 0-
B6 Signal GND D6 Signal GND
