System component description
EMC VNX5400 Hardware Information Guide 33

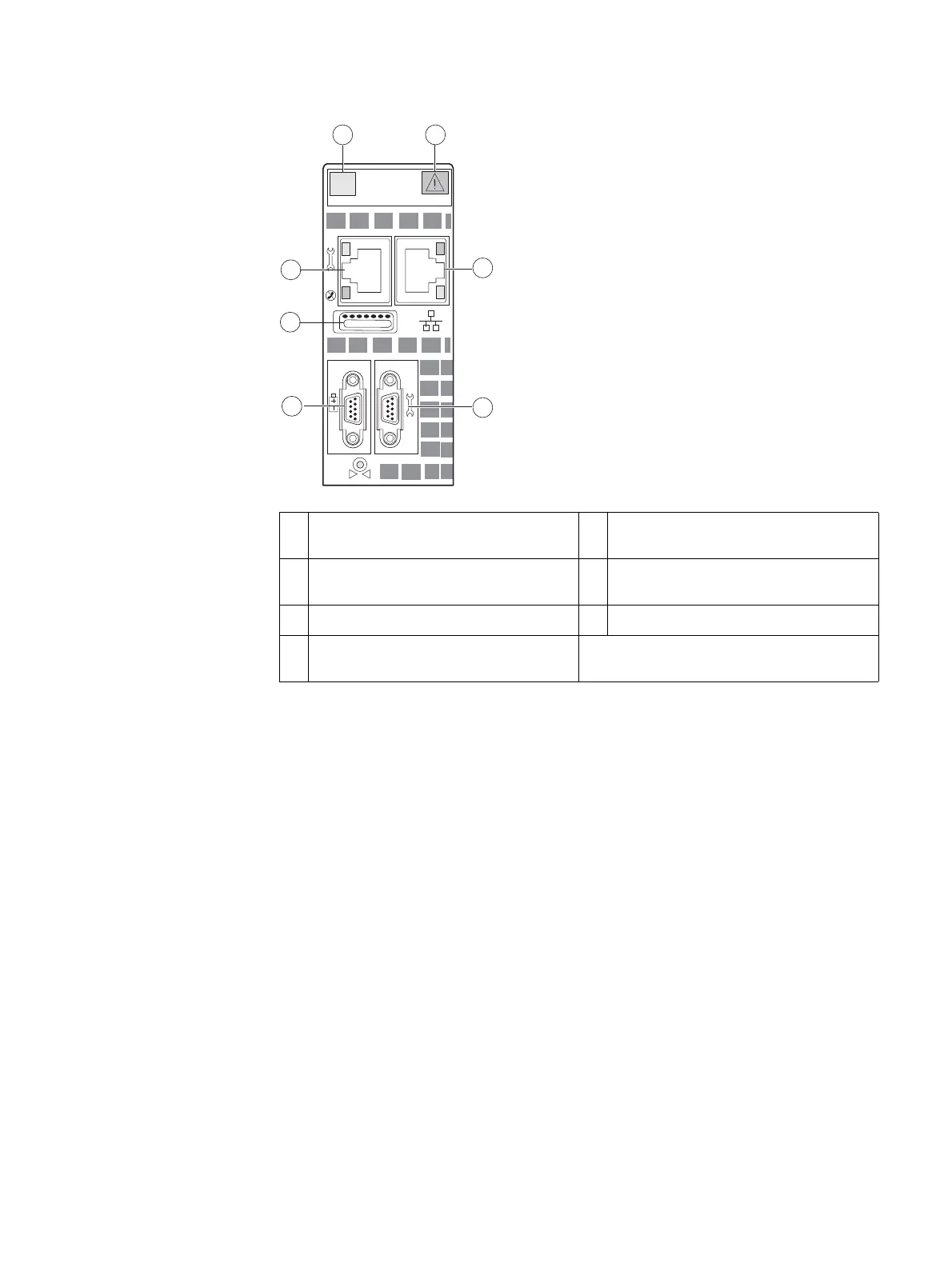

Figure 16 SP management module
Storage processor management module Ethernet (RJ-45) ports
The VNX5400 platform storage processor (SP) management module comes with two
integrated dual-port Ethernet ports (labeled with a symbol depicting a wrench and the
other depicting network management) on the rear of the management module. The SP
management port provides an interface for connecting a 10-, 100-, or 1000-Mb/s cable to
the LAN providing full-duplex (FDX) capability, which enables simultaneous transmission
and reception of data.
To access the SP management port, connect a Category 3, 4, 5, 5E, or 6 unshielded
twisted-pair (UTP) cable to this RJ-45 modular jack connector on the back of the SP
management module, as described in Table 15 on page 37.
Since the 1U Control Station and the management module have the same type of
management (RJ-45) ports, “Control Station Ethernet (RJ-45) ports” on page 37 provides
detailed information about the SP management module ports, connector, and adapter.
1 Power/fault LED 5 DB-9 serial console socket connector
(SPS); not used in the VNX5400 platform
2 SP management module push button latch
handle
6 USB port; not used
3 RJ-45 Ethernet port (management) 7 RJ-45 Ethernet port (service laptop)
4 DB-9 serial console socket connector
(service laptop)
1
2
3
5
7
4
VNX-000583
6
