EMC2 VNX Series Hardware Information Guide

34 EMC VNX5400 Hardware Information Guide
System component description
Storage processor management module LEDs

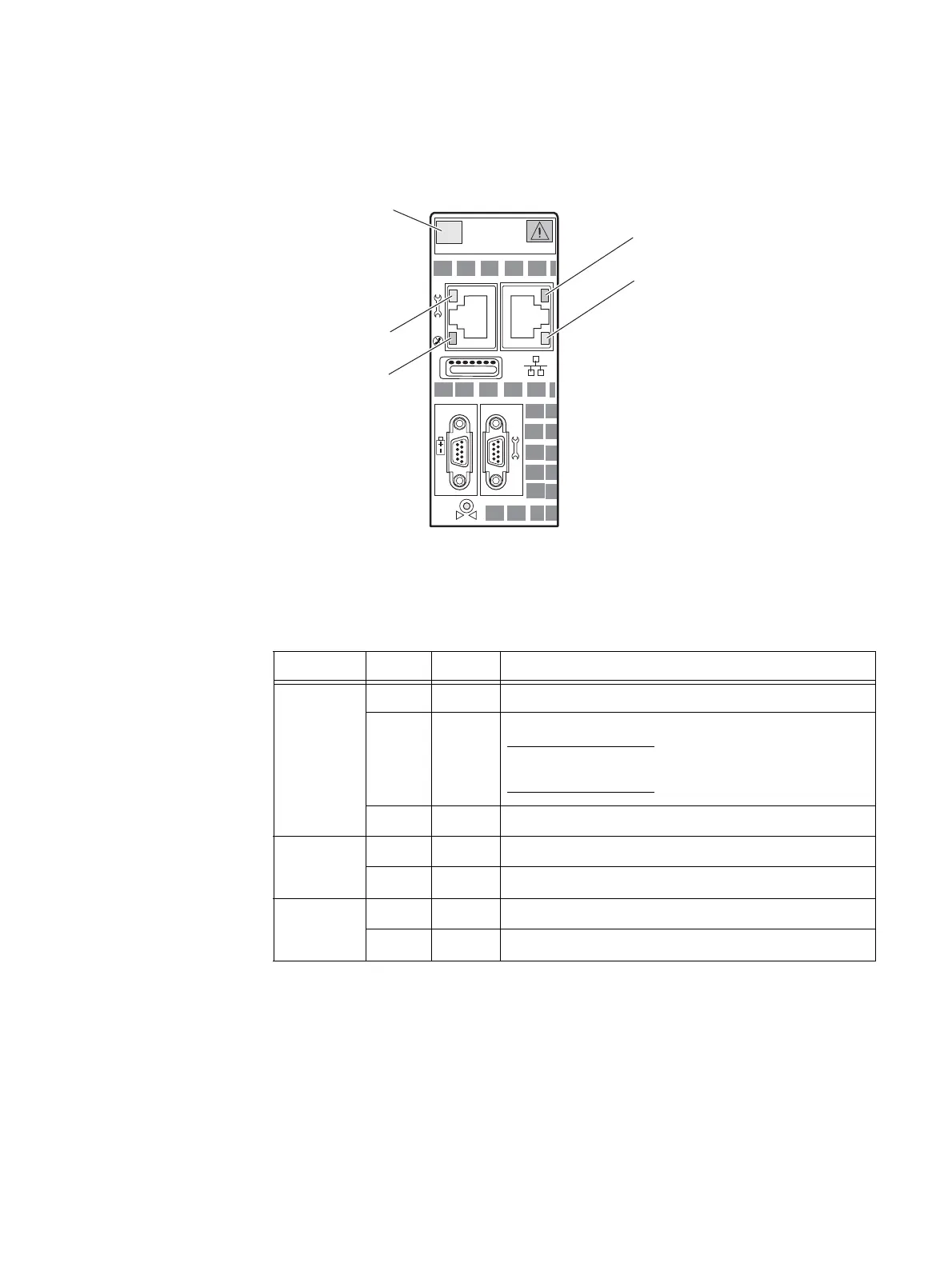

Figure 17 shows the LEDs and Table 13 describes them.
Figure 17 SP management module LEDs
Service laptop port
(Link LED)
Power/Fault LED
Management por
t
(Activity LED)
Management por
t
(Link LED)
Service laptop port
(Activity LED)
VNX-000584
Table 13 SP management module LEDs
LED Color State Description
Power/Fault Green On SP management module is powered up.
Amber On SP management module has faulted.
Note: LED is always illuminated at powerup, until it is
initialized.
— Off SP management module is powered down.
Link (each
port has
one)
Green On Network connection
— Off No network connection
Activity
(each port
has one)
Amber Blinking Transmit/receive activity
— Off No network activity
