System component description
EMC VNX5400 Hardware Information Guide 35
Storage processor management module serial console (DB-9) socket connector
The back of the VNX5400 platform SP management module includes two standard serial
console Electronics Industries Association (EIA) RS-232 interface (DB-9) socket
connectors (one labeled with a symbol depicting a wrench on the right and the other
depicting a battery on the left). Notice the orientation of the pins (Figure 18).

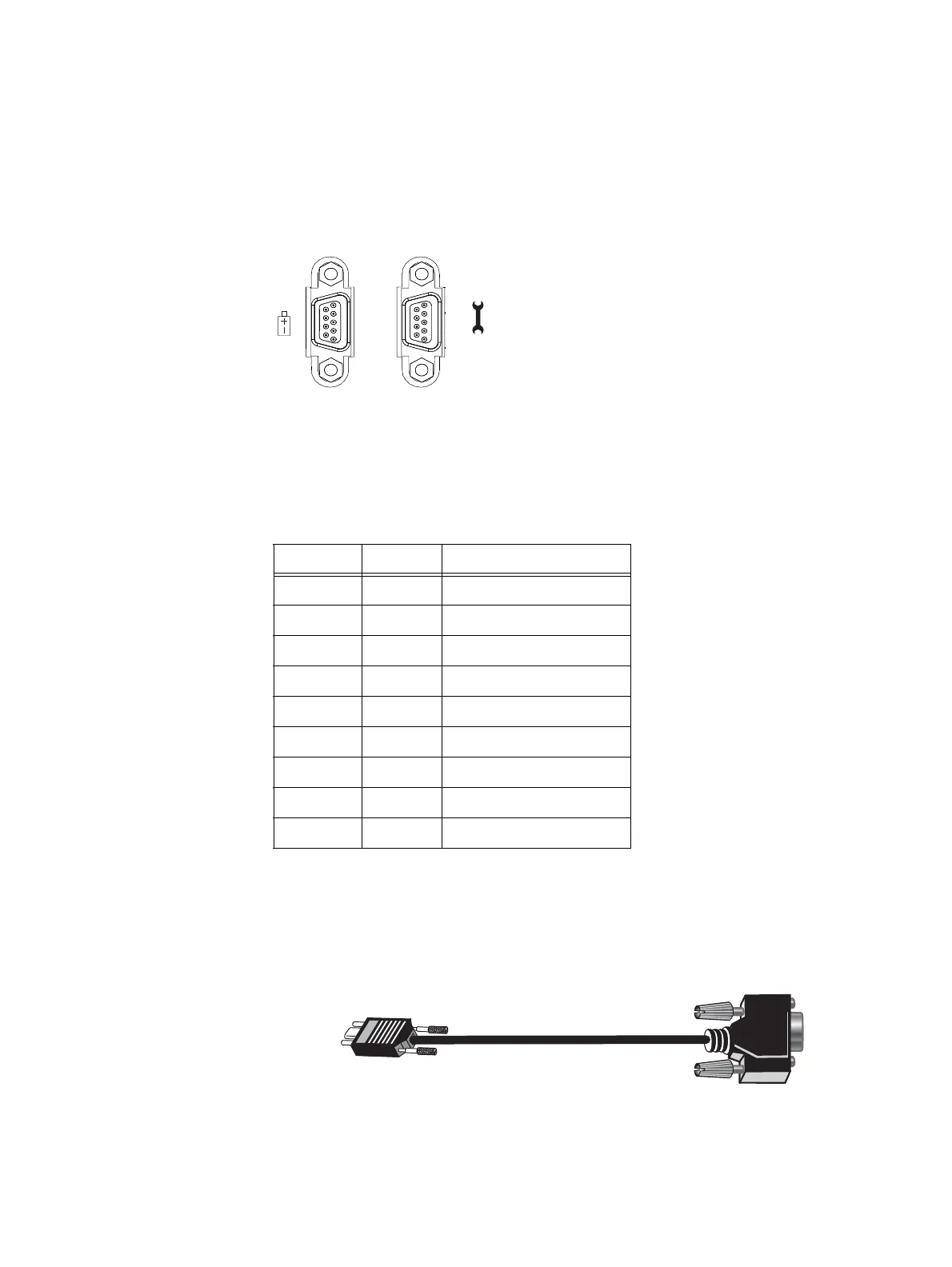

Figure 18 SP management module serial console (DB-9) socket connectors
Table 14 lists the SP management module Ethernet (DB-9) pin signals used on the
connectors.
Storage processor null modem (micro DB-9 to DB-9 serial) cable — The cable connecting
the SP management module to the PC or service laptop is a micro DB-9 cable (plug) to
serial DB-9 (socket). It has a micro DB-9 plug (SP side) on one end and a serial DB-9
socket (PC or service laptop side) on the other end. Figure 19 shows an example of an SP
management module to PC (service laptop) cable.
Figure 19 Example of an SP null modem (micro DB-9) to serial (DB-9) cable
Pin 1
5
9
6
Pin 1
5
9
6
Table 14 SP management module (DB-9) socket connector pinout
DB-9 Pin Signal Description
1 CD Carrier detect
2 TXD Transmitted data
3 RXD Received data
4 DTR Data terminal ready
5GNDGround
6DSRData set ready
7 RTS Request to send
8 CTS Clear to send
9 RI Ring indicator (not used)
VNX-000093
