DPSI BMS Operating Manual Version 1.0
Page 20 of 32

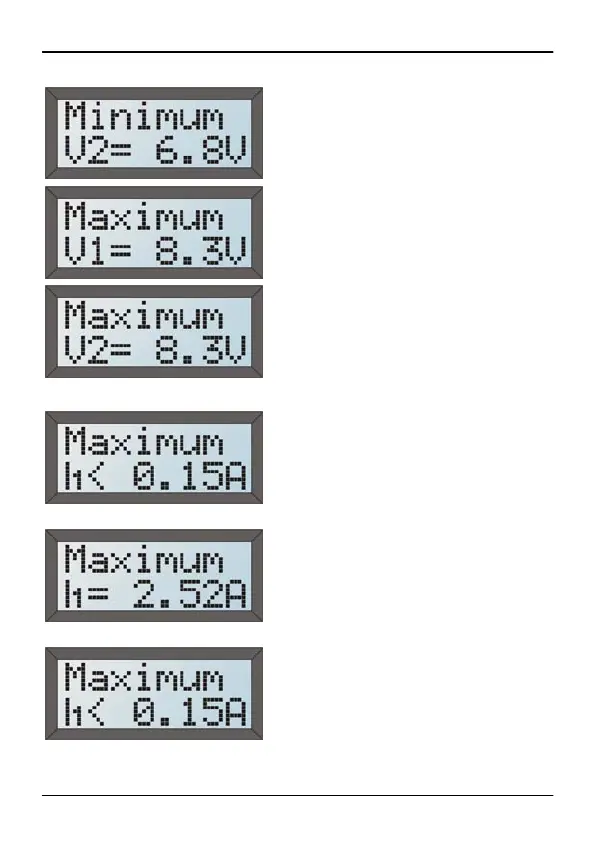

Minimum battery voltage of battery
2 since last turned on.
Maximum battery voltage of battery
1 since last turned on (maximum
value 20.0V).
Maximum battery voltage of battery
2 since last turned on (maximum
value 20.0V).
Maximum current from battery 1
since last turned on. If the value I is
< 150mA this is indicated
accordingly.
Maximum current from battery 1
since last turned on. This value
indicates the peak current which
was reached in the equipment and
can reach up to 13.00 amps.
Higher values are displayed as
“> 13.00A”.
Maximum current from battery 2
since last turned on. If there is no
current flow, the value “<0.15A” is
displayed.
