9.4. LC-Display Indications for the 2 Channel DPSI BMS

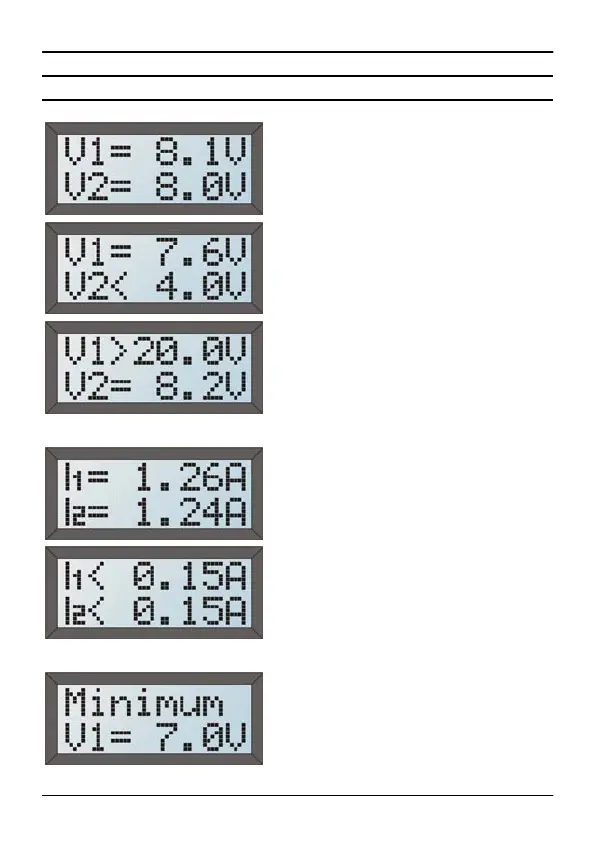

This standard display in normal
operating mode shows the actual
voltages of both connected
batteries.
If battery 2 is not connected or its
voltage is too low, the value
“< 4.0V” is displayed.
If the voltage of one connected
battery exceeds 20 volts, “> 20V” is
displayed. CAUTION: only a max.
of 16 volts are allowed!
Display of actual current withdrawn
from battery 1 and battery 2.
If the DPSI BMS is turned on
(manually) for testing without any
consumer, the display indicates a
current of < 150 milli amps (0.15A).
Minimum battery voltage of battery
1 since last turned on.
