DPSI RV Family Operating Instructions Version 2.0
Page 9 of 48

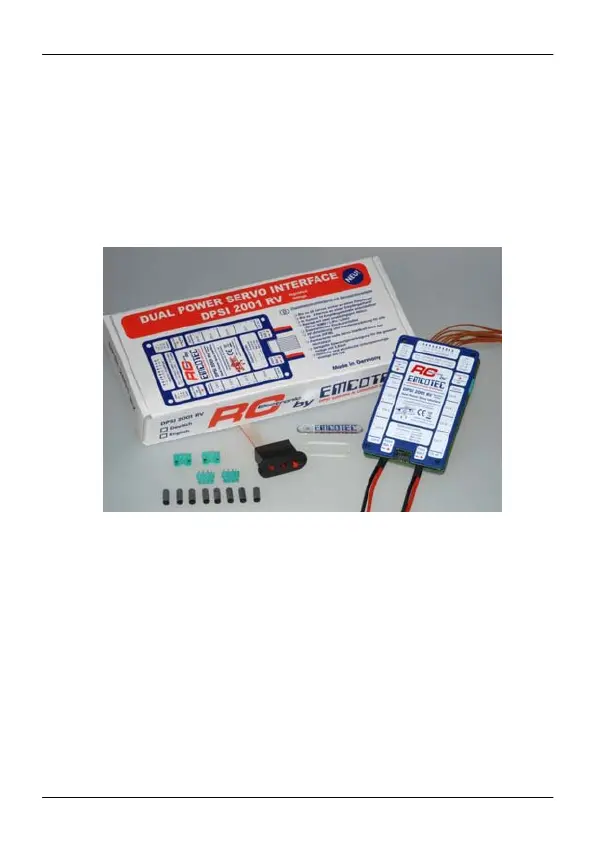

The DPSI 2001 RV is the enhancement of the DPSI 2001 and supplies
26 servos altogether, which result from 10 receiver channels.
Therefore, it is predestinated for all kinds of large model airplanes,
which need many servos (e.g. 40% size models). Two additional
outputs (MPX connectors) allow for connection of consumer loads,
which can be supplied with unregulated battery voltage (e.g. 7.4 volts
high load servos, smoke pumps, illumination etc.).
The DPSI RV allows for connecting of up to 32 servos, which result
from 12 receiver channels. Especially large-glider- and airliner-pilots
missed this variety. Due to the higher number of servos, the DPSI RV
is a little larger and heavier then the smaller systems. Because more
heat dissipation is encountered, a larger heat sink is necessary. The
DPSI RV contains two complete separate current paths and voltage
regulators. Even the breakdown of an electronically part does not lead
to a malfunction – everything is built up redundantly.
