3.4 T-200 transducer assembly removal and
installation
WARNING
CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
T-200 transducer assembly. If gas or fluid begins to leak, stop immediately and reinstall
the transducer assembly.
Failure to comply could cause serious injury or equipment damage.

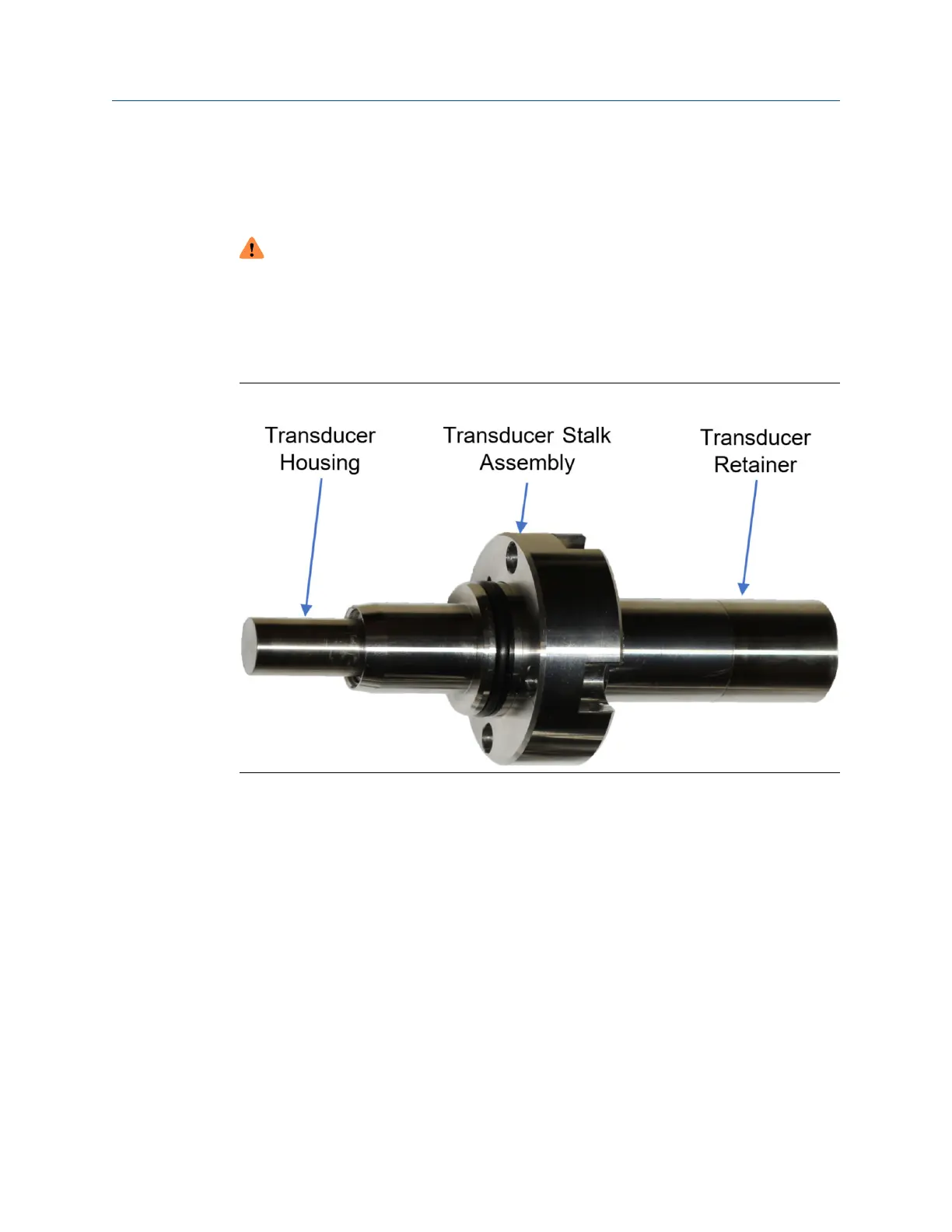

Figure 3-7: T-200 transducer assembly
T-200 transducer assembly (see Figure 3-7) offers improved transducer alignment and
superior acoustic isolation between the transducer and the meter housing. The net result
is improved performance and stability. The assembly can be used on 4" to 12" Daniel 3410
Series meters. The gas temperature ranges are as show in Table 3-1.
3.4.1
T-200 transducer assembly removal
This procedure is for removing a T-200 transducer assembly from a meter body.
Maintenance and Troubleshooting manual Meter repairs
P/N 3-9000-791 August 2021
Maintenance and Troubleshooting manual 57
