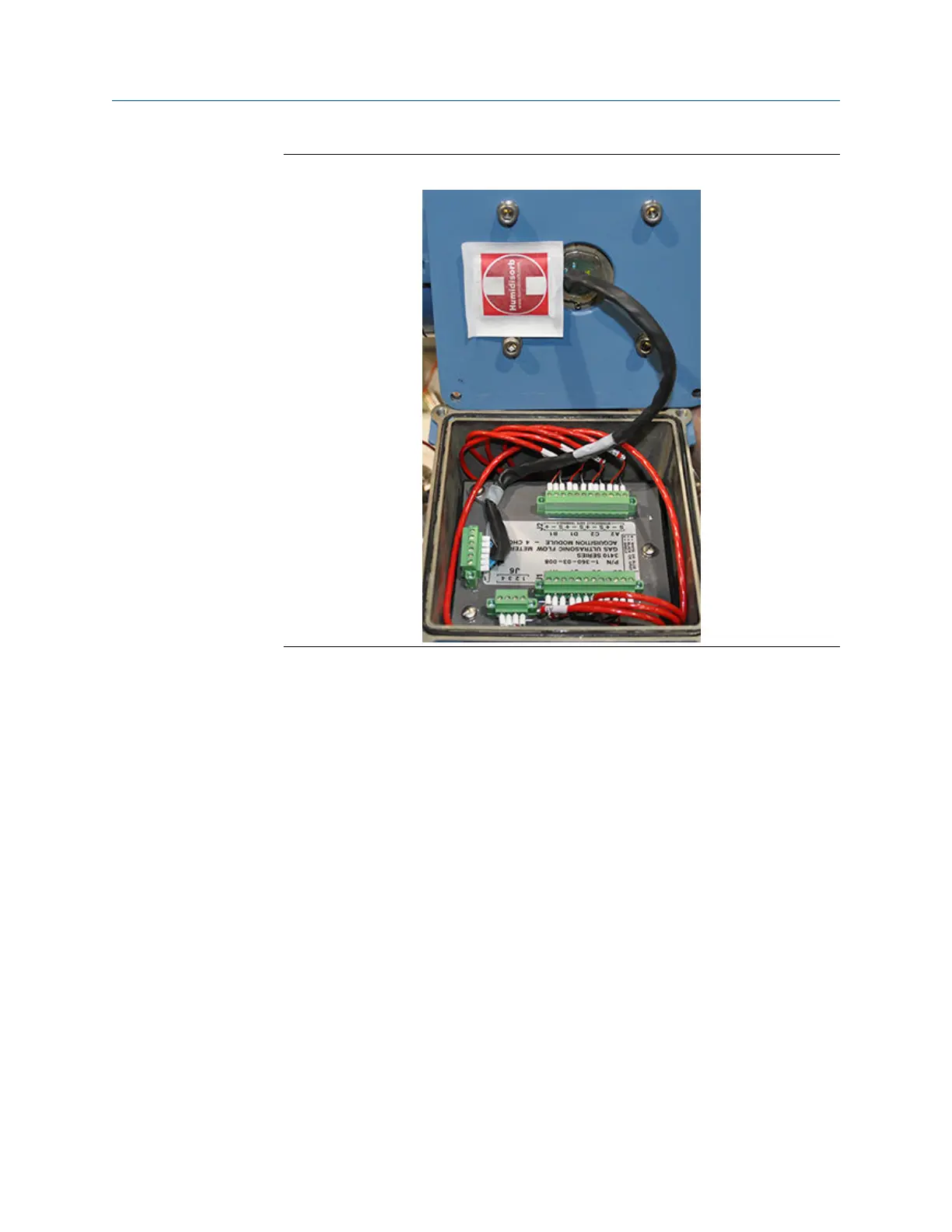

Figure 3-15: Model 3410 Ultrasonic Meter Acquisition Module Wiring
3.7.2 Install transducer cables
Procedure
1. Use the existing cable and cut the new cable (Daniel P/N 1-360-01-310) for each
cable to same length.
2. Insert the keyed cable into the transducer holder. Make sure the keyed parts are
correctly aligned.
3. Screw the cable nut onto the transducer holder turing clock-wise until hand-tight.
Ensure the threads are correctly aligned and do not overtighten the cable nut.
4. Route the cable through the gland on the Base Enclosure and pull the cable up
through the Base Enclosure to allow enough slack to strip the cable wire.
5. Strip the outer insulation, outer shield, and inner insulation to just inside the cable
gland using a wire stripper.
a) Verify that insulation of individual wires were not cut while removing outer
layers.
b) Strip each wire 1/4 inch and wire them to the Acquisition Module terminal
block.
c) Check the label number (i.e. A1) on the Acquisition Module and match it with
the label on the cable. Securely tighten the mounting screws of terminal
