Meter housing internal components - NPS 10 through 24 -
Unidirectional
The figure below identifies and describes the NPS 10 through 24 unidirectional meter
housing components.

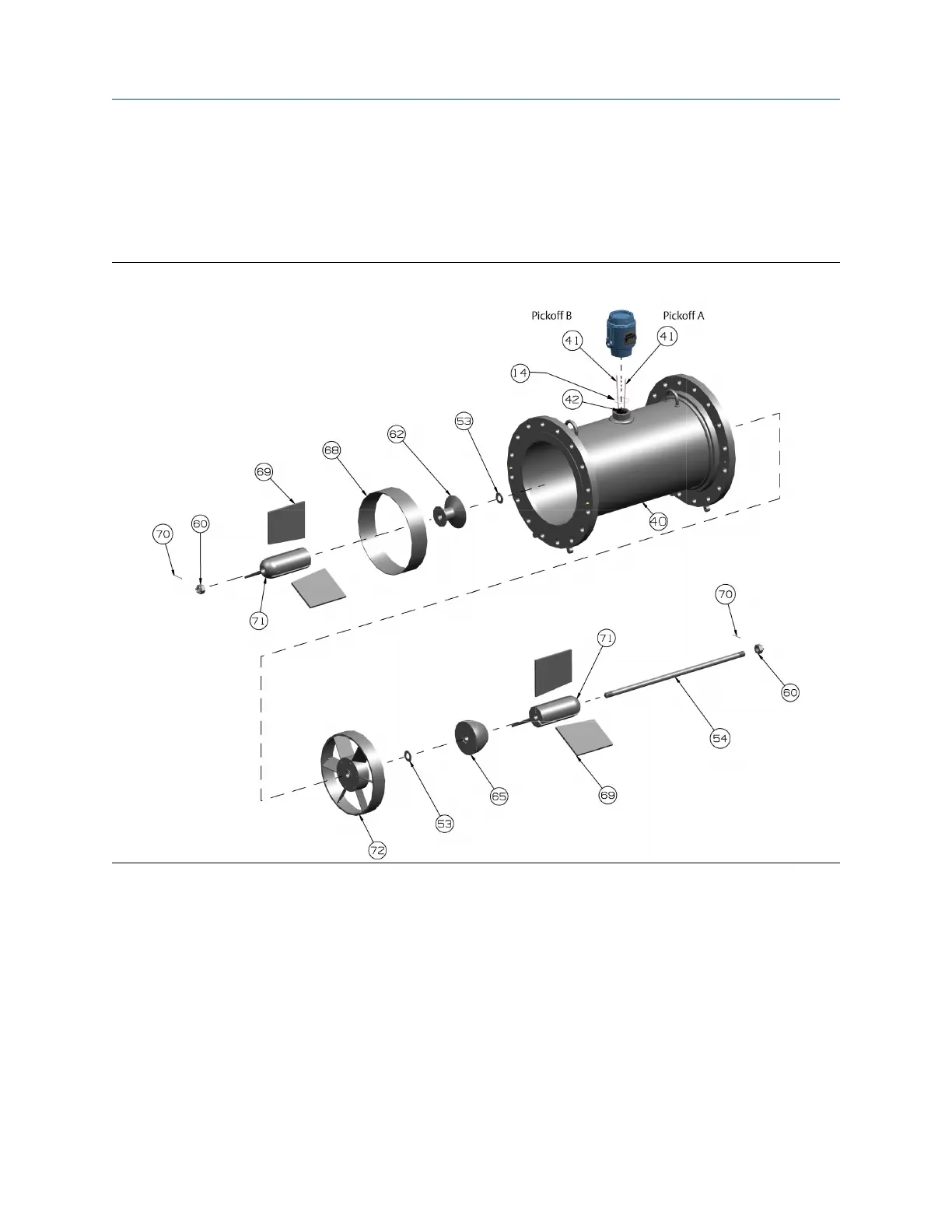

Figure 1-8: Part identification for an NPS 10 through 24 unidirectional (rimmed) LTM
Introduction User manual
March 2019 P/N 3-9008-515
32 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24
