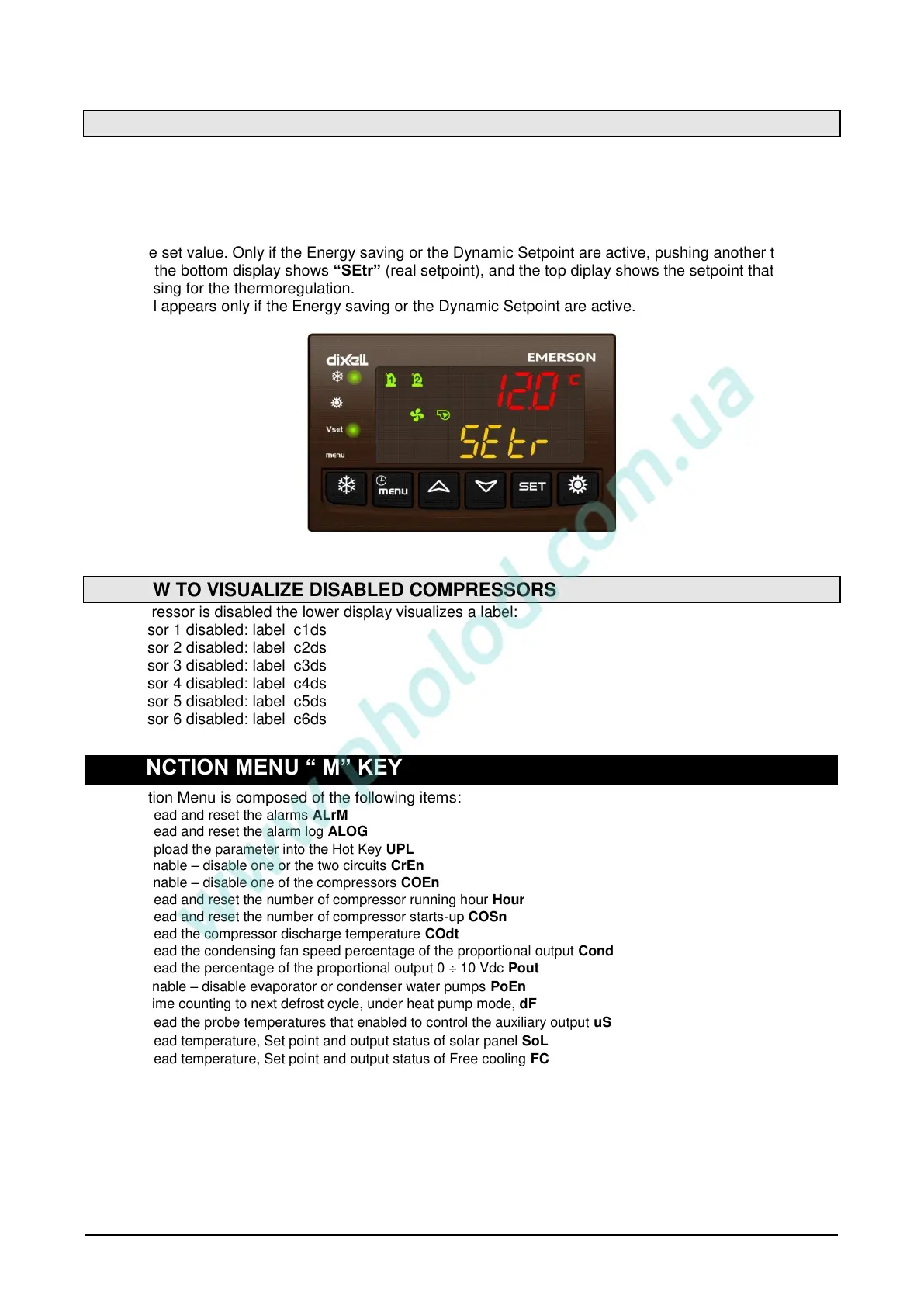

8.3 READ REAL SETPOINT DURING ENERGY SAVING OR DYNAMIC SETPOINT

Chiller mode: push SET one time, the bottom display shows the SEtC (set chiller) while the top display

shows the set value. Only if the Energy saving or the Dynamic Setpoint are active, pushing another time the

SET key, the bottom display shows “SEtr” (real setpoint), and the top display shows the setpoint that the

unit is really using for the thermoregulation.

Chiller mode: push SET one time, the bottom display shows the SEtH (set Heat pump) while the top display

shows the set value. Only if the Energy saving or the Dynamic Setpoint are active, pushing another time the

SET key, the bottom display shows “SEtr” (real setpoint), and the top diplay shows the setpoint that the unit

is really using for the thermoregulation.

SEtr label appears only if the Energy saving or the Dynamic Setpoint are active.

8.4 HOW TO VISUALIZE DISABLED COMPRESSORS

If a compressor is disabled the lower display visualizes a label:

compressor 1 disabled: label c1ds

compressor 2 disabled: label c2ds

compressor 3 disabled: label c3ds

compressor 4 disabled: label c4ds

compressor 5 disabled: label c5ds

compressor 6 disabled: label c6ds

9. FUNCTION MENU “ M” KEY

The function Menu is composed of the following items:

 Read and reset the alarms ALrM

 Read and reset the alarm log ALOG

 Upload the parameter into the Hot Key UPL

 Enable – disable one or the two circuits CrEn

 Enable – disable one of the compressors COEn

 Read and reset the number of compressor running hour Hour

 Read and reset the number of compressor starts-up COSn

 Read the compressor discharge temperature COdt

 Read the condensing fan speed percentage of the proportional output Cond

 Read the percentage of the proportional output 0 ÷ 10 Vdc Pout

 Enable – disable evaporator or condenser water pumps PoEn

 Time counting to next defrost cycle, under heat pump mode, dF

 Read the probe temperatures that enabled to control the auxiliary output uS

 Read temperature, Set point and output status of solar panel SoL

 Read temperature, Set point and output status of Free cooling FC

 Read probe temperature of the remote panels trEM

 Read temperature, pressure, set point of the electronic expansion valve 1 Et1

 Read temperature, pressure, set point of the electronic expansion valve 2 Et2

 Enable / disable recovery function (REC)
