The Pressure module connects through the DVS connector on the
FB107 base unit (see Figure 6-9.
A
Integral Sensor Connector

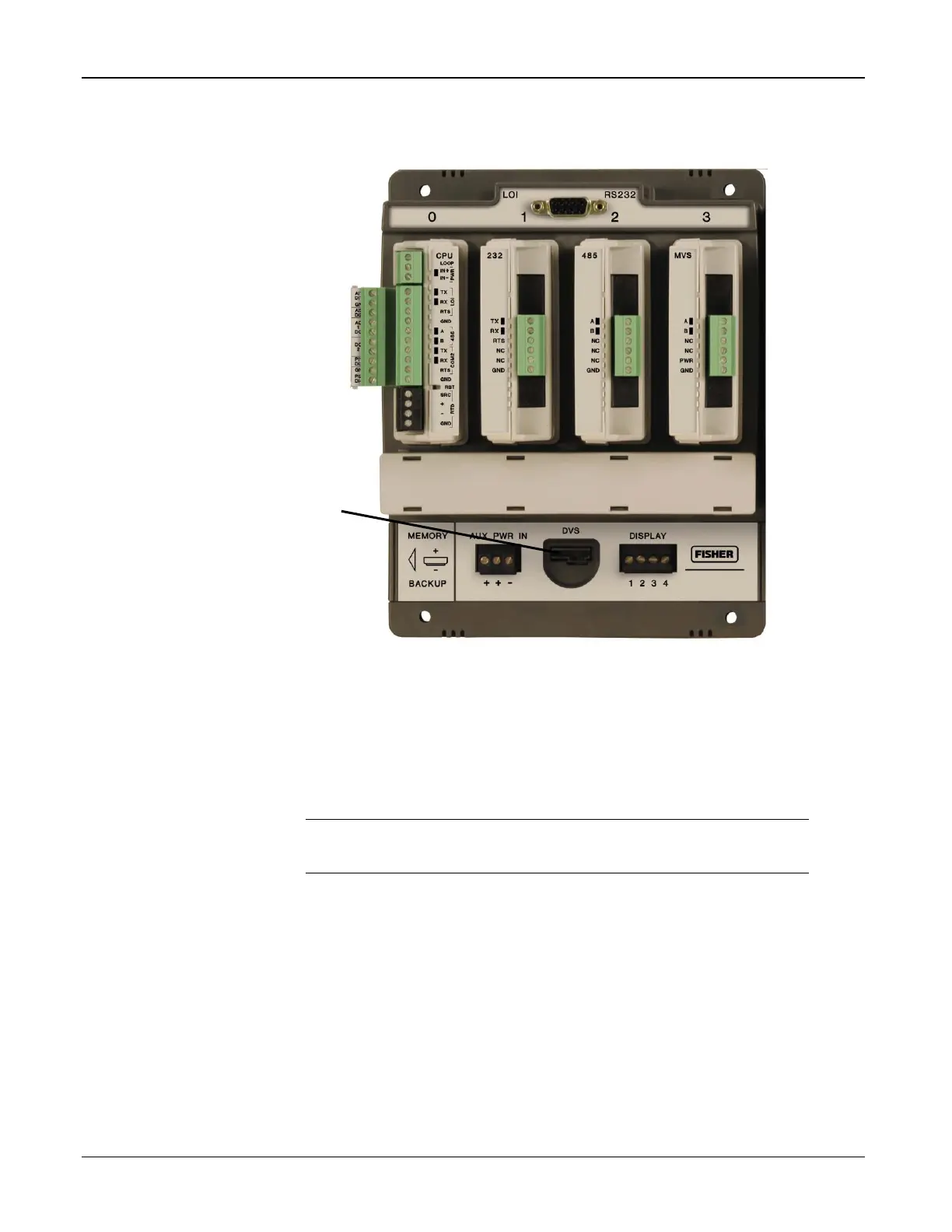

Figure 6-9. FB107 Base Unit, Integral Sensor Connector
With the PIM module installed, you can start ROCLINK 800.
When the FB107 graphical interface displays, click on the DVS
connector. The graphical interface changes to reflect values for the
installed PIM.
Note: The ROCLINK 800 graphic labels the Pressure module as
an “Integral PIM.”
