FloBoss 107 Instruction Manual
Revised June-2017 Installation and Use 2-9
2. Align and gently press together the left edge of the expansion rack
with the right edge of the base unit. Ensure that the connectors fit
together.
3. Using the four holes on the expansion rack, mark the points at which
the expansion rack should attach to the wall. Refer to Figure 2-5.
4. Detach the expansion rack from the base unit.
5. Drill four holes into the wall.
6. Reattach the expansion rack to the base unit, ensuring that the holes in
the expansion rack align with the mounting holes you drilled.
7. Insert the screws through the expansion rack into the wall. Do not
over tighten.
8. Return power to the FB107.
Note: Depending on your installation, you may require wall anchors or
longer screws than are supplied.
Using an
Adapter Plate
To simplify installation, you can purchase an optional metal adapter
plate (product number FS1ADP-2) for the FB107 base unit and
expansion rack. After you secure the adapter plate to its location (using
#8 mounting screws), the base unit and expansion rack attach directly
to the adapter plate.
31.8
1.25
[ ]
5.00
127.0
[ ]
127.0
5.00
[ ]
317.5
12.50
[ ]
11.12
[
282.5
]
3.40 86.4
[
]
0.38
9.5
[
]
7.00
[
177.8
]
]
[
7.75
196.8
A
Attachment posts
B
Plate mounting Holes
C
Retaining clips

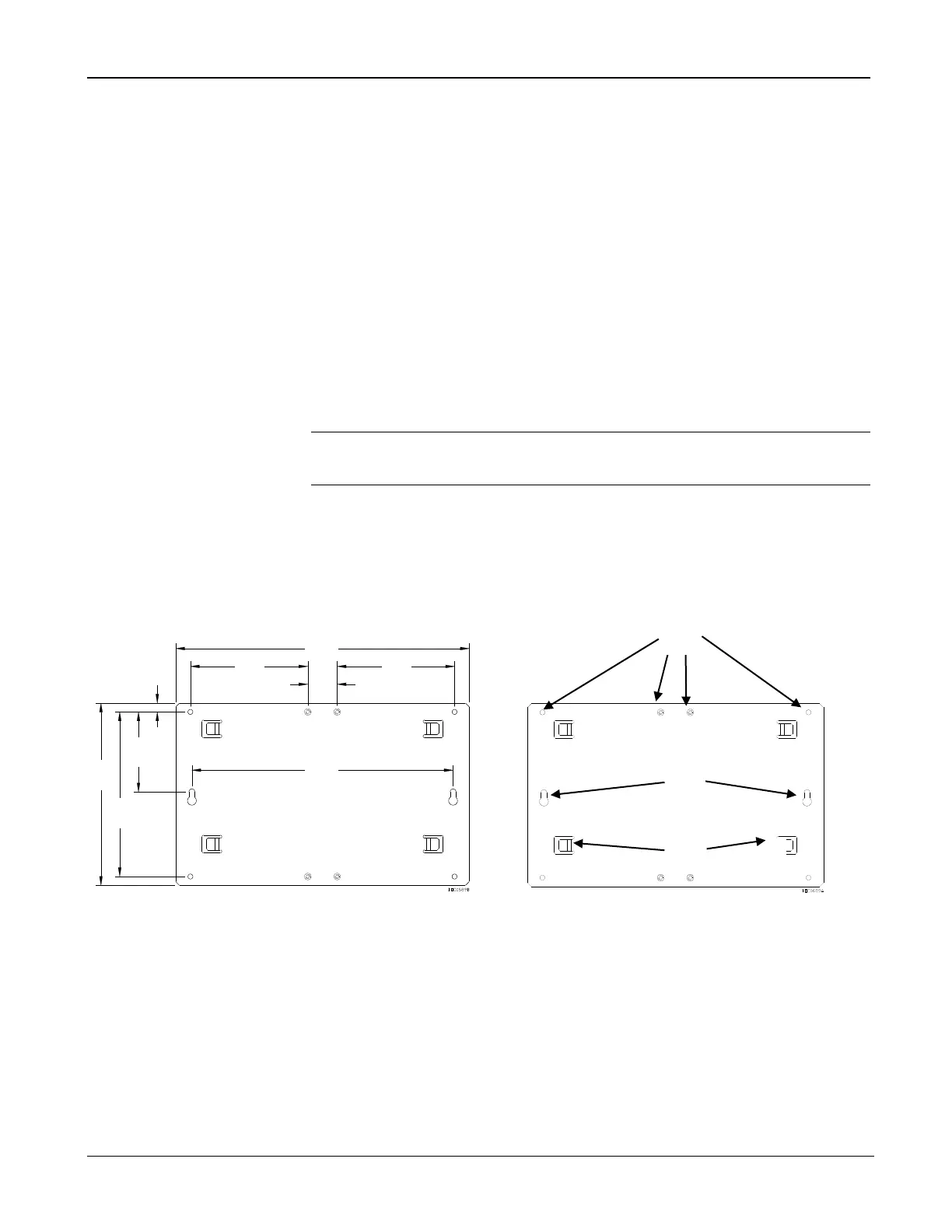

Figure 2-5. Adapter Plate (FB107 Expansion Rack)
To install the base unit and expansion rack to the FS1ADP-2 adapter
plate:
1. Place the unpowered base unit on the left side of the adapter plate so
that the attachment posts touch the right-most inside of the plastic
housing.
B
C
A
