FloBoss 107 Instruction Manual
Revised June-2017 General Information 1-7
 EIA-232 (RS-232) communications (COM2).
 Boot Flash – System initialization and diagnostics.
 SRAM (static random access memory) with battery backup – Data
logs and configuration.
 Flash ROM (Read-only memory) – Firmware image.
 32-bit microprocessor and the real-time operating system (RTOS)
provide both hardware and software memory protection.
 Optional CPU I/O assembly and terminations (see Figure 1-4).

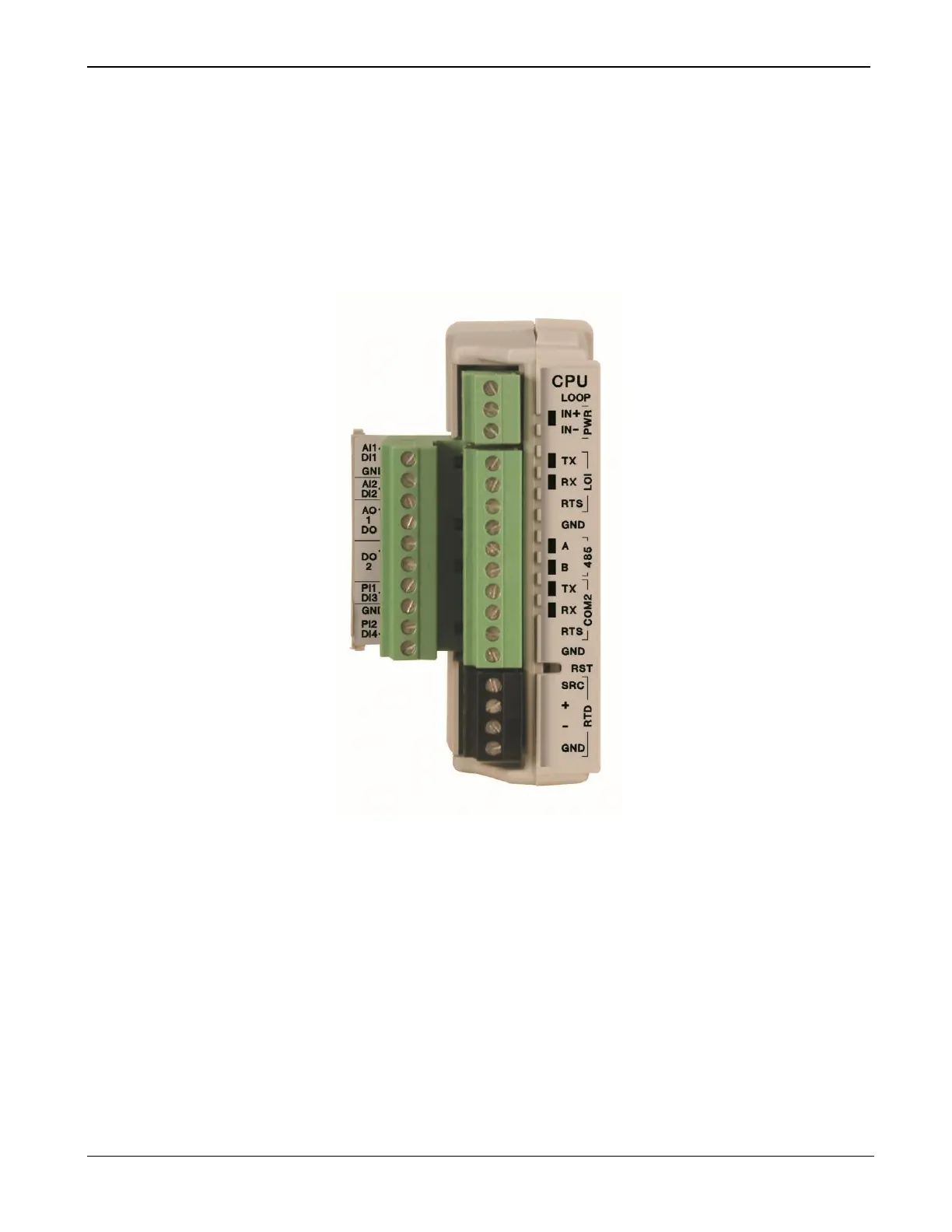

Figure 1-4. CPU
