Emerson FloBoss 107

FloBoss 107 Instruction Manual
4-4 Inputs and Outputs Revised June-2017
Termination
Number
I/O Type
7
DO2+
6
DO2
5
PI1+/DI3+
4
GND – (Common)
3
PI2+/DI4+
2
NC (No Connection)
1
GND – (Common)
A
AI1+/DI1+
B
GND – (Common)
C
AI2+/DI2+
D
AO+/DO1+
E
AO–/DO1–
F
DO2+
G
DO2–
H
PI1+/DI3+
I
GND – (Common)
J
PI2+/DI4+

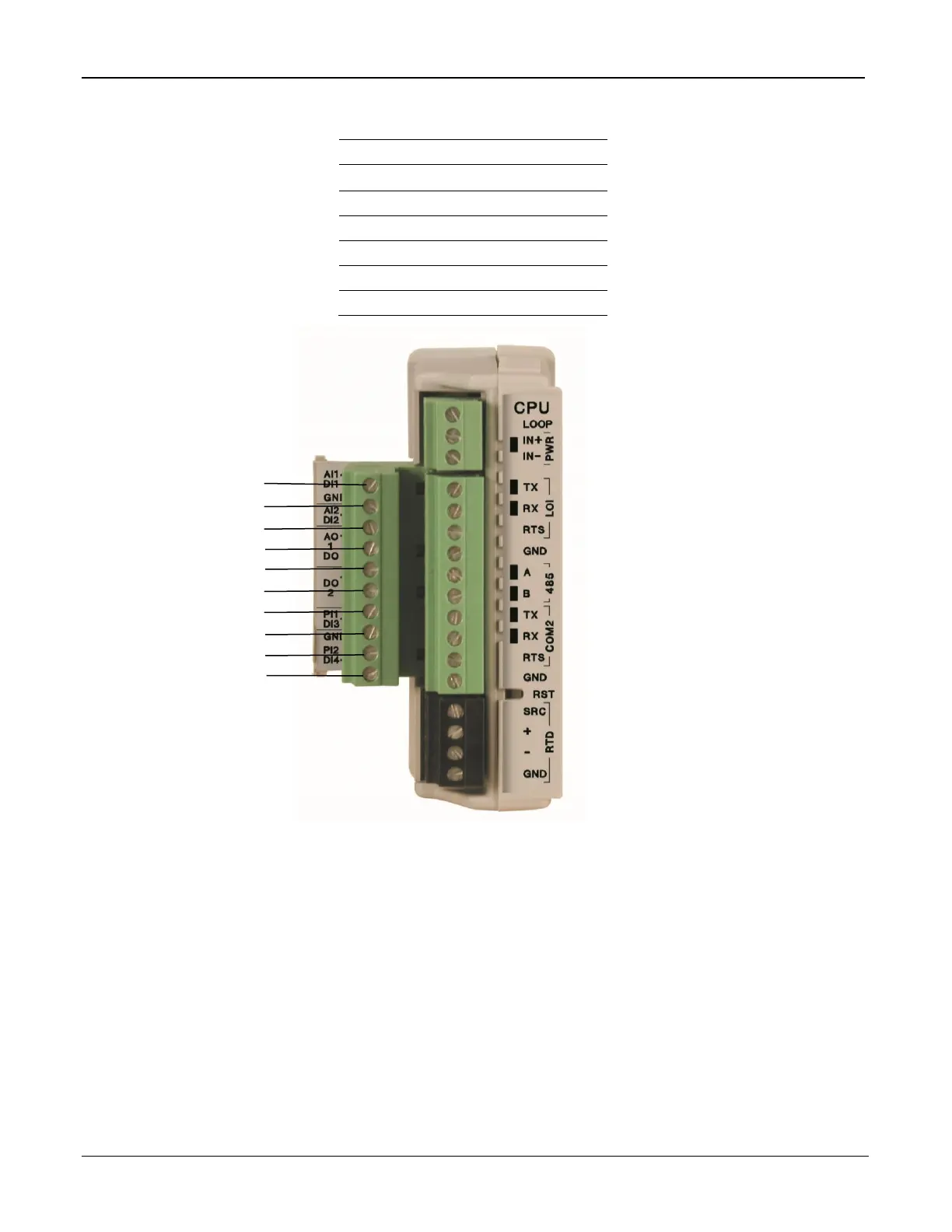

Figure 4-2. CPU Module’s Optional I/O Assembly
A
B
C
D
E
F
G
H
I
J
