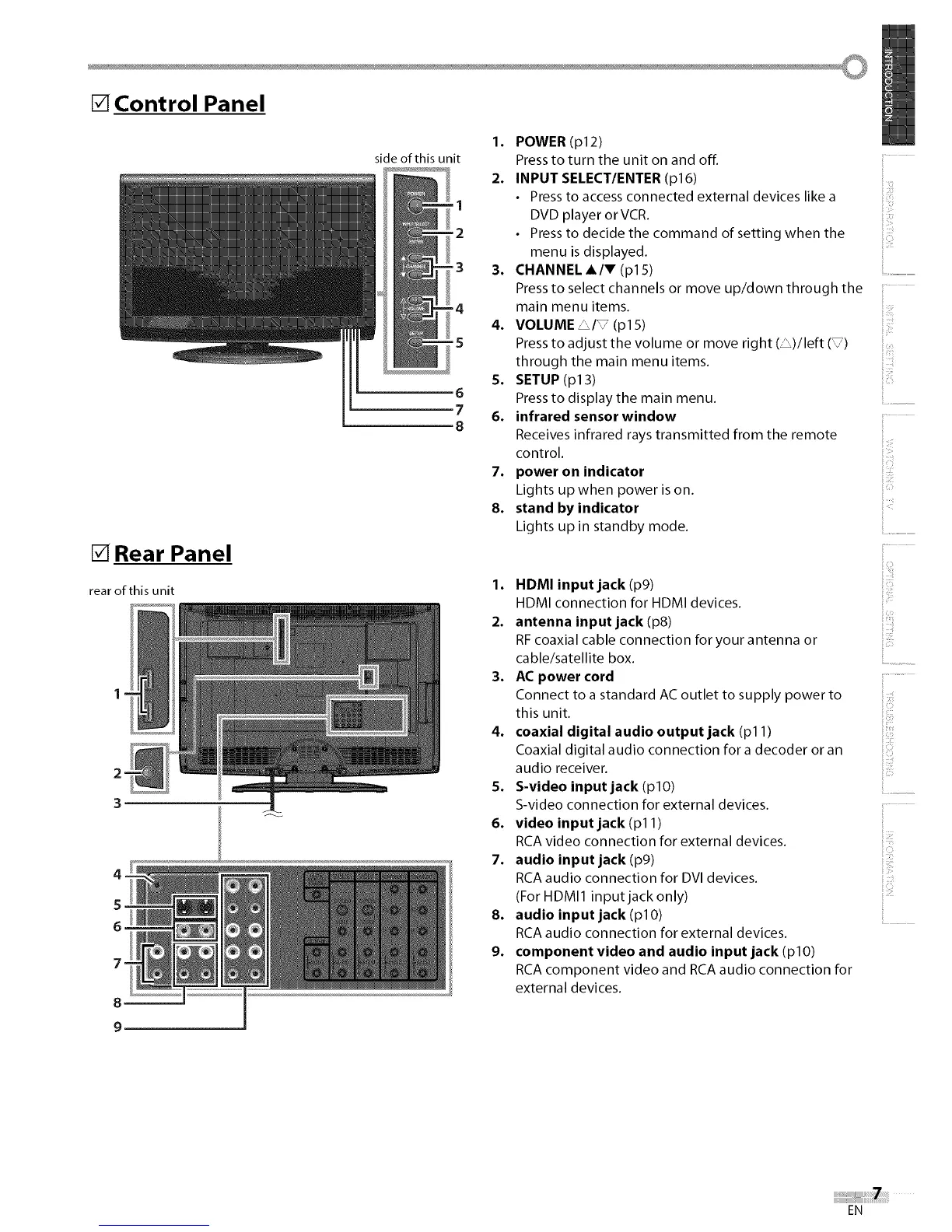

[] Control Panel
[] Rear Panel
rear of this unit
2
3
4
5
6
7
side of this unit
1. POWER (p12)
Press to turn the unit on and off.
2. INPUT SELECT/ENTER (p16)
• Press to access connected external devices like a
1
DVD player orVCR.
2 • Press to decide the command of setting when the
menu is displayed.
-3 3. CHANNEL A/V (pl 5)
Press to select channels or move up/down through the
-4 main menu items.
4. VOLUME LI_ (p15)
-5 Press to adjust the volume or move right (_)/left (_)
through the main menu items.
S. SETUP(p13)
6 Press to display the main menu.
7 6. infrared sensor window
8
Receives infrared rays transmitted from the remote
control.
7. power on indicator
Lights up when power is on.
8. stand by indicator
Lights up in standby mode.
1. HDMI input jack (pg)
HDMI connection for HDMI devices.
2. antenna input jack (p8)
RFcoaxial cable connection for your antenna or
cable/satellite box.
3. AC power cord
Connect to a standard AC outlet to supply power to
this unit.
4. coaxial digital audio output jack (pl 1)
Coaxial digital audio connection for a decoder or an
audio receiver.
5. S-video input jack (pl O)
S-video connection for external devices.
6. video input jack (pl 1)
RCA video connection for external devices.
7. audio input jack (p9)
RCA audio connection for DVI devices.
(For HDMI1 input jack only)
8. audio input jack (pl O)
RCA audio connection for external devices.
9. component video and audio input jack (plO)
RCA component video and RCA audio connection for
external devices.
ii:_?i
iiiiiiii
iiiiii_
iii_i'!:i
............................
i.............
iii_!iii_
EN
