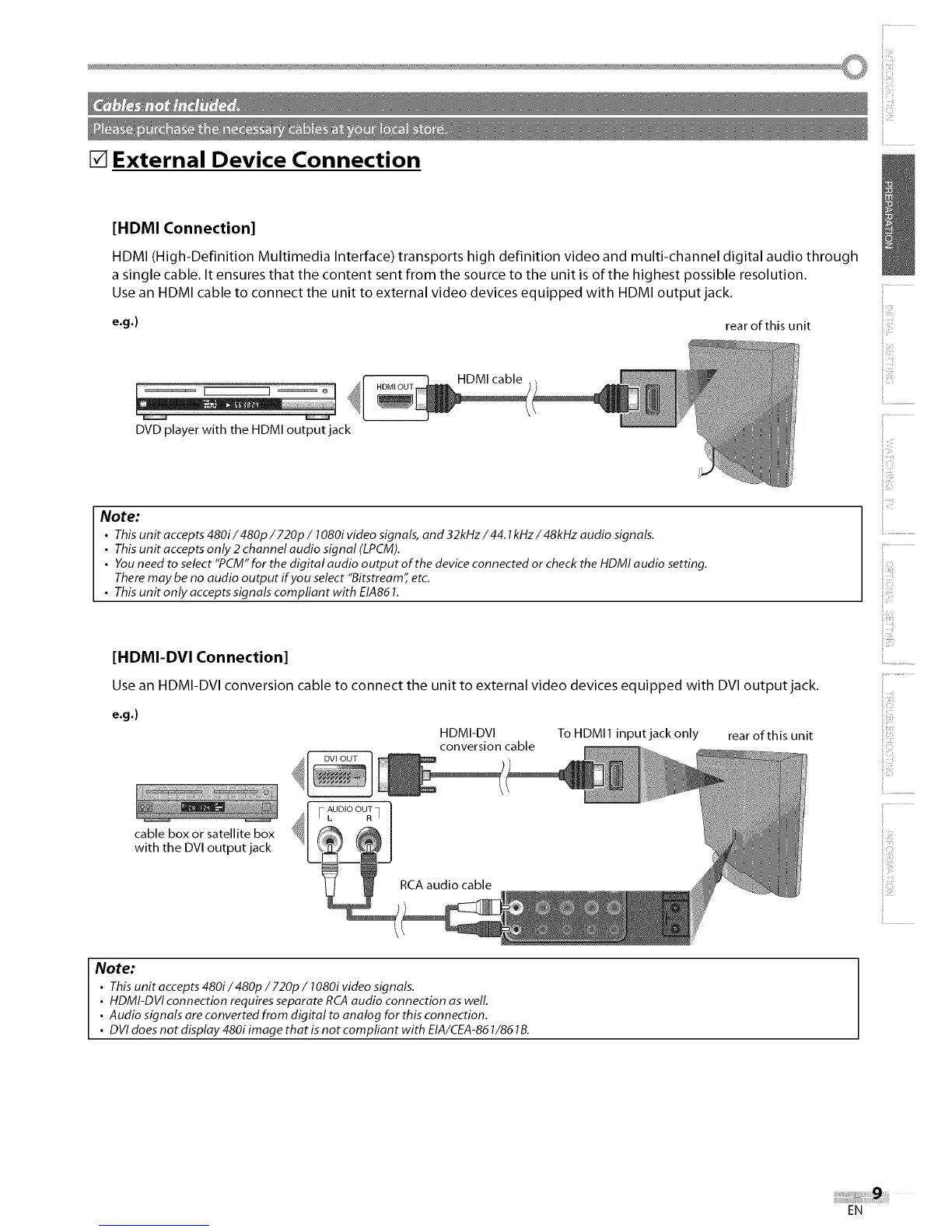

[] External Device Connection
[HDMI Connection]
HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through
a single cable. It ensures that the content sent from the source to the unit is of the highest possible resolution.
Use an HDMI cable to connect the unit to external video devices equipped with HDMI output jack.
e.g.) rear of this unit
HDMI cable
DVD player with the HDMI output jack
Note:
• This unit accepts 480i/480p/720p/1080i video signals, and 32kHz/44.1kHz/48kHz audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select "PCM" for the digital audio output of the device connected or check the HDMI audio setting.
There may be no audio output if you select "Bitstream" etc.
• This unit only accepts signals compliant with EIA861.
[HDMI-DVI Connection]
Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.
e.g.)
cable box or satellite box
with the DVI output jack
HDMI-DVI To HDMI1 input jack only rear of this unit
conversion cable
i::!
ii,iiii_'_
............................
il............
il_:i!iii
! :z!
iii_!ii;_
Note:
• This unit accepts 480i/480p/720p / 1080i video signals.
• HDMI-DVI connection requires separate RCA audio connection as welL
• Audio signals are converted from digital to analog for this connection.
• DVI does not display 480i image that is not compliant with EIA/CEA-861/86 lB.
EN
