7.0 SPECIFICATIONS
7.1 Dimensional Data

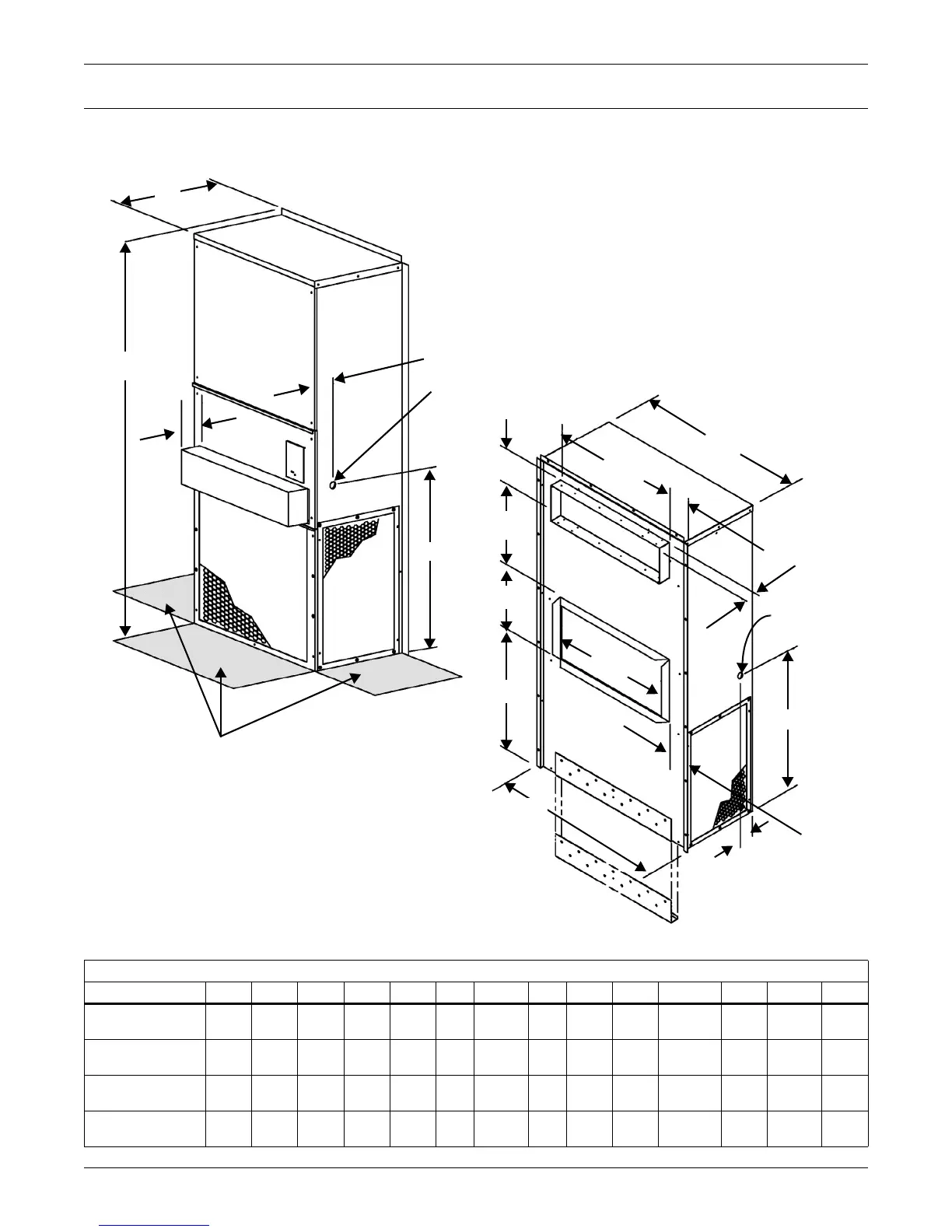

Figure 6 Dimensional data
Table 5 Liebert InteleCool2 dimensions, in. (mm)
Dimensions, in. (mm)
Model Wu Ws Wf A B C D E F G H J K L
1.5/2 Ton
37-1/8
(943)
17-3/4
(451)
38-3/4
(984)
20
(508)
20
(508)
9-3/8
(238)
9-13/32
(239)
8
(203)
20-3/4
(527)
12
(305)
25-1/16
(638)
69-3/4
(1772)
36-3/16
(919)
31-5/8
(803)
3 Ton
37-1/8
(943)
17-3/4
(451)
38-3/4
(984)
28
(711)
28
(711)
5-3/8
(137)
5-3/8
(137)
8
(203)
18
(457)
14
(356)
26
(660)
69-3/4
(1772)
36-3/16
(919)
31-5/8
(803)
4/5 Ton
41
(1041)
22-1/2
(572)
42-3/4
(1086)
30-1/4
(768)
29-7/8
(759)
6-1/4
(159)
6-7/16
(164)
9-7/8
(251)
30
(762)
15-7/8
(403)
25-25/64
(645)
83
(2108)
44
(1118)
39-1/2
(1003)
4 or 5 Ton Unit
w/ 3 Ton Openings
41
(1041)
22-1/2
(572)
42-3/4
(1086)
28
(711)
28
(711)
7-3/8
(187)
7-3/8
(187)
8
(203)
18
(457)
14
(356)
37-1/2
(952)
83
(2108)
44
(1118)
39-1/2
(1003)
See Table 5 below for dimensions.
4"
(102mm)
Wu
C
Entrance for high
volt connections
Shaded areas indicate a recommended clearance
of 34" (864mm) in front and 30" (762mm) each side,
or 36" (914mm) when mounted adjacent to another
unit, for component access. For recommended
minimum clearances, refer to 2.1.2 - Location Con-
siderations.
E
F
G
H
D
L
B
return
Entrance
for low volt
connections
1-11/16"
(43mm)
2-1/4"
(58mm)
Ws
J
2-1/4"
(58mm)
Wf
K
A
supply
