Emerson Liebert InteleCool 2 - Figure 11 Heater Assembly

Parts
49

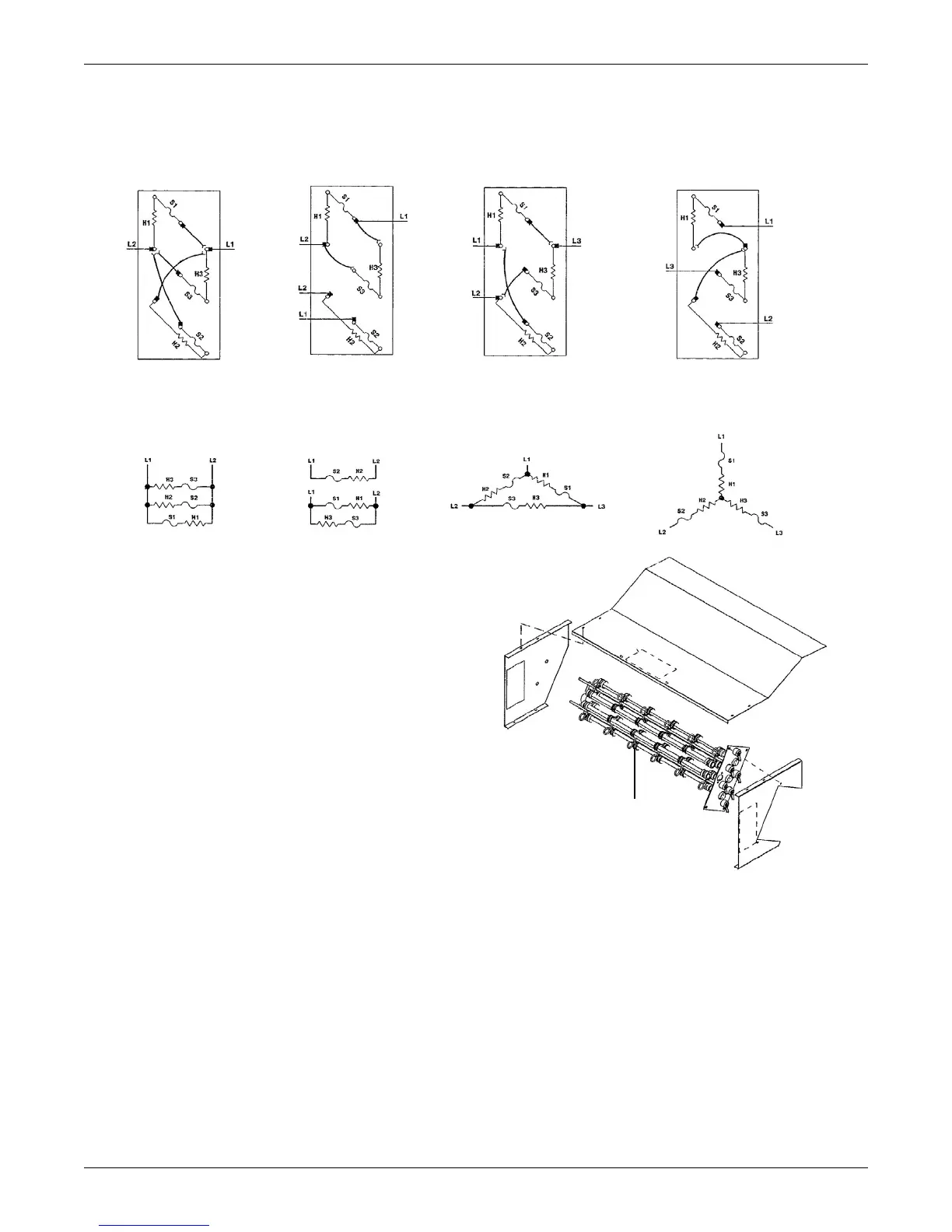

Figure 11 Heater assembly
5kW &10kW
208/230V, 1 phase
(Parallel)
Connection
15kW
208/230V, 1 phase
(Parallel)
Connection
5kW, 10kW & 15kW
380/460V, 3 phase
(Wye)
Connection
5kW, 10kW & 15kW
208/230V, 3 phase
(Delta)
Connection
159171G1 & G2,
G13 & G14
159171G3 & G15 159171G4, G5 &G6
G16, G17 & G18
1
159171G7, G8, G10, G11& G12
G19, G20, G21, G22, G23& G24
