Micro Motion
®
Model D and DT Sensors Instruction Manual 23
Wiring continued

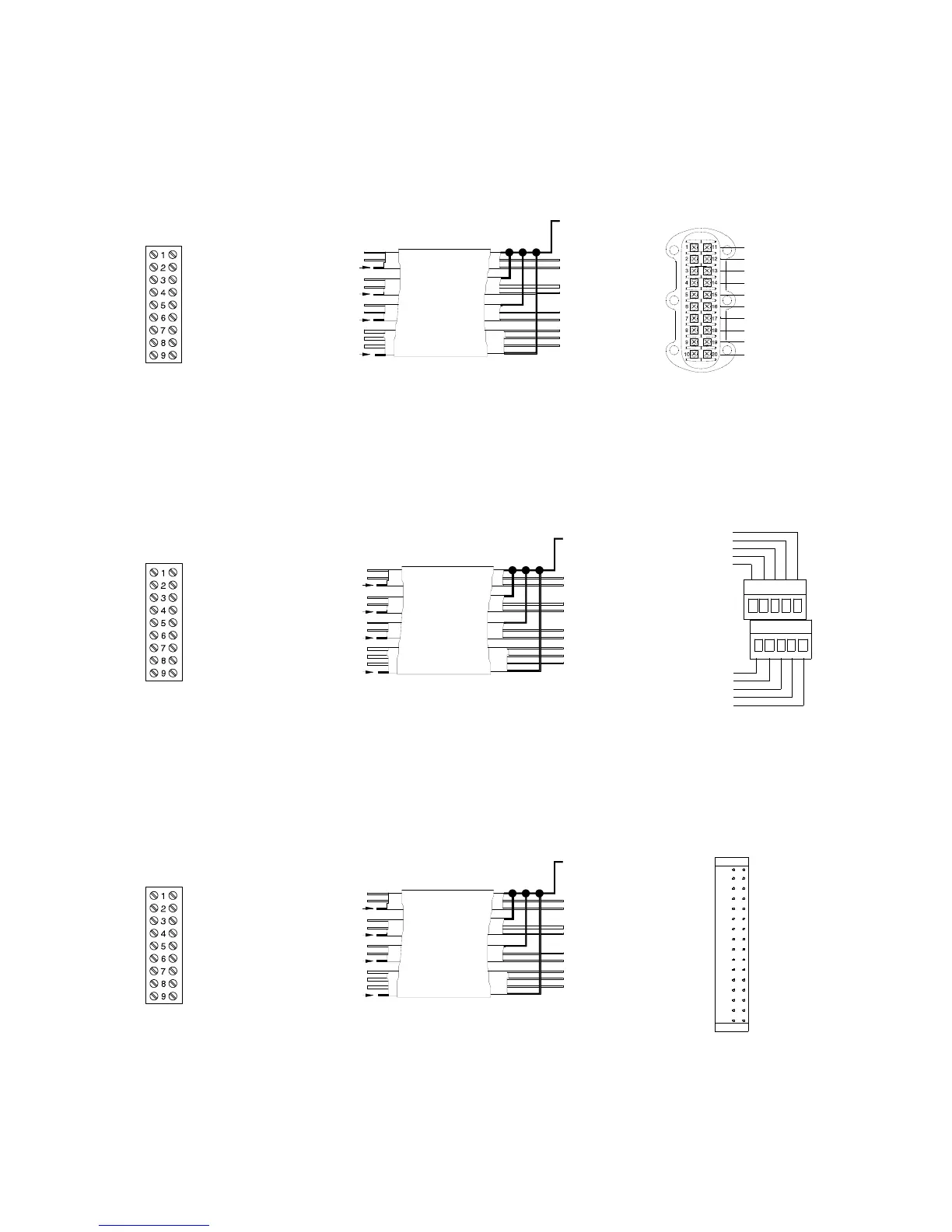

Model D or DT sensor (except D600) wiring to Model 3700
Model D or DT sensor (except D600) wiring to RFT9739 field-mount transmitter
Model D or DT sensor (except D600) wiring to RFT9739 rack-mount transmitter
Brown
Red
Clip drain wire back
Green
White
Clip drain wire back
Blue
Gray
Clip drain wire back
Orange
Violet
Yellow
Clip drain wire back
Model D or DT
sensor terminals
Flowmeter
cable
Model 3700
terminals
Brown
Red
Green
White
Blue
Gray
Orange
Violet
Ye l l o w
Black
(Drains from all
wire sets)
Maximum cable length 1000 ft. (300 m)
Prepare cable in accordance with the instructions
that are shipped with the cable
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Red
Brown
Yellow
Black (drains)
Violet
Orange
Green
White
Blue
Gray
For DT sensor junction box
information, see page 20.
9 7531
86420
Brown
Red
Clip drain wire back
Green
White
Clip drain wire back
Blue
Gray
Clip drain wire back
Orange
Violet
Yellow
Clip drain wire back
Model D or DT
sensor terminals
Flowmeter
cable
Field-mount
RFT9739 terminals
Brown
Red
Green
White
Blue
Gray
Orange
Violet
Yellow
Black
(Drains from all
wire sets)
Brown
Orange
Green
Violet
White
Gray
Blue
Yellow
Red
Black (Drains)
Maximum cable length 1000 ft. (300 m)
Prepare cable in accordance with the instructions
that are shipped with the cable
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
For DT sensor junction-box
information, see page 20.
CN1
BZ
Brown
Red
Clip drain wire back
Green
White
Clip drain wire back
Blue
Gray
Clip drain wire back
Orange
Violet
Yellow
Clip drain wire back
Model D or DT
sensor terminals
Flowmeter
cable
Rack-mount
RFT9739 terminals
Brown
Red
Green
White
Blue
Gray
Orange
Violet
Ye l l o w
Black
(Drains from all
wire sets)
Red
Yellow
Orange
White
Gray
Brown
Black (Drains)
Violet
Green
Blue
Maximum cable length 1000 ft. (300 m)
Prepare cable in accordance with the instructions
that are shipped with the cable
B2
B4
B6
B8
B10
Z2
Z4
Z6
Z8
Z10
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
For DT sensor junction box
information, see page 20.
