Emerson NGA2000 - Figure 1-5. Analog I;O Module Output Connector;Adapter Pin Assignments

Instruction Manual
748275-F
September 2003
Description and Specifications Rosemount Analytical Inc. A Division of Emerson Process Management
1-4
Model NGA2000 I/O Modules

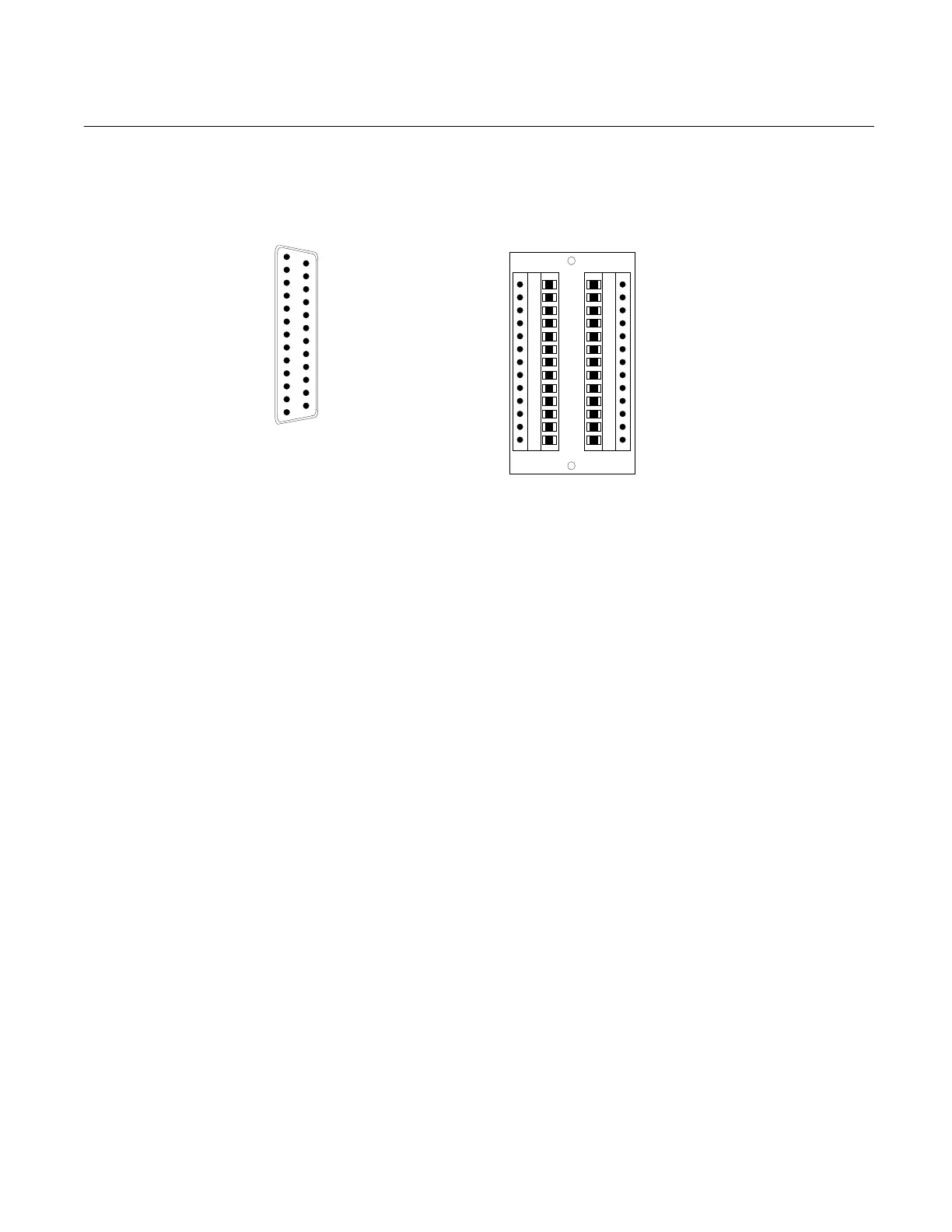

Figure 1-5. Analog I/O Module Output Connector/Adapter Pin Assignments
1
13
14
25
1
13
14
25
PIN ASSIGNMENTS
1 Analog Current Output 14 SPST Relay 4 (NO)
2 Analog Voltage Output 15 SPST Relay 5 (NO)
3 Analog Return for Pins 1, 2 16 SPST Relay 6 (NO)
4 Analog Chassis Ground 17 SPST Common
5 SPST Relay 1 (NC) 18 SPST Relay 7 (NO)
6 SPST Relay 1 (C) 19 Digital Input 1
7 SPST Relay 1 (NO) 20 Digital Input 2
8 SPST Relay 1 (NC) 21 Digital Input 3
9 SPST Relay 1 (C) 22 Digital Input 4
10 SPST Relay 1 (NO) 23 Digital Input 5
11 SPST Relay 1 (NC) 24 Digital Input 6
12 SPST Relay 1 (C) 25 Digital Common
13 SPST Relay 1 (NO)
I/O Module
Output Connector
Output Adapter
(Accessory)
