Quick Panel Operator User Manual Section 2
GFK-2847AA Jan 2023
Hardware 12

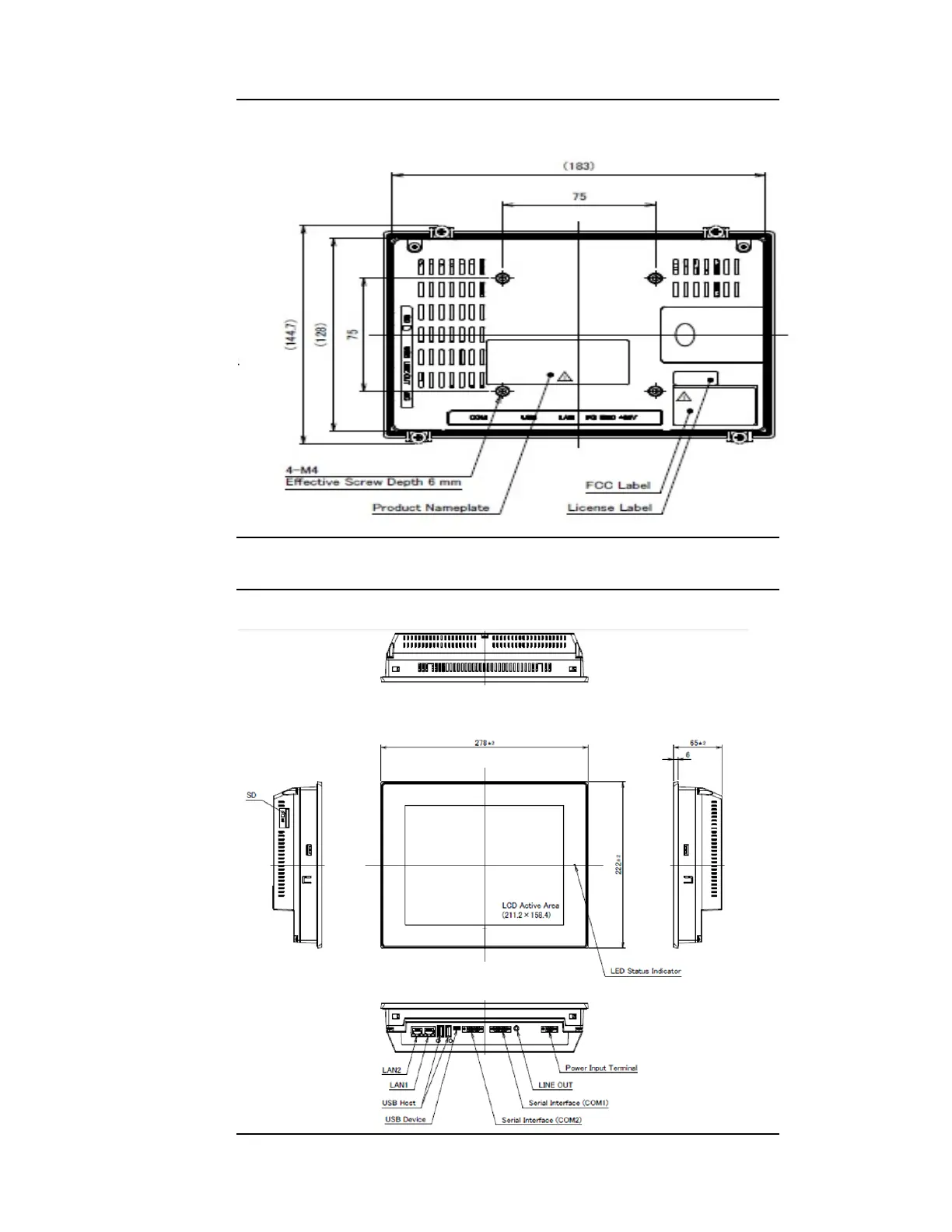

Figure 5: Rear View IC755CxW07CDx
Note: Refer to the section IC755CxW07CDx Specifications for drawing dimensions
Figure 6: 4-Sided View IC755CxS10CDx
