Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 63
5.6.1 IC755CxS06RDx
To install or replace the battery for IC755CxS06RDx:
CAUTION
Replace the battery for the IC755CxS06RDx only with Emerson battery part number
IC755ACCBATT.
1.
Remove the battery cover by pressing down while sliding
outward.

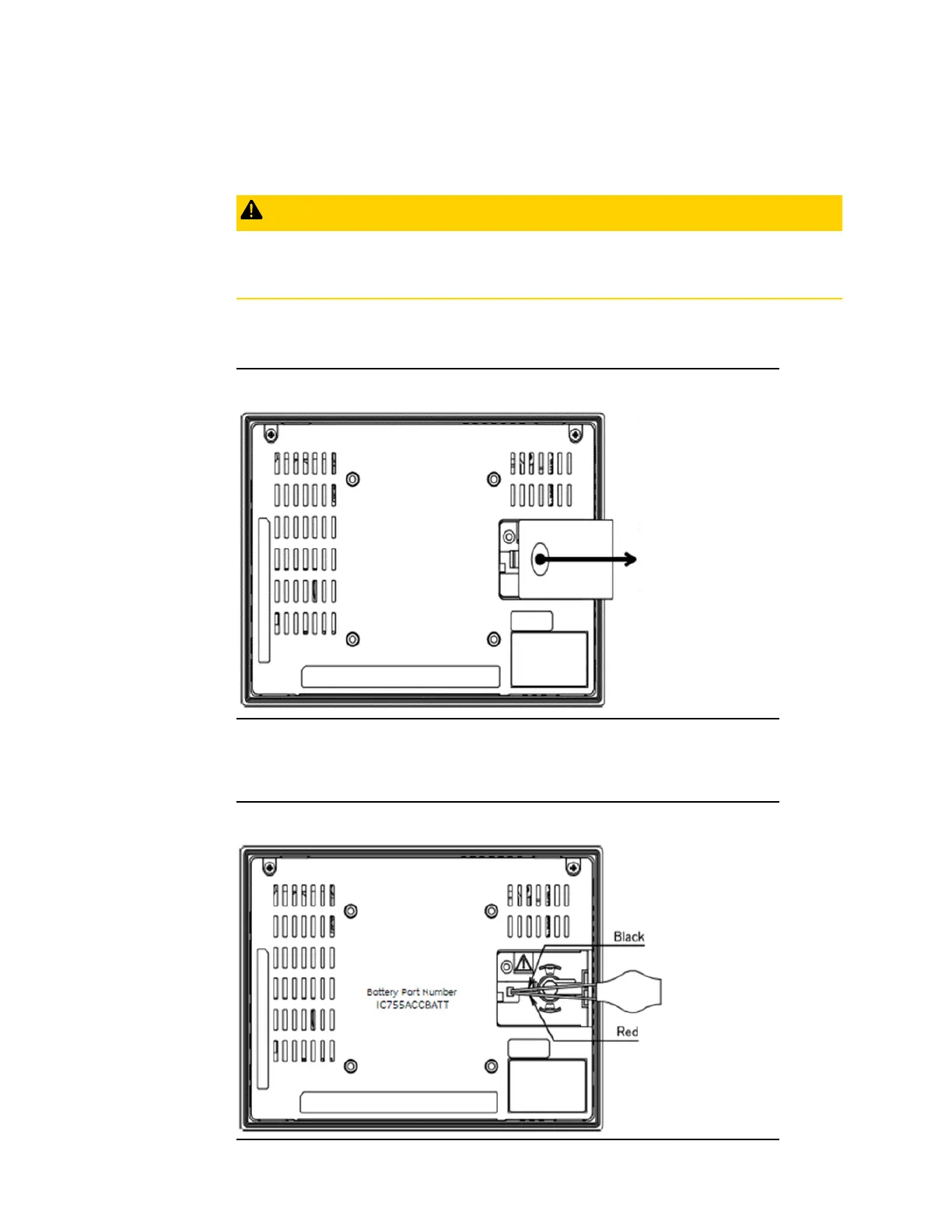

Figure 64: Battery Cover Removal IC755CxS06RDx
2.
Connect the battery harness connector to the header, noting
keyed orientation.
Figure 65: Battery Harness Connection IC755CxS06RDx
