Quick Panel Operator User Manual Section 1
GFK-2847AA Jan 2023
Overview 1
Section 1: Overview
Note: This manual specifically describes the QuickPanel
+
IC755CxS06RDx, IC755CxWxxCDx and
IC755CxSxxCDx display units.
The QuickPanel
+
Operator Interface is an all-in-one micro-computer
designed for maximum flexibility. The design is based on an Advanced
RISC Machine (ARM) core micro-processor to combine a high-resolution
touchscreen operator interface with a variety of communications options.
Users can connect to most industrial equipment using the QuickPanel
+
communications ports.
The QuickPanel
+
is equipped with several memory types to satisfy the
most demanding applications. A section of Dynamic Random Access
Memory (DRAM) is split between the operating system, an object store,
and application memory. Additionally, a section of Non-volatile Random
Access Flash Memory (NOVRAM), functioning as a virtual hard drive, is
divided between the operating system and persistent storage for
application programs. Retentive memory is a battery-backed Static
Random Access Memory (SRAM) to store and protect data during a power
failure.

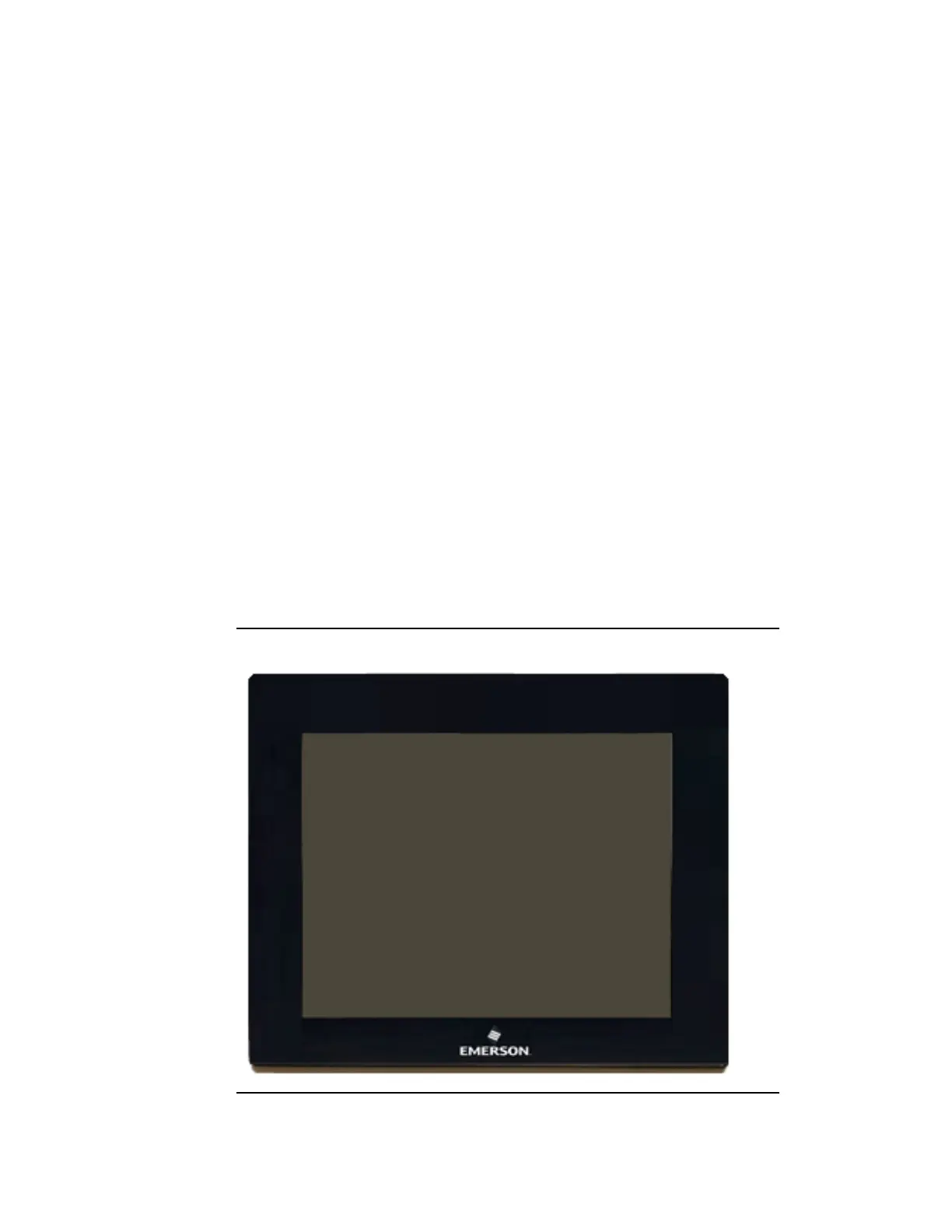

Figure 1: QuickPanel
+
Operator Interface Display
