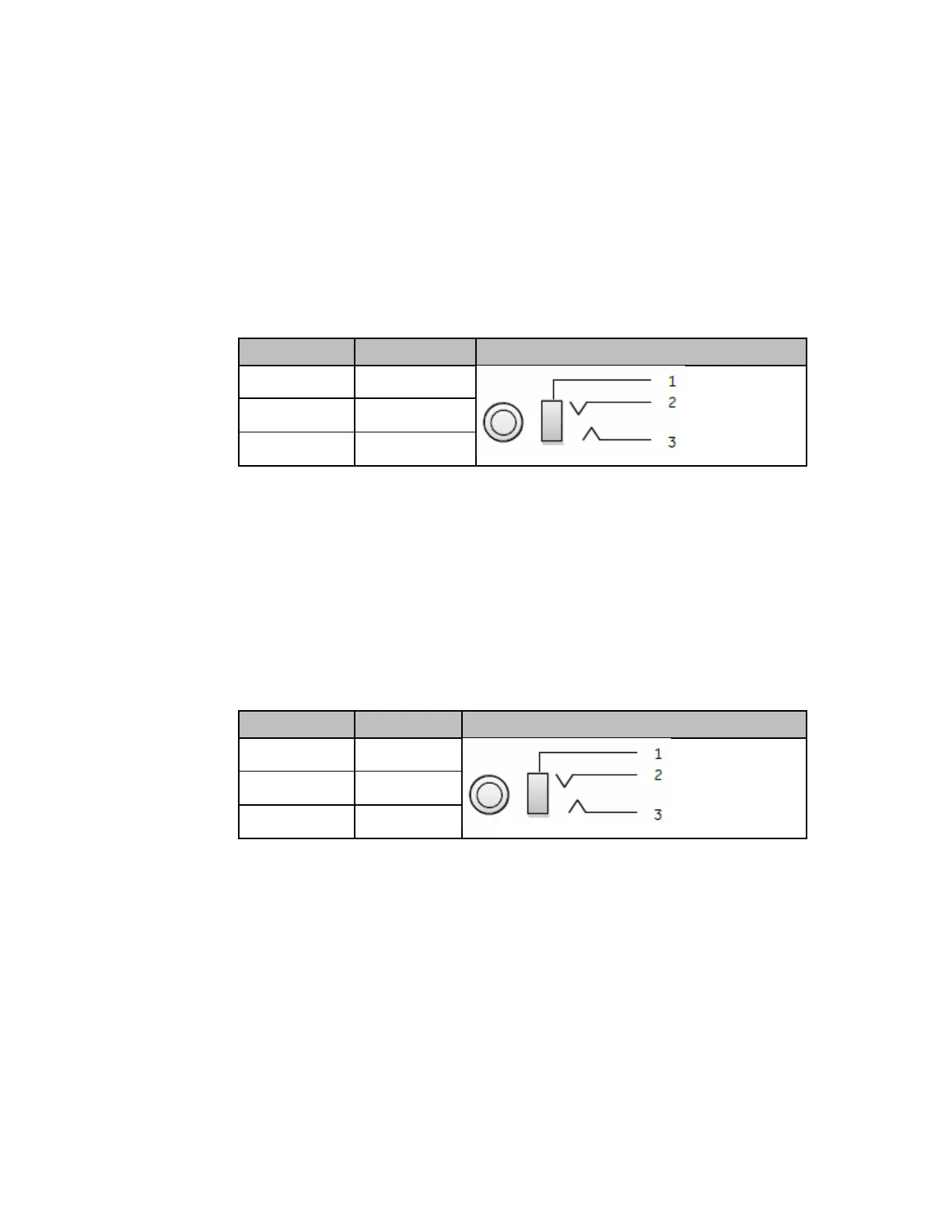

5.7.5 Audio (LINE OUT) Details for IC755CxS06RDx,
IC755CxW07CDx, and IC755CxSxxCDx
Interface: LINE OUT (stereo)
Number of Ports: One
Connectors: Ø3.5 mm jack
Maximum output level: 1 Vrms
Pin #
Signal Name
Pin-Out
1
GND
2
Lineout R
3
Lineout L
5.7.6 Audio (MIC IN) Details (Applicable only to
IC755CxS06RDx and IC755CxW07CDx)
Interface: MIC IN (monaural)
Number of Ports: One
Connectors: Ø 3.5 mm jack
Maximum output level: 250 mVrms
Pin #
Signal Name
Pin-Out
1
GND
2
Lineout R
3
Lineout L
