Quick Panel Operator User Manual Section 2
GFK-2847AA Jan 2023
Hardware 15

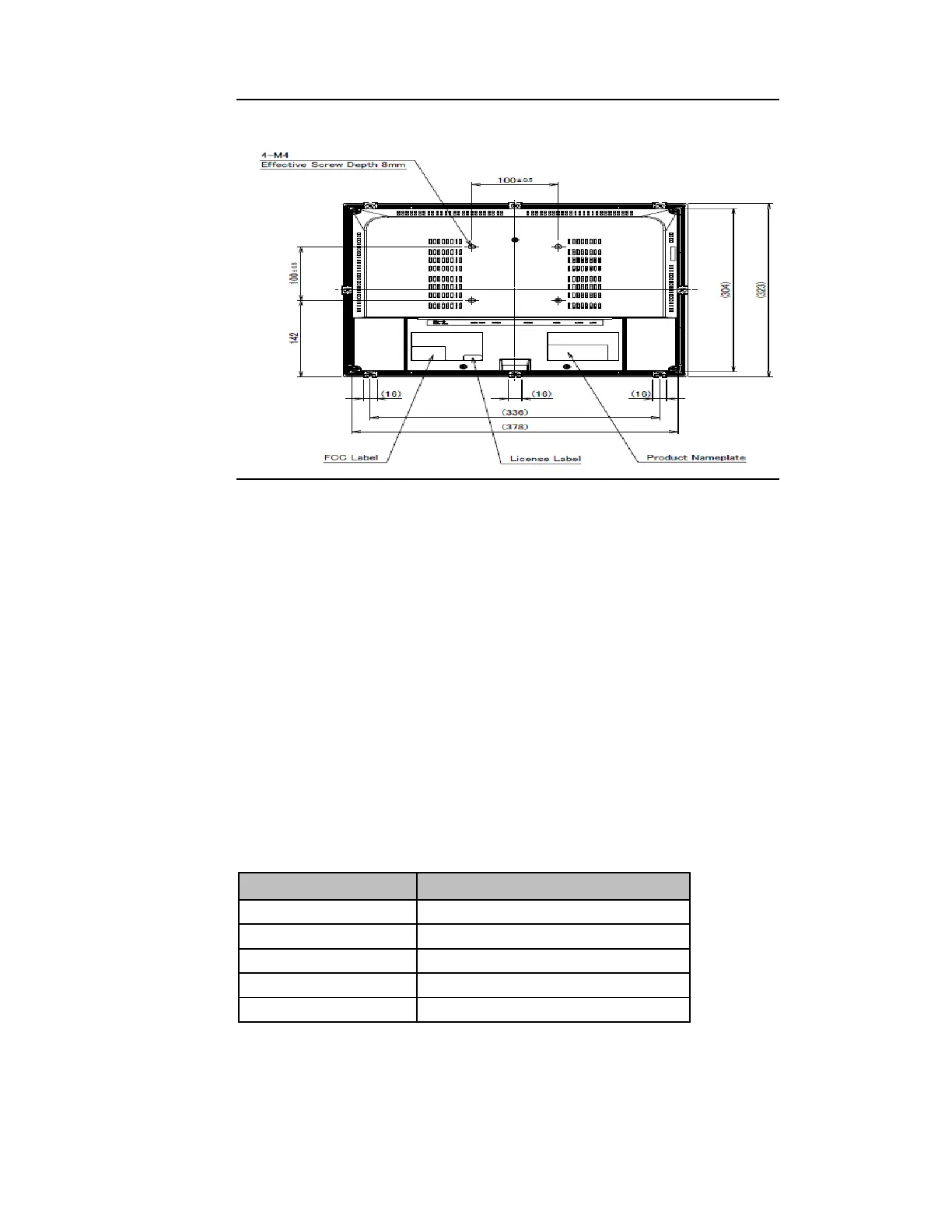

Figure 11: Rear View IC755CxS15CDx
Note: Refer to the section IC755CxS15CDx Specifications for drawing dimensions.
2.2 LED Indicators
The QuickPanel
+
Operator Interface provides LED indications for the
following:
• Operation status
• Ethernet Port operation
2.2.1 Operation Status LEDs
The QuickPanel
+
has one tri-color LED that provides visual operation
status indication for IC755CxS06RDx, IC755CxW07CDx, the and
IC755CxSxxCDx units.
LED State
QuickPanel
+
State
Amber, solid
Operating system starting
Green, solid
Normal operating state
Green, blinking
Backlight off
Red, blinking
Backlight failure
Off
Power not applied to unit
