Quick Panel Operator User Manual Section 2
GFK-2847AA Jan 2023
Hardware 14

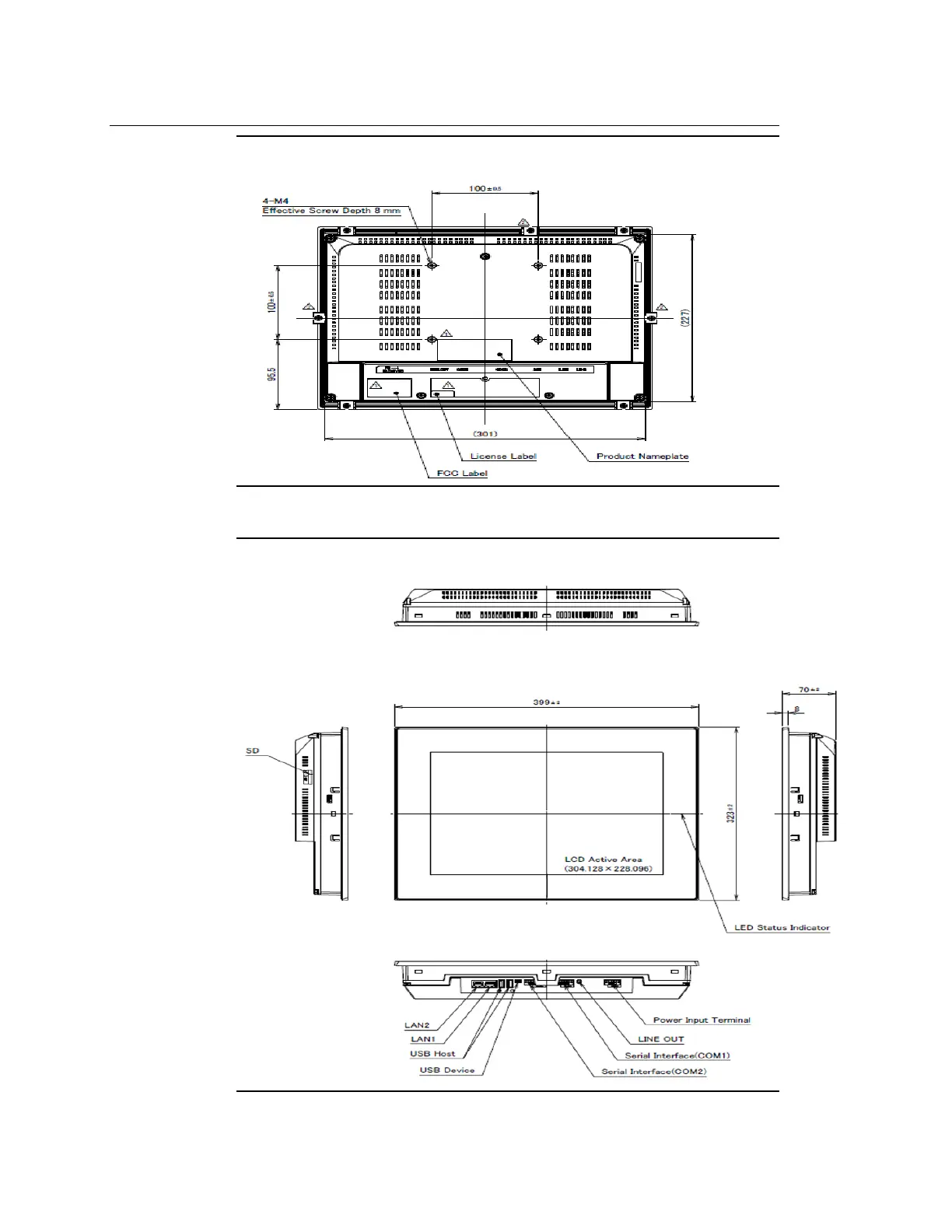

Figure 9: Rear View IC755CxS12CDx
Note: Refer to the section IC755CxS12CDx Specifications for drawing dimensions.
Figure 10: 4-Sided View IC755CxS15CDx
