Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 61

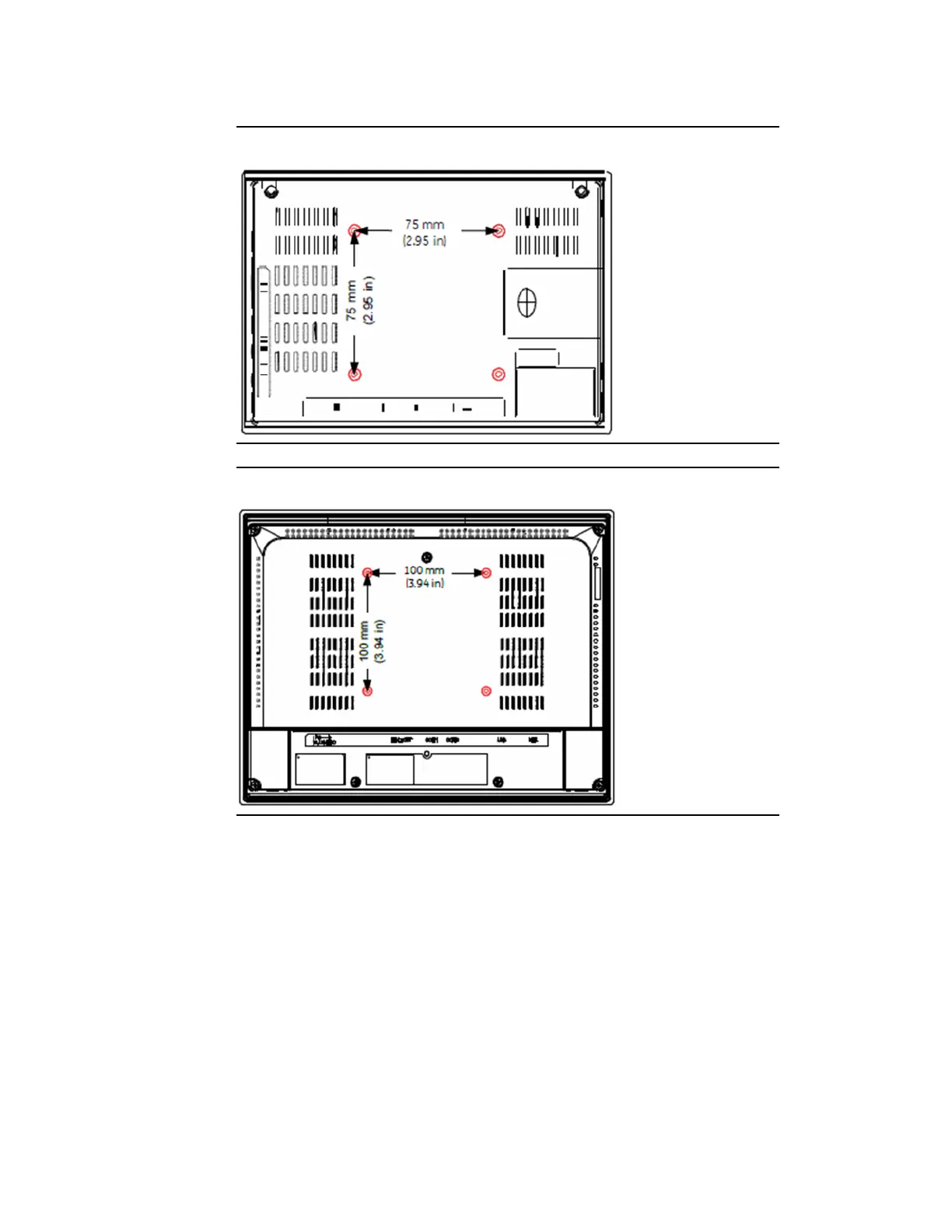

Figure 62: VESA Mounting Holes IC755CxW07CDx or IC755CxS06RDx
Figure 63: VESA Mounting Holes IC755CxSxxCDx
