Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 71
IC755CxW07CDx
Adhere to the following guidelines:
•
A terminal block is supplied with the unit.
•
The mating terminal block supports stranded 30 to 14 AWG (0.05 to
2.00 mm2) wires.
•
At a minimum, the cable must be rated for 75°C (167°F), or more.
•
Secure the serial cable to the mating connector while noting signal
orientation and tighten the screw clamps.
•
The torque for the attaching screws is 0.3 Nm (2.66 in-lb.).

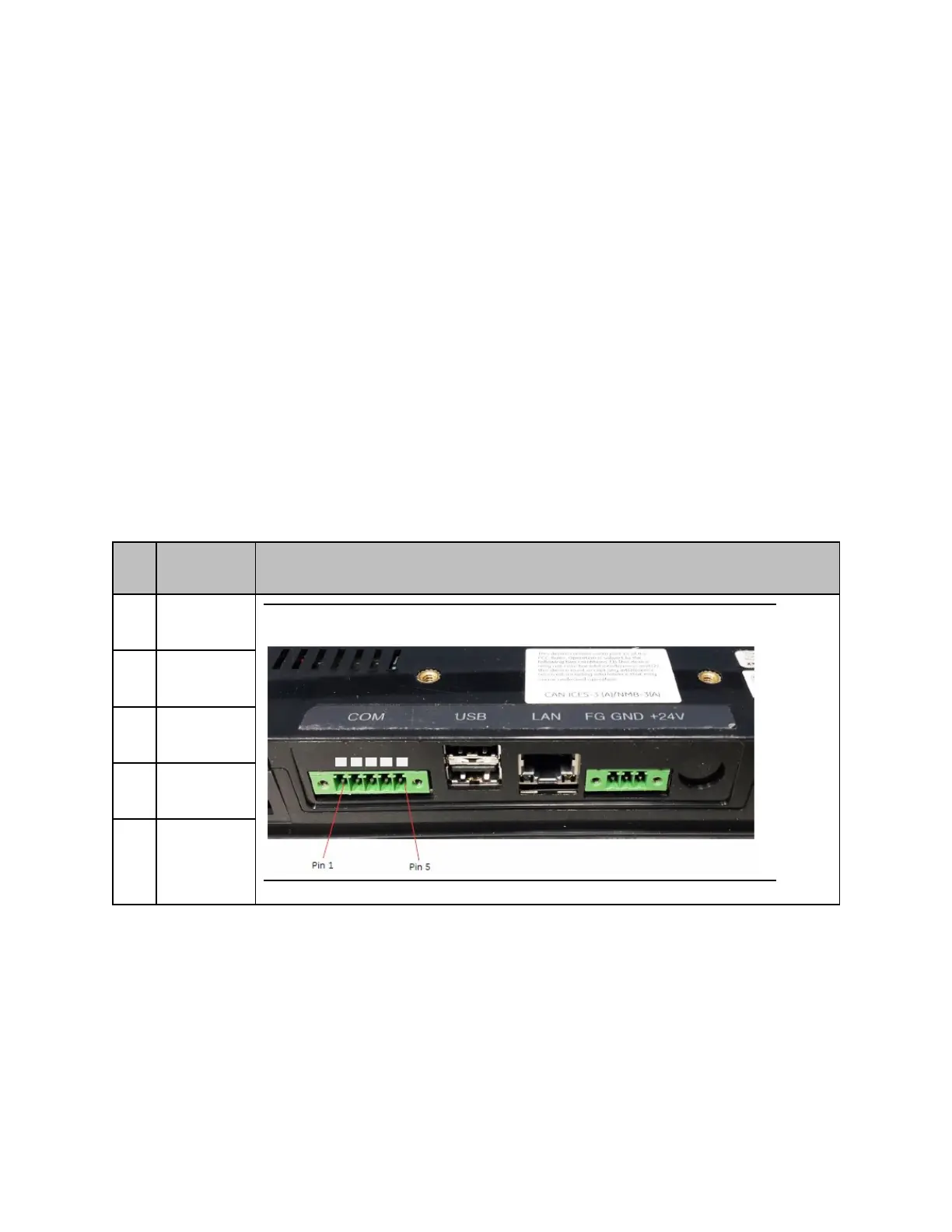

Serial Port COM1 Details
Interface: x1 RS-232
Connector: Euro Terminal (Tyco Electronics 284539-5)
Mating Connector: (Tyco Electronics 284510-5)
