Emerson QuickPanel+ IC755CxS06RDx - Page 80

Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 74
DIP Switch Settings COM2 for RS-422
DIPSW
Bit
ON/OFF
DIPSW
Bit
ON/OFF
SW2
1
OFF
SW4
1
ON
2
OFF
2
ON
3
OFF
3
OFF
4
OFF
4
OFF
5
ON
5
ON
6
ON
6
ON
7
OFF
7
OFF
8
ON
8
OFF
SW3
1
OFF
SW5
1
OFF
2
ON
2
OFF
3
OFF
3
OFF
4
OFF
4
OFF

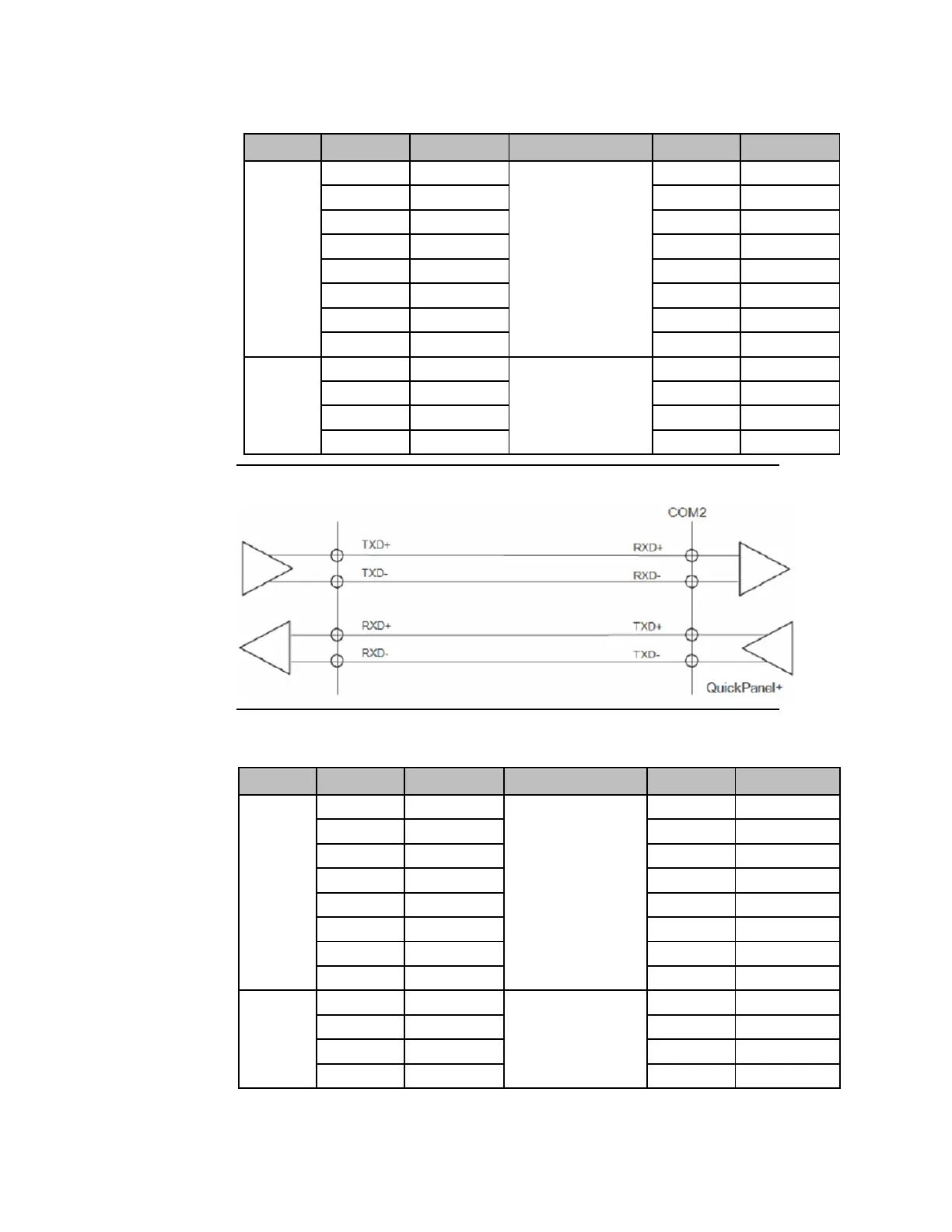

Figure 77: Example of Full-Duplex (RS–422 Mode) Connection
DIP Switch Settings COM2 for RS-485
DIPSW
Bit
ON/OFF
DIPSW
Bit
ON/OFF
SW2
1
OFF
SW4
1
ON
2
OFF
2
ON
3
ON
3
ON
4
OFF
4
ON
5
ON
5
ON
6
ON
6
ON
7
OFF
7
OFF
8
ON
8
OFF
SW3
1
OFF
SW5
1
OFF
2
ON
2
OFF
3
OFF
3
OFF
4
ON
4
OFF
