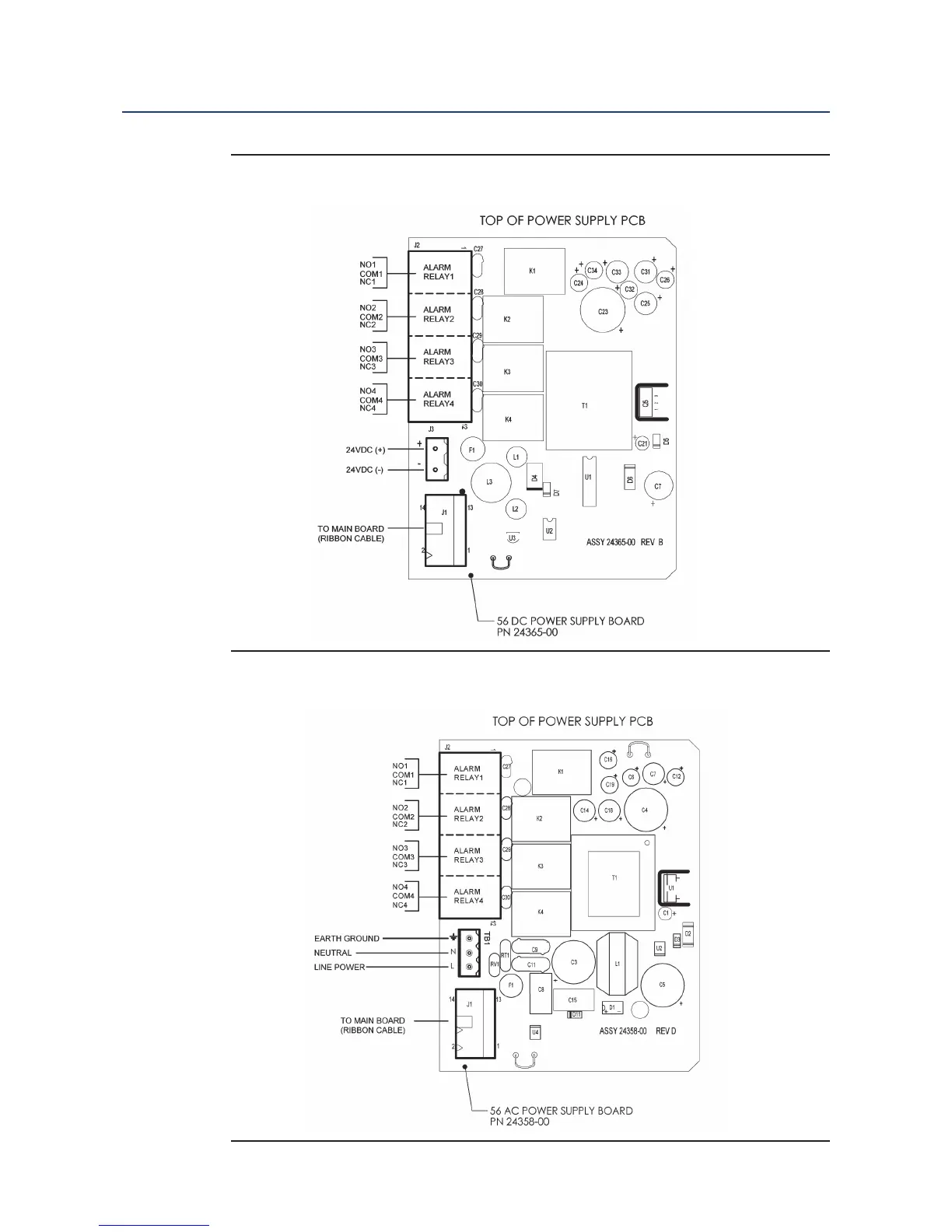

FIGURE 3-1 Power Wiring for 56 24 VDC Power Supply (-02 order code) PN 24365-00
24 Wiring
Section 3: Wiring Instruction Manual
April 2017 LIQ-MAN-56
FIGURE 3-2 Power Wiring for 56 85-264 VAC Power Supply (-03 order code)
PN 24358-00
