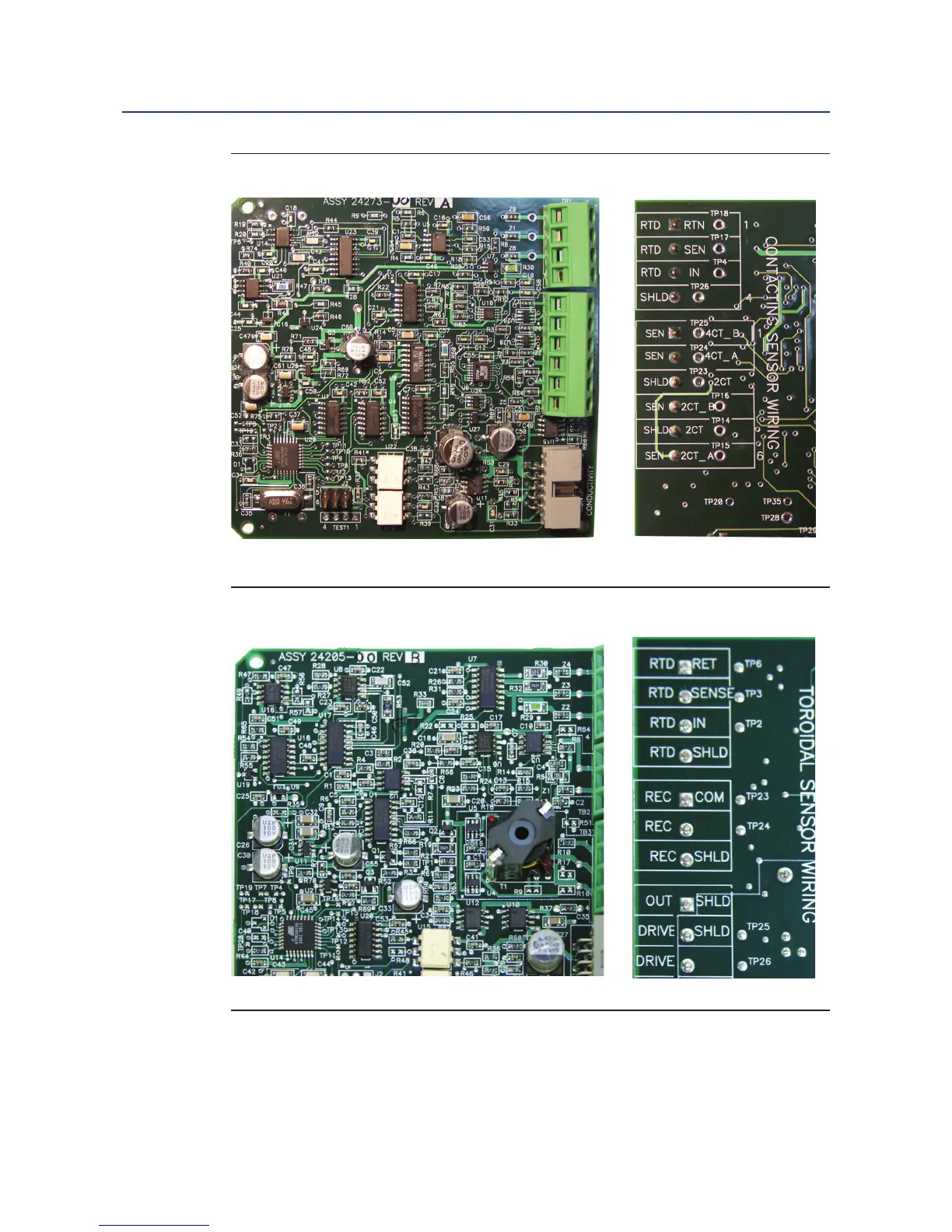

Figure 3-6 Contacting Conductivity signal board and Sensor Cable Leads
Figure 3-7 Toroidal Conductivity Signal board and Sensor Cable Leads
Wiring 27
Instruction Manual Section 3: Wiring
LIQ-MAN-56 April 2017
