12 Commander SK Getting Started Guide
www.controltechniques.com Issue Number: 9

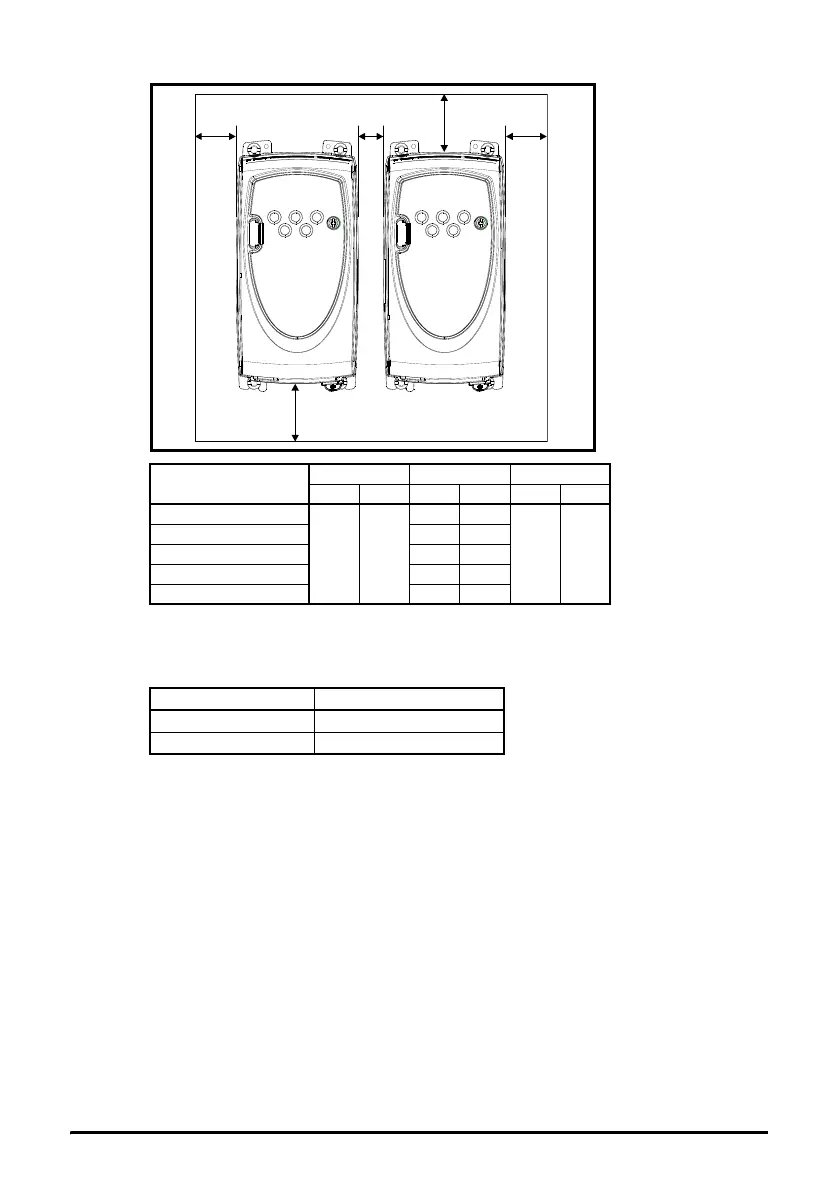

Figure 3-4 Minimum mounting clearances
*This is the minimum spacing between drives at the base of the drive where it is
mounted against a back plate.
Table 3-2 Tightening torque for mounting feet
Drive size
ABC
mm in mm in mm in
A
10 0.39
00
100 3.94
B (≤0.75kW) 10* 0.39*
B (≥1.1kW) or B (110V) 0 0
C 50* 1.97*
D00
Drive size Tightening torque
A to C 1.3 to 1.6 Nm
D 2.5 to 2.8 Nm
