S4K2UC SERIES USER MANUAL | 11
Input Power Plug
and Cable 5-15P
External
Battery
Connector
Terminal Block
Communication
USB Port
Input Circuit
Breaker
Output
Receptacles,
5-15R
700 VA, 1000 VA, 1500 VA Models
Input Power Plug
and Cable, 5-20P
External
Battery
Connector
USB Port
Input Circuit
Breaker
Output
Receptacles,
5-15/20R
2000 VA Model
Input Power Plug
and Cable, L5-30P
USB Port
External
Battery
Connector
Input Circuit
Breaker
Output Receptacles,
5-15/20R
Output
Circuit
Breakers
3000 VA Model
IntelliSlot
Port
IntelliSlot
Port
IntelliSlot
Port
Terminal Block
Communication
Terminal Block
Communication
Output Receptacle,
L5-30R
Cooling
Fan
Cooling
Fan
Cooling
Fan

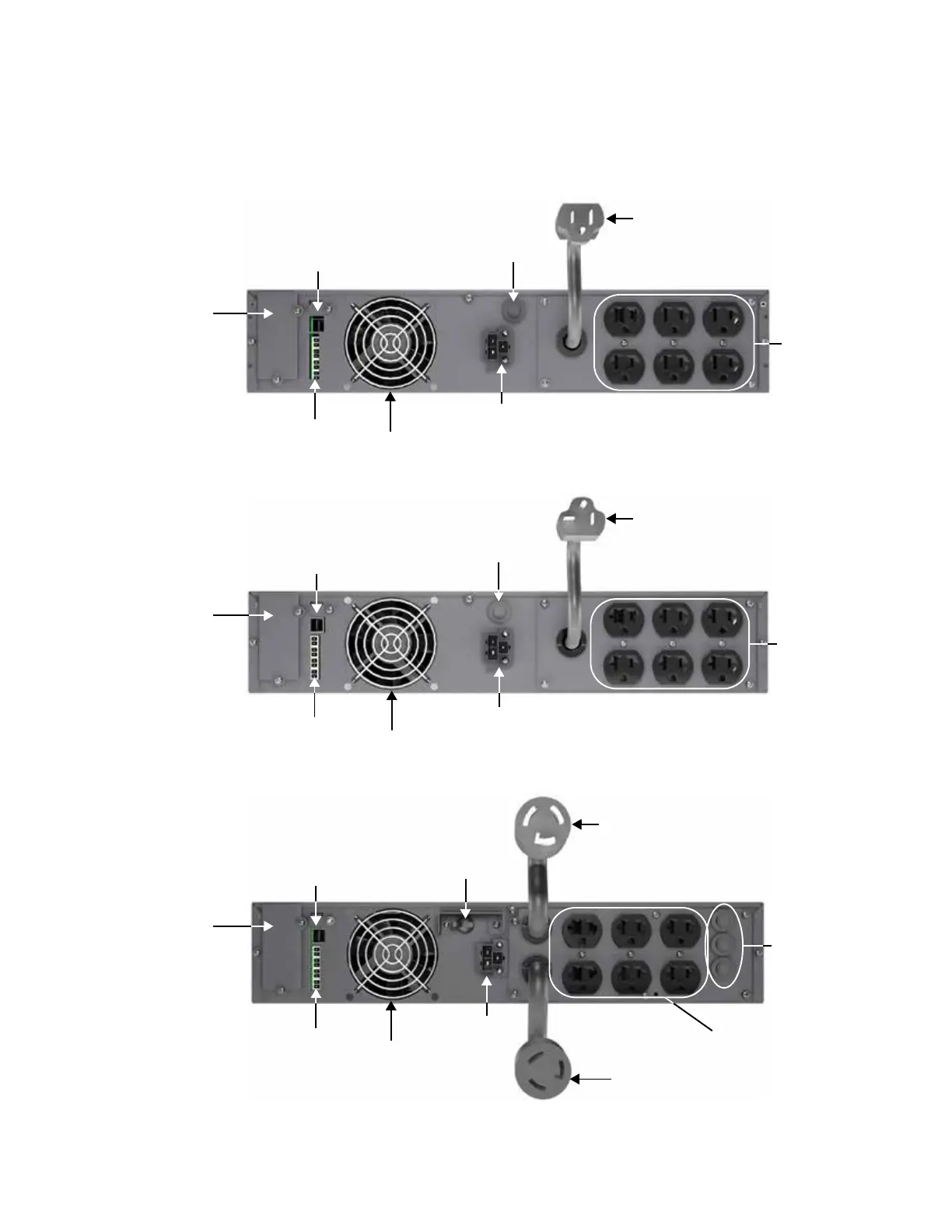

Figure 2: S4K2UC 120 V rack/tower models—rear panel components
