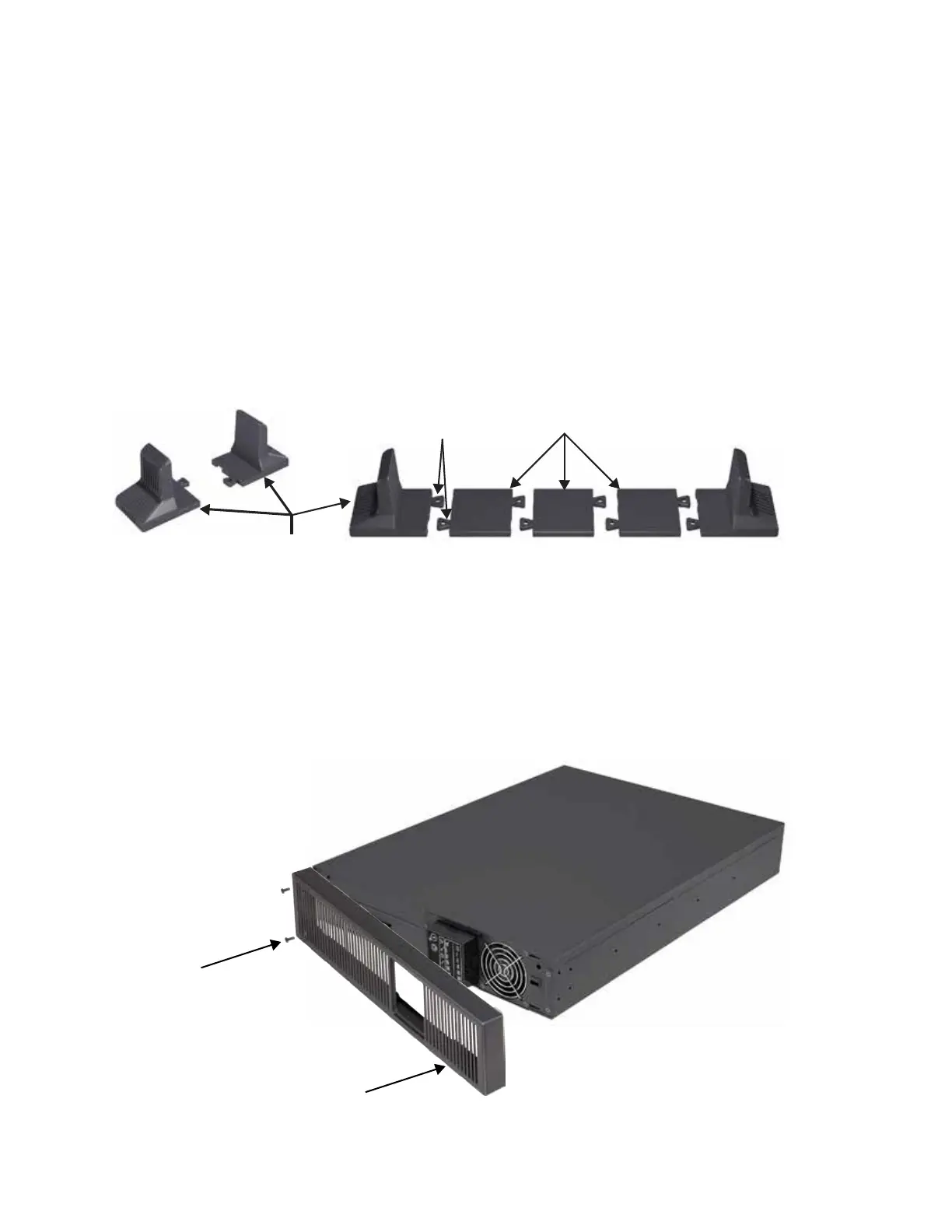

16 | 2.0 Installation
2.4 Mechanical Installation
The S4K2UC may be installed as a tower or in a rack, depending on space and use considerations. The S4K2UC may be
used alone, as a single UPS, or with up to four battery cabinets.
NOTE: When installing the UPS or making input/output connections, comply with all relevant safety codes and standards.
2.4.1 Tower Installation
To install the S4K2UC as a tower:
1. Take out support bases from the accessories (see Figure 4).
Support Bases
Spacers
Connectors
Figure 4: Support bases
2. If optional external battery cabinets will be connected to the UPS, take out the spacers shipped with the battery
cabinet.
3. Connect the spacers and the support bases as shown in Figure 4. Each S4K2UC needs two assembled support bases,
one in the front and one in the rear.
4. Adjust the direction of the operation and display panel on the S4K2UC.
a. Remove the front metal bezel cover as shown in Figure 5.
Front Metal Bezel Cover
Screws (2 pcs)
Figure 5: Remove the front metal bezel cover
