b. Using the nger grips on the display panel, gently pull and rotate 90 degrees clockwise and snap it back into posi-

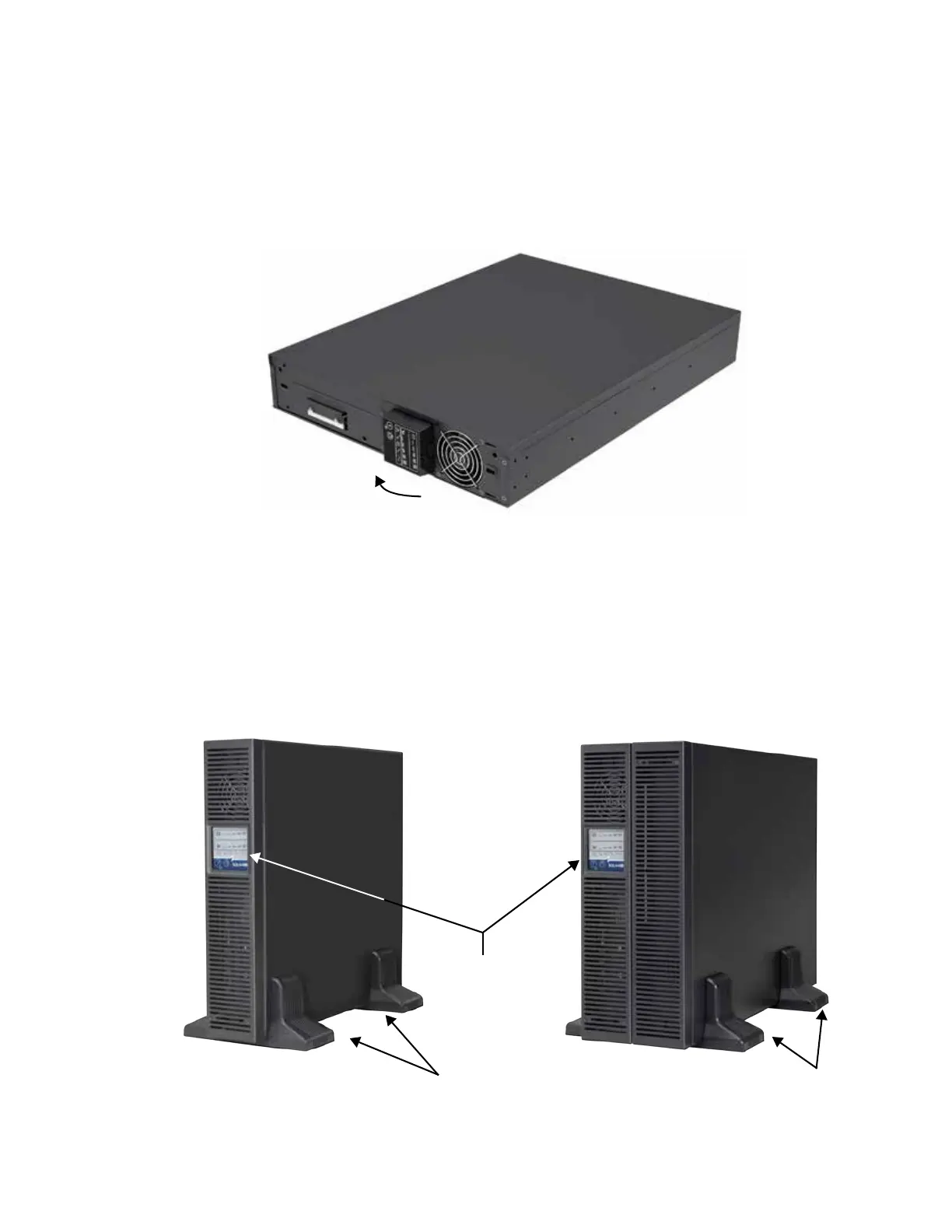

tion as shown in Figure 6.
Operation and Display Panel
Rotated Clockwise 90 Degrees
Figure 6: Rotate the operation and display panel
c. Replace the front metal bezel cover on the S4K2UC. At this point, the UPS operation and display panel has been
rotated 90 degrees clockwise, which provides upright viewing for users.
5. Place the S4K2UC and any battery cabinets on the support bases. Each S4K2UC needs two support assemblies as
shown in Figure 7.
Operation and
Display Panel
Rotated for
Tower Operation
Support Bases
Support Bases
S4K2UC UPS
S4K2UC UPS and
External Battery Cabinet
Figure 7: Tower installation
To Next Page
