S4K2UC SERIES USER MANUAL | 19
5. Extend the slide rail assembly by sliding the front member forward until it touches the rack’s front vertical rails
(adjustable length: 18–32 inches/457–813 mm). Use two M5 screws to x each front member onto the front vertical
rails through the installation holes. Make sure that slide rail assemblies are at the same mounting height on all four
rack rails, as shown in Figure 10.
Rear
Member
Front
Vertical
Pole
Front
Member
M5 Screw
(4 pcs)
Slide

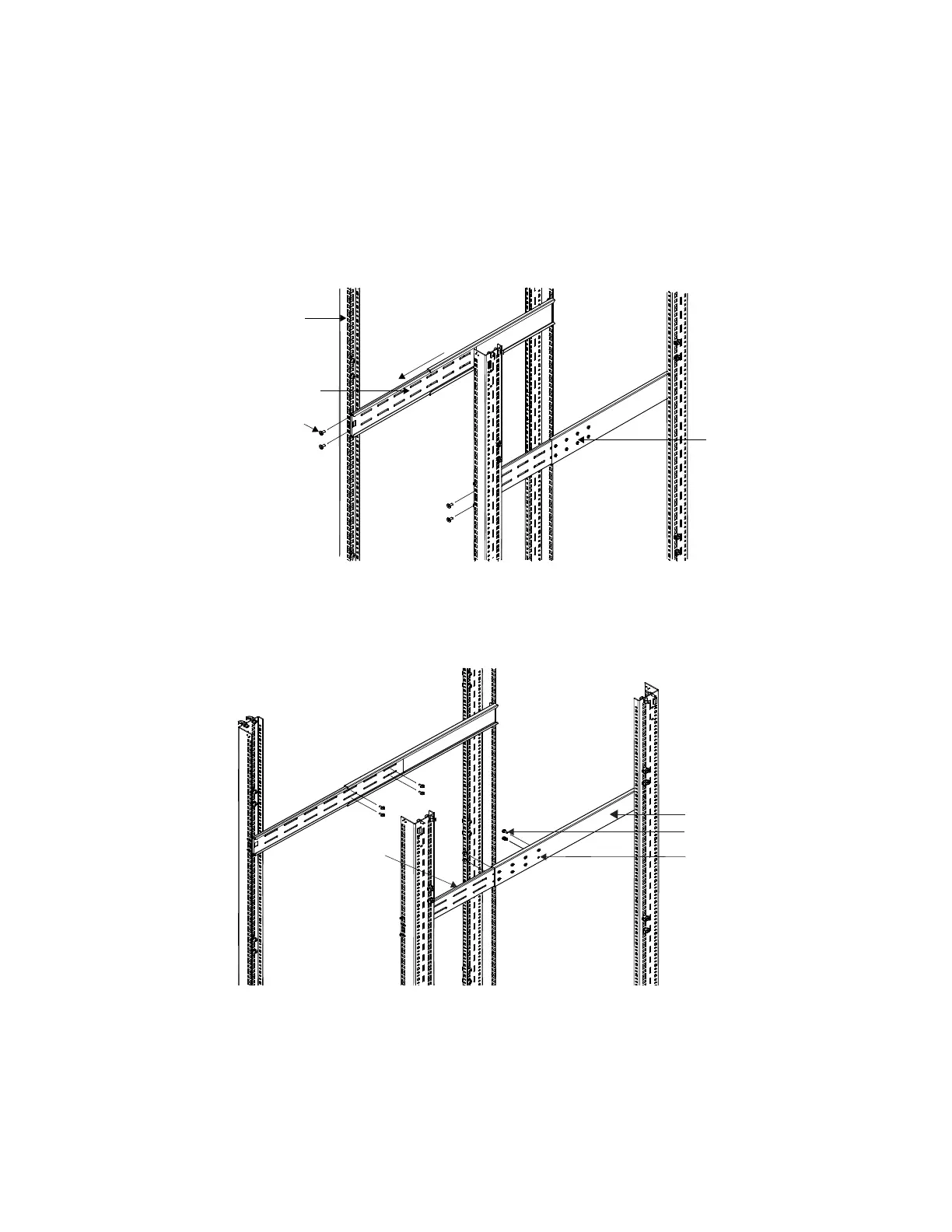

Figure 10: Installing front member of each slide rail assembly
6. Fasten rear member and front member together using four M4 screws and four M4 nuts (M4 nuts have been installed
on the rear member before delivery) per slide rail assembly as shown in Figure 11.
M4 Screw (8 pcs)
Rear Member
Front member
M4 Nut (8 pcs)
Figure 11: Fastening rear member and front member together
To Next Page
