S4K2UC SERIES USER MANUAL | 37
4. Gently pull the battery wire out and disconnect the polarized battery connector and receptacle, as shown in Figure 29.
Battery Connector Battery Receptacle

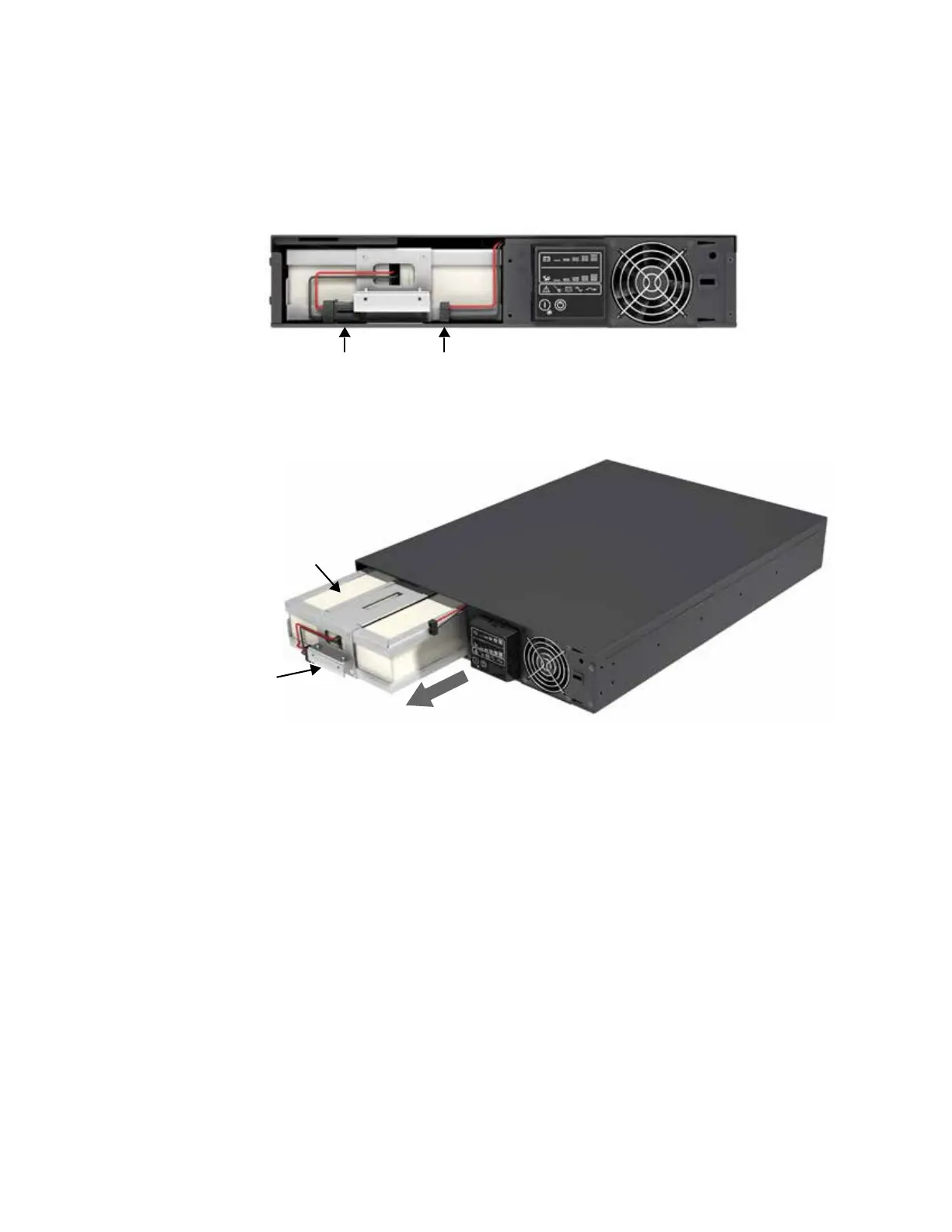

Figure 29: Disconnecting the battery connector and receptacle (front view)
5. Grasp the battery handle and pull the internal battery pack out of the UPS, as shown in Figure 30.
Internal Battery Pack
Battery
Handle
Pull Out with Battery Handle
Figure 30: Pull out the internal battery pack
6. Unpack the new internal battery pack. Take care not to destroy the packaging. Compare the new and old internal
battery packs to make sure they are the same type and model. If they are the same, proceed with Step 7; if they are
dierent, stop and contact your local SolaHD representative or SolaHD Technical Support immediately.
7. Line up and slide in the new internal battery pack.
8. Reconnect the polarized battery connector and receptacle.
9. Gently push the battery wire and internal battery pack back into the UPS.
10. Reattach the front battery door with the six screws.
11. Reattach the front metal bezel cover to the UPS.
NOTE: The internal battery pack is hot-swappable. However, caution should be exercised during this procedure because
the load is unprotected from disturbances and power outages. Do not replace the battery while the UPS is operating in
Battery Mode. This will result in a loss of output power and will drop the connected load.
