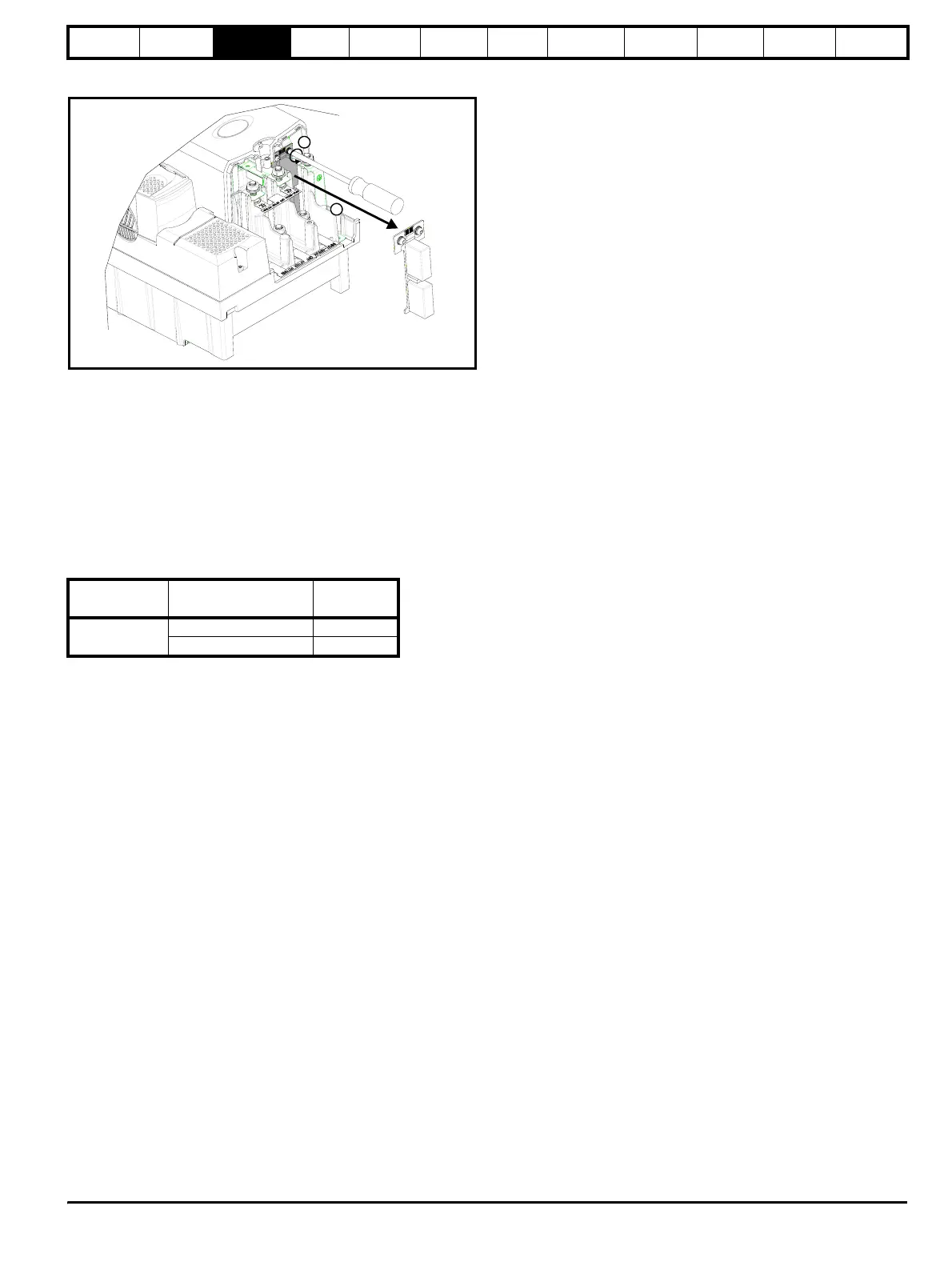

Figure 3-13 Removal of internal EMC filter (size 4 to 6 and the
SPMA/SPMD)
Loosen screws (1). Remove EMC filter in the direction shown (2).
3.10.5 External charging resistor
The following external charging resistors are available from Control
Techniques and can be used with a regen system consisting of multiple
regen, multiple motoring or single regen, multiple motoring drives. For
correct sizing of the charging resistor required, refer to section
11.2 Resistor sizing for multiple drive systems on page 204. Also, see
section 10.4.2 Softstart resistor - type TG series on page 197 for further
technical data and thermal protection information on the following
resistors.
Table 3-25 External charging resistors
Drive
External charging
resistor part no.
Ω
All sizes
1270-3157 150
1270-2483 48
1
2
