Unidrive SP Regen Installation Guide 47
Issue Number: 2 www.controltechniques.com

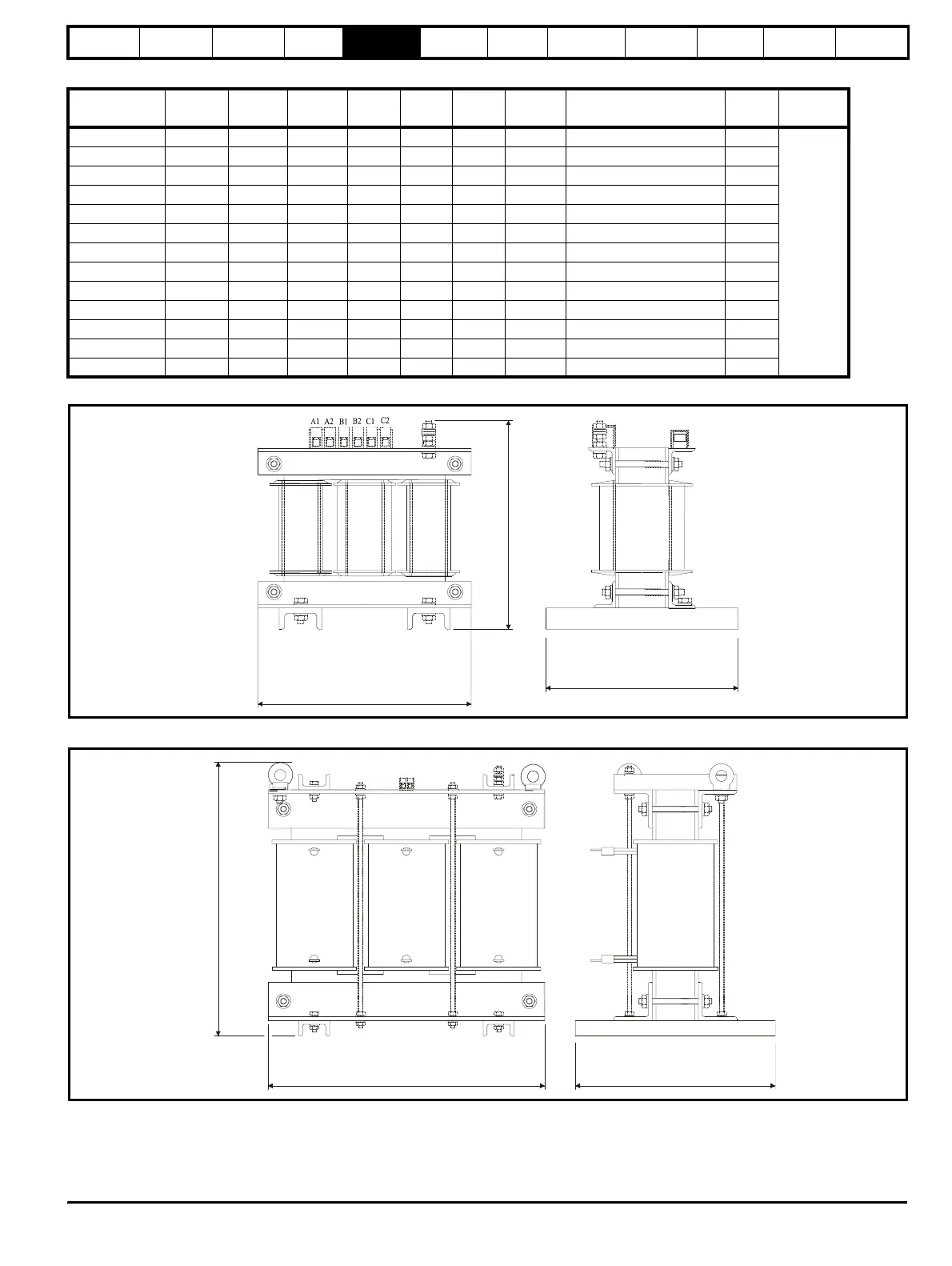

Table 5-3 575V / 690V Regen inductor specifications
Figure 5-2 Regen inductor type 1 dimensions
Figure 5-3 Regen inductor type 2 dimensions
Inductor part
number
Amps mH
Losses
W
L
mm
D
mm
H
mm
Weight
kg
Fixing centres (x * y)
mm
Fixing
mm
Fixing
type
4401-0210 19 5.3 268 325 220 320 32 200 x 180 11
A
4401-0211 22 4.6 288 325 220 320 33 200 x 180 11
4401-0212 27 3.8 322 325 220 320 39 200 x 180 11
4401-0213 36 2.8 348 370 260 360 55 240 x 220 11
4401-0214 43 2.4 398 375 280 360 65 240 x 240 11
4401-0215 52 1.9 456 395 280 360 77 240 x 240 11
4401-0216 63 1.6 503 395 280 360 97 240 x 240 11
4401-0217 85 1.20 605 430 300 410 110 280 x 260 11
4401-0218 100 1.00 950 500 350 480 170 320 x 260 11
4401-0219 125 0.80 880 490 320 480 130 320 x 260 11
4401-0220 144 0.70 1022 500 320 480 140 320 x 260 11
4401-0221 168 0.60 1656 555 300 480 165 320 x 240 11
4401-0222 192 0.53 1350 600 350 480 180 320 x 260 11
H
L
D
A1
B1
C1
A2
B2
C2
A2 B2 C2
A1 B1 C1
H
LD
TH
